Section 49 (Sliding Roof)
>>
Sliding Roof Housing
>>
Components
Sliding Roof Housing: Components
WARNING:
This page is about a different car, the 2006 Lexus GS 430 and 2006 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

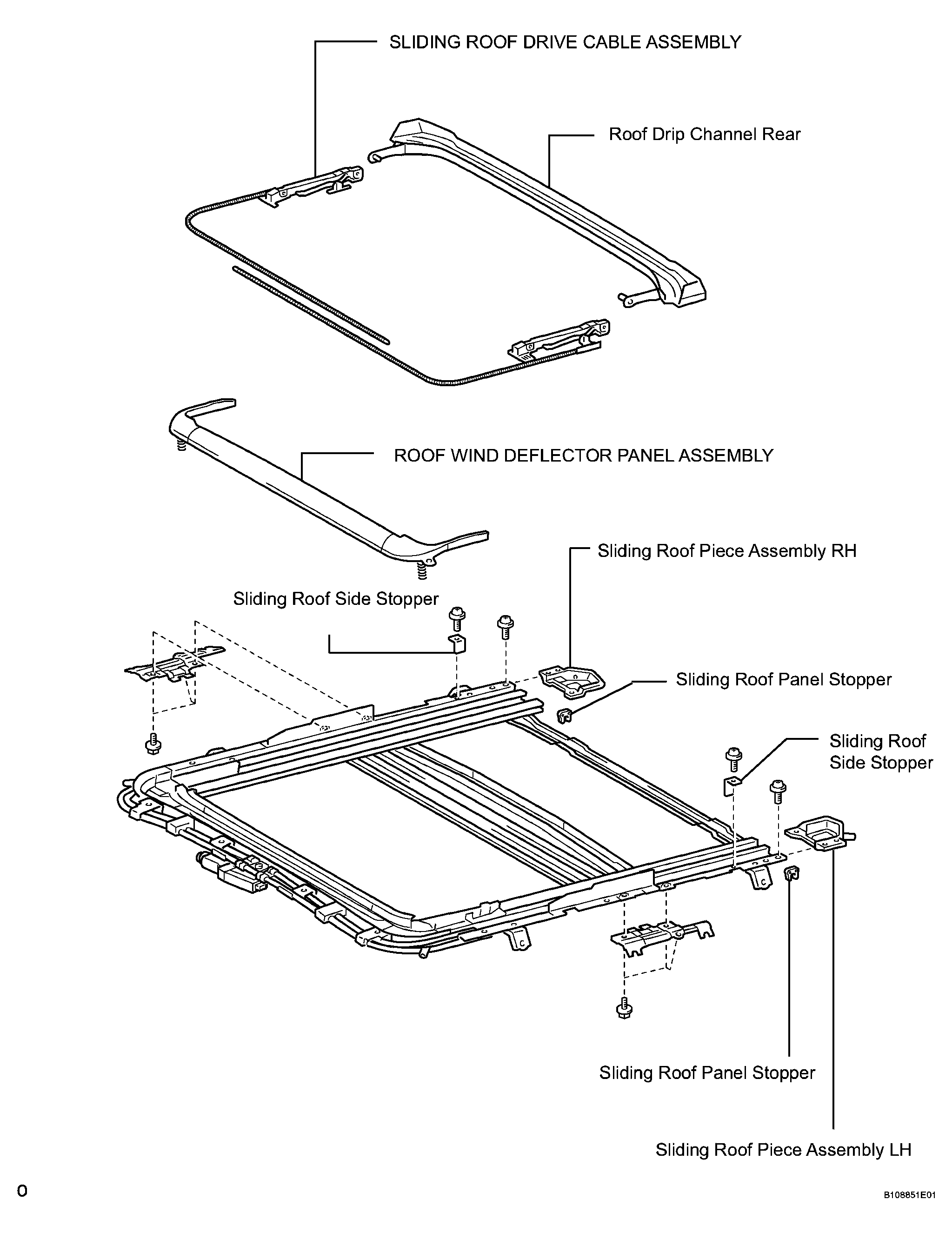

Fig 1: Identifying Sliding Roof Housing Components (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Sliding Roof Housing Components (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

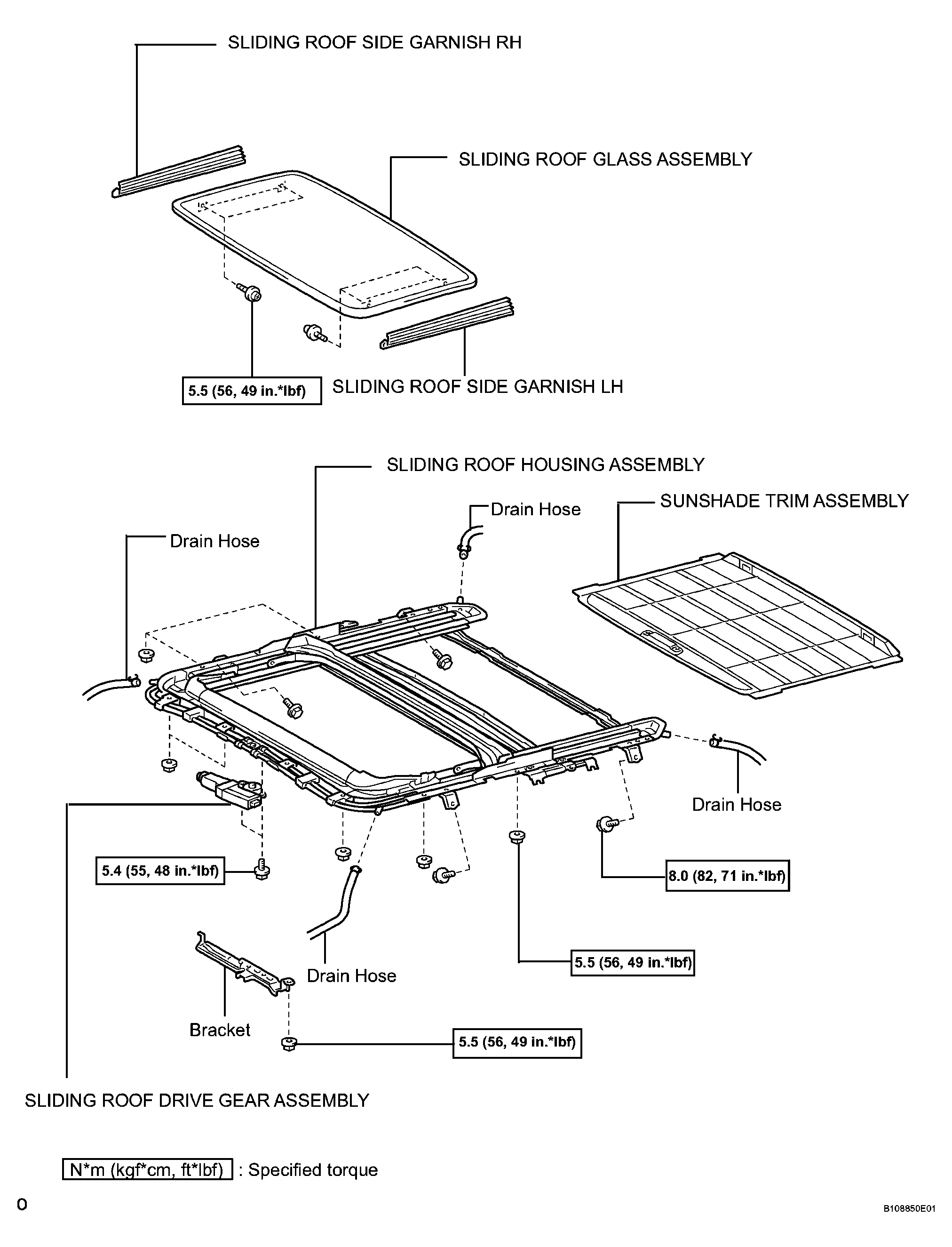

Fig 3: Sliding Roof Housing Replacement Components With Torque Specifications (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

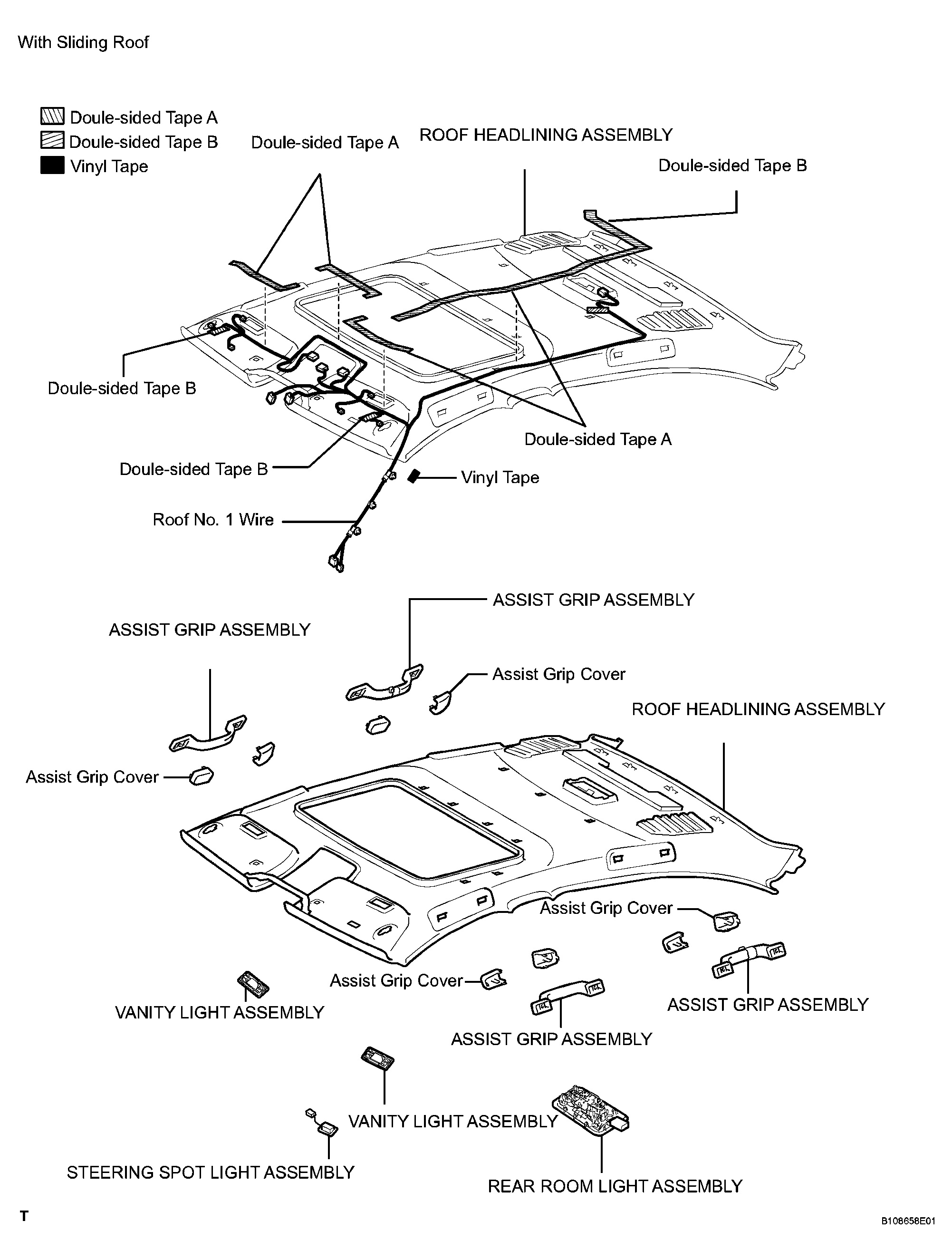

Fig 4: Identifying Sliding Roof Housing Components (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
