Rear Combination Light Assembly: Installation

HINT:

• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.

1. INSTALL REAR LIGHT ASSEMBLY
   1. Install the gasket to the light.
   2. Install the light bulb to the light socket and wire.
   3. Install the light bulb socket and wire to the rear light.

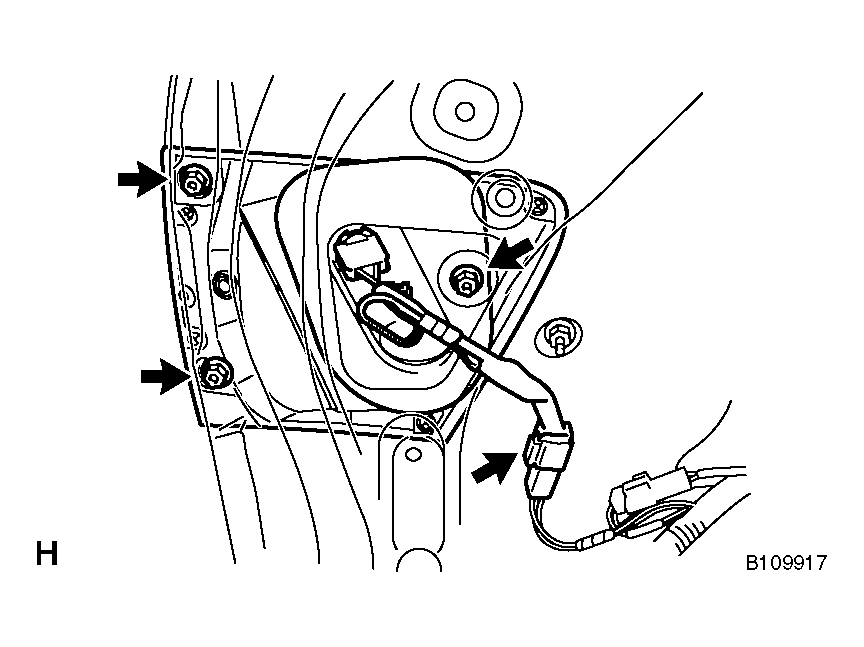

   4. Install the light with the 3 nuts.
   5. Connect the connector.
      Fig 1: Identifying Light Bulb To Light Socket And Wire

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. INSTALL REAR COMBINATION LIGHT ASSEMBLY
   1. Install the gasket to the combination light.
   2. Install the light bulb to the light socket and wire.
   3. Install the light bulb socket and wire to the light.
      Fig 2: Identifying Light Bulb To Light Socket And Wire

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   4. Install the rear combination light with the 3 nuts.
3. INSTALL LUGGAGE COMPARTMENT TRIM COVER FRONT (See  INSTALLATION  )
4. INSTALL LUGGAGE COMPARTMENT TRIM COVER SIDE LH (See  INSTALLATION  )
5. INSTALL LUGGAGE COMPARTMENT TRIM COVER SIDE RH (See  INSTALLATION  )
6. INSTALL REAR FLOOR FINISH PLATE (See  INSTALLATION  )
7. INSTALL TOOL BOX (See  INSTALLATION  )
8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
9. PERFORM INITIALIZATION
   1. Perform initialization (see INITIALIZATION ).
      CAUTION: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
      Fig 3: Identifying Rear Combination Light With Nuts

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
