System Diagram

WARNING: This page is about a different car, the 2006 Lexus GS 430 and 2006 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

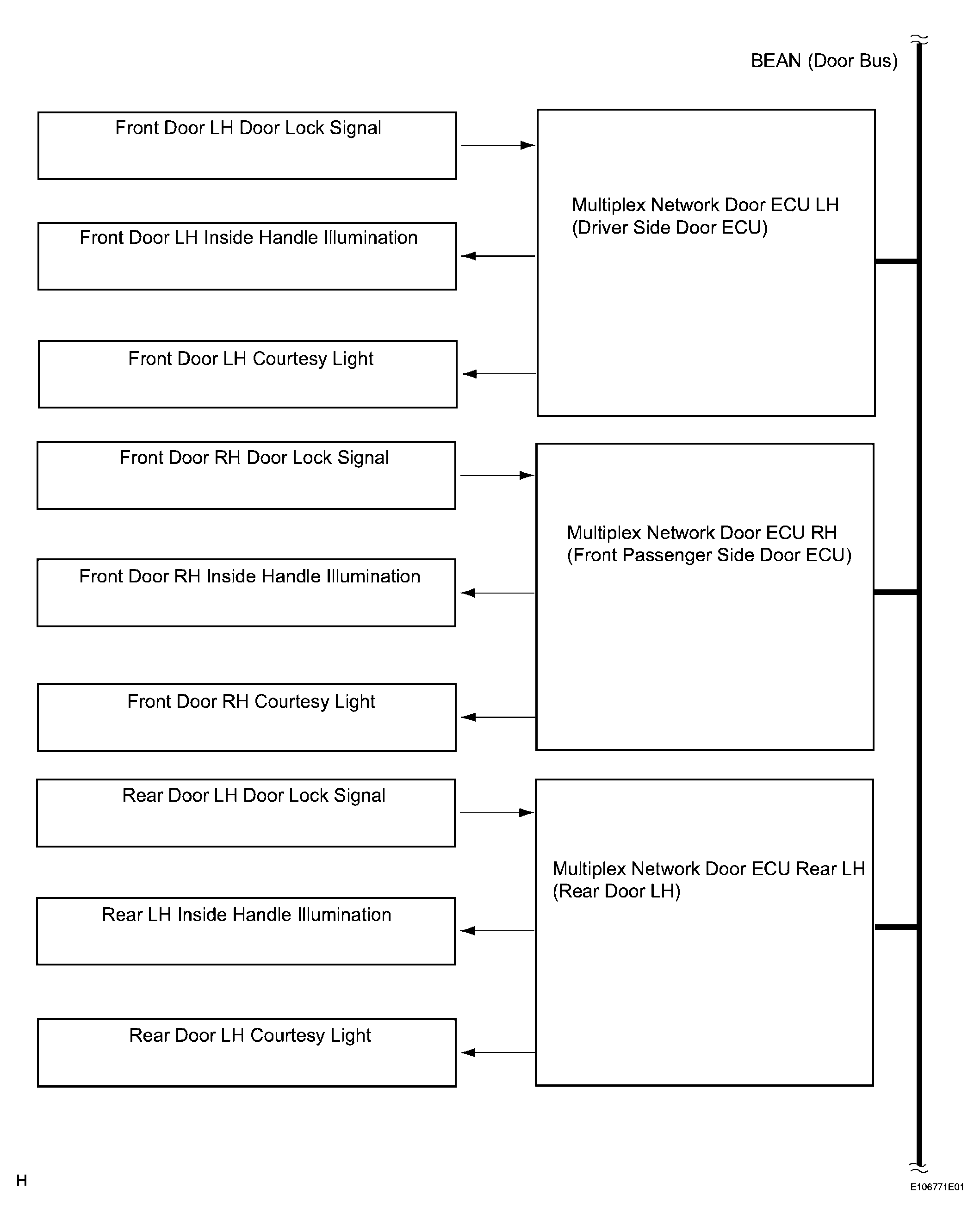

Fig 1: Lighting System Diagram - Illumination Control System (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

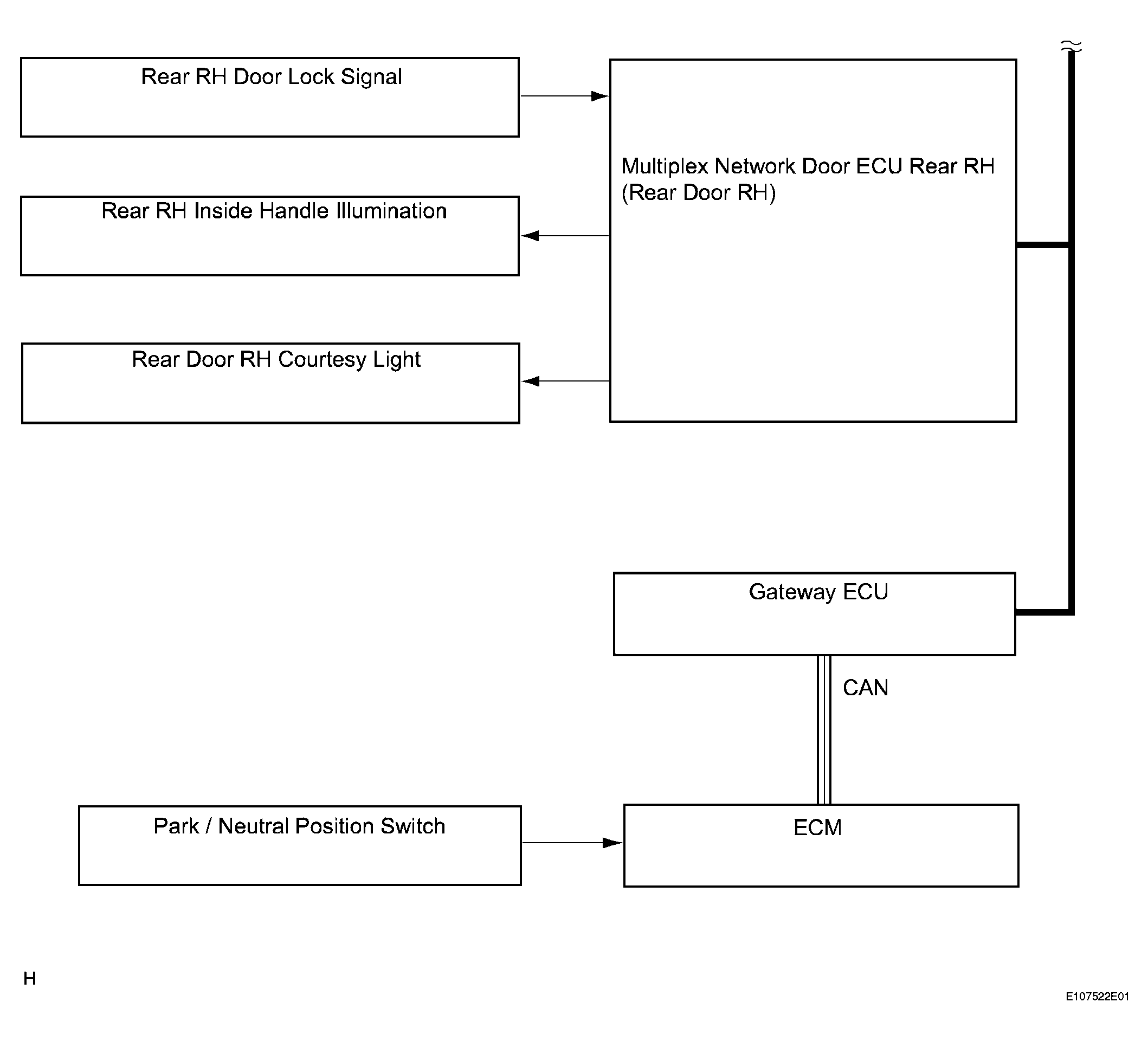

Fig 2: Lighting System Diagram - Illumination Control System (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

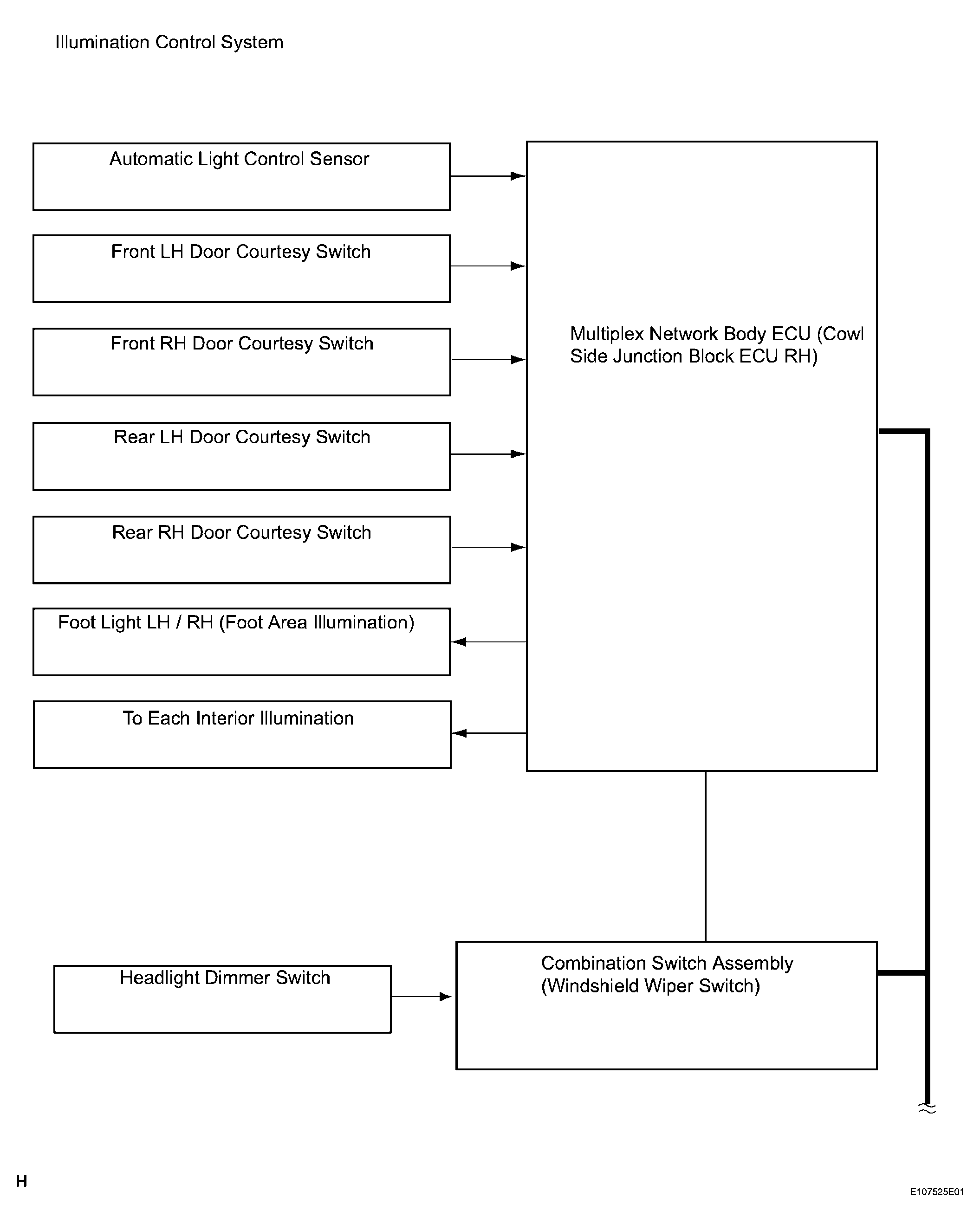

Fig 3: Lighting System Diagram - Illumination Control System (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

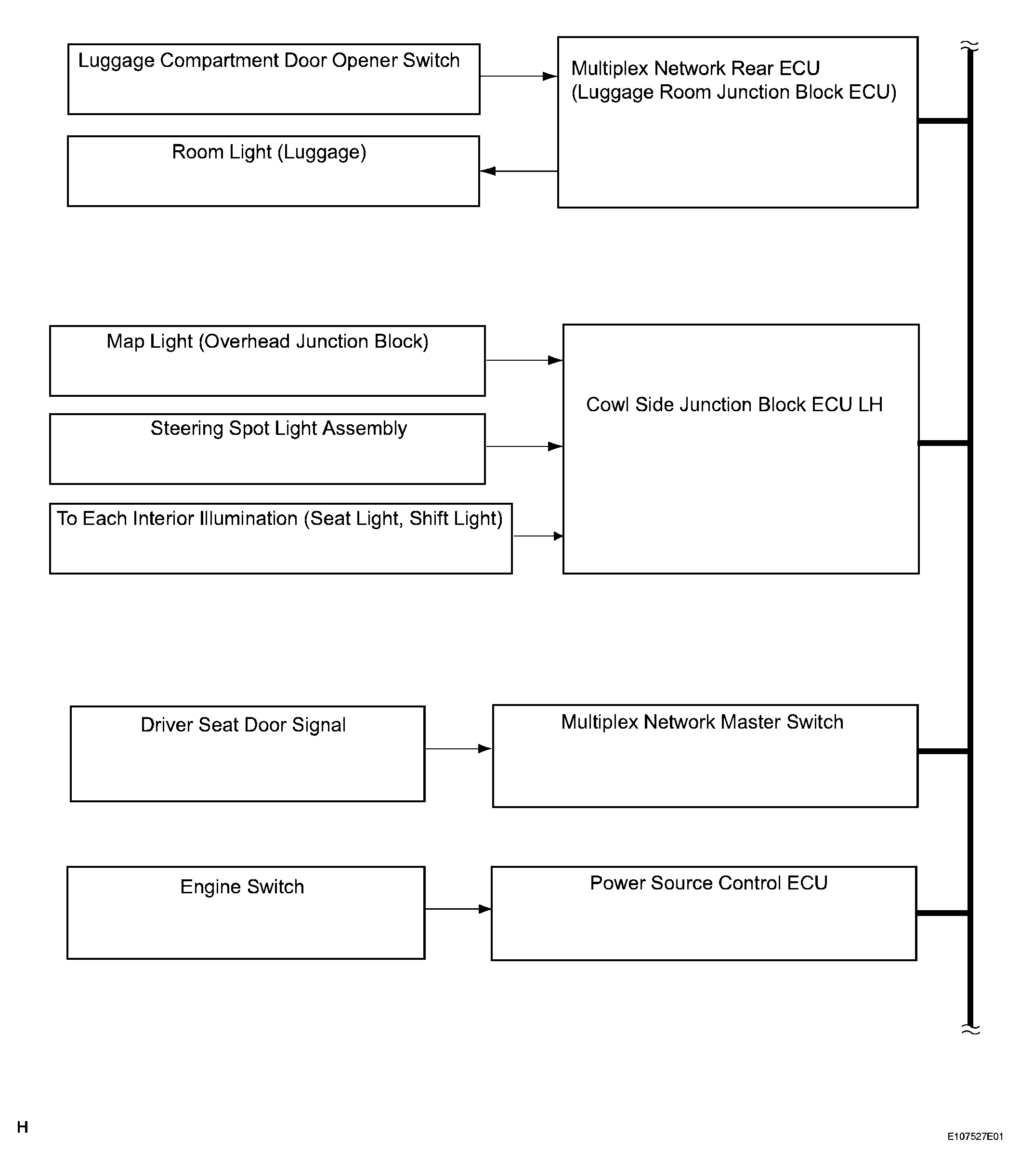

Fig 4: Lighting System Diagram - Illumination Control System (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

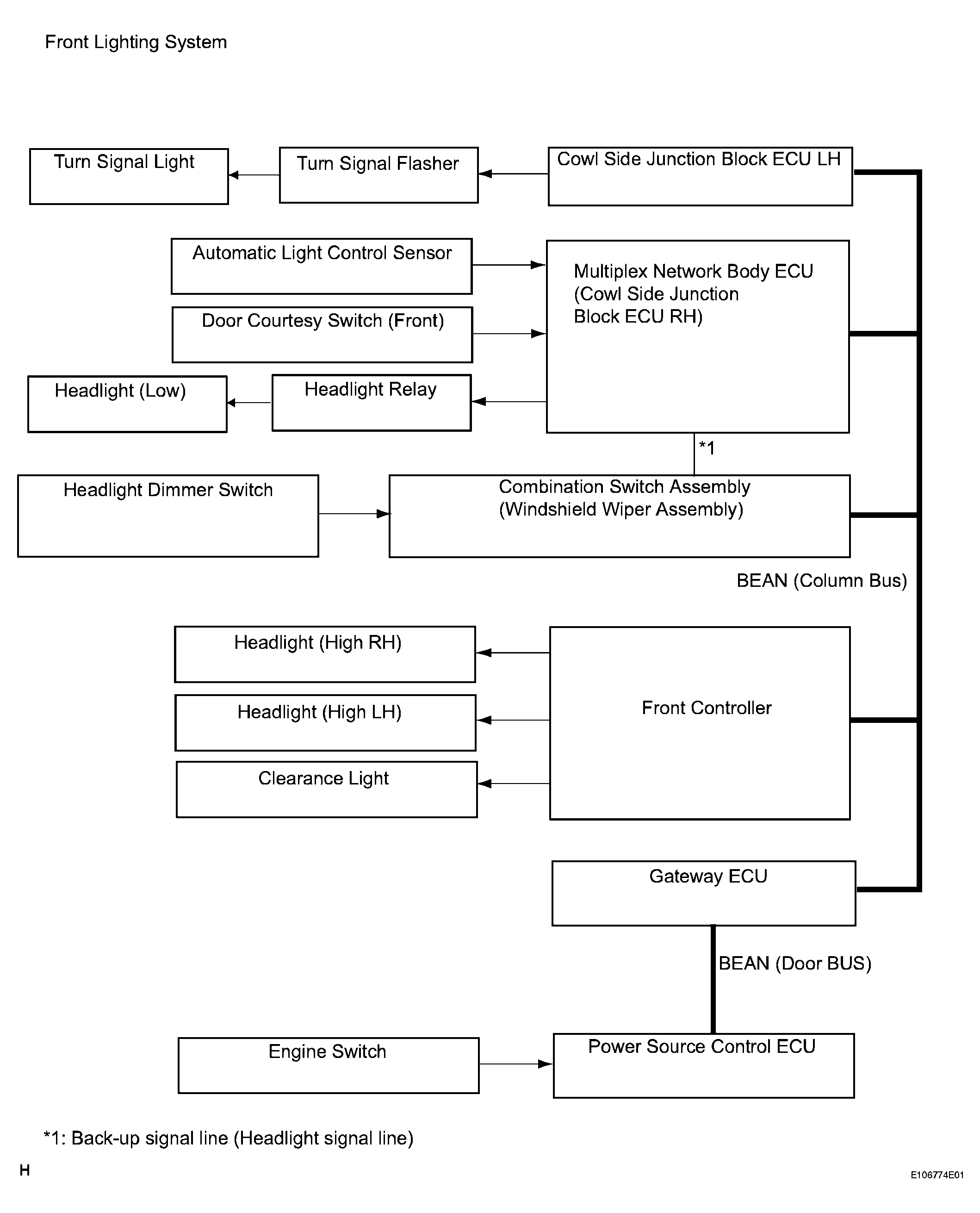

Fig 5: Lighting System Diagram - Front Lighting System

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

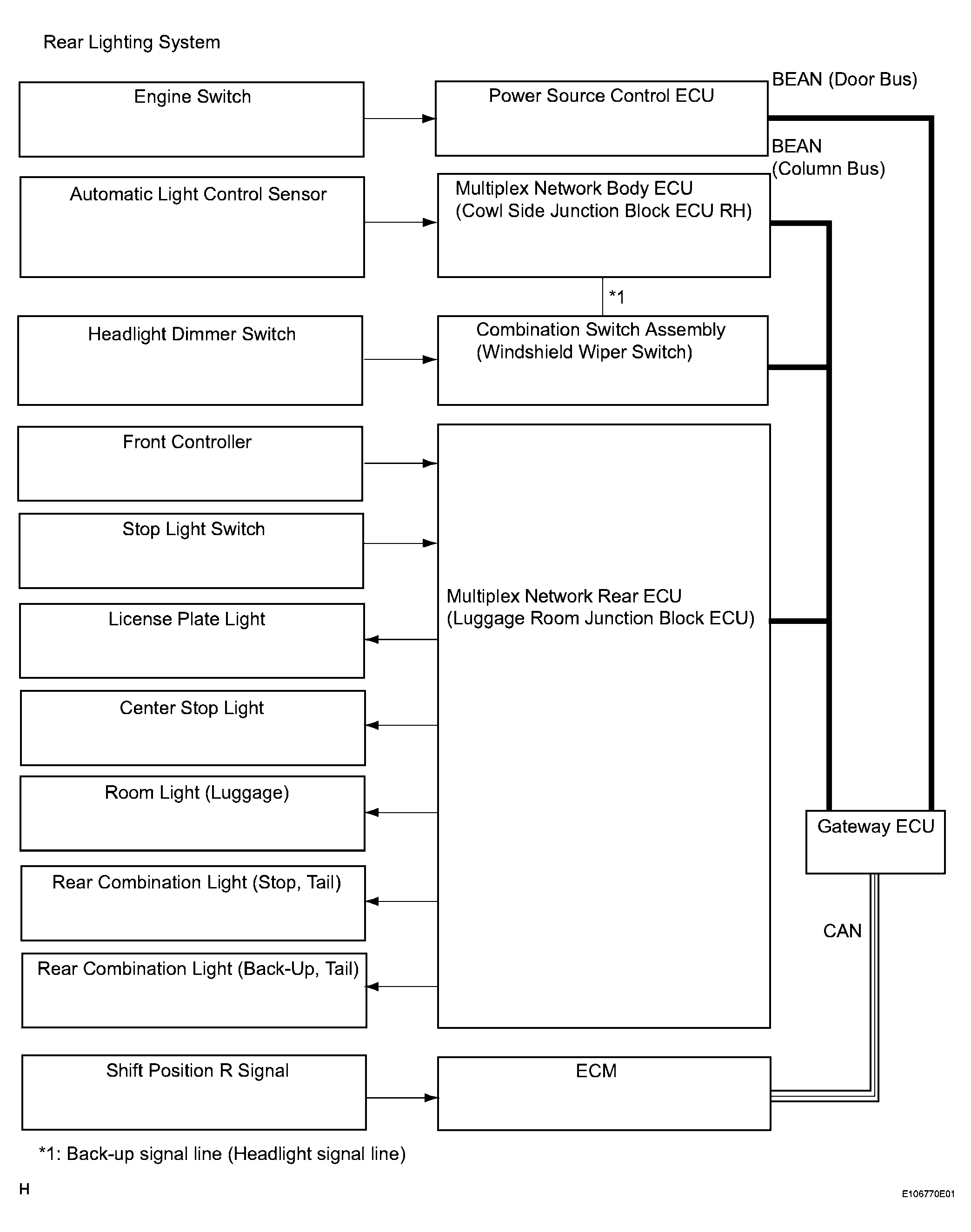

Fig 6: Lighting System Diagram - Rear Lighting System

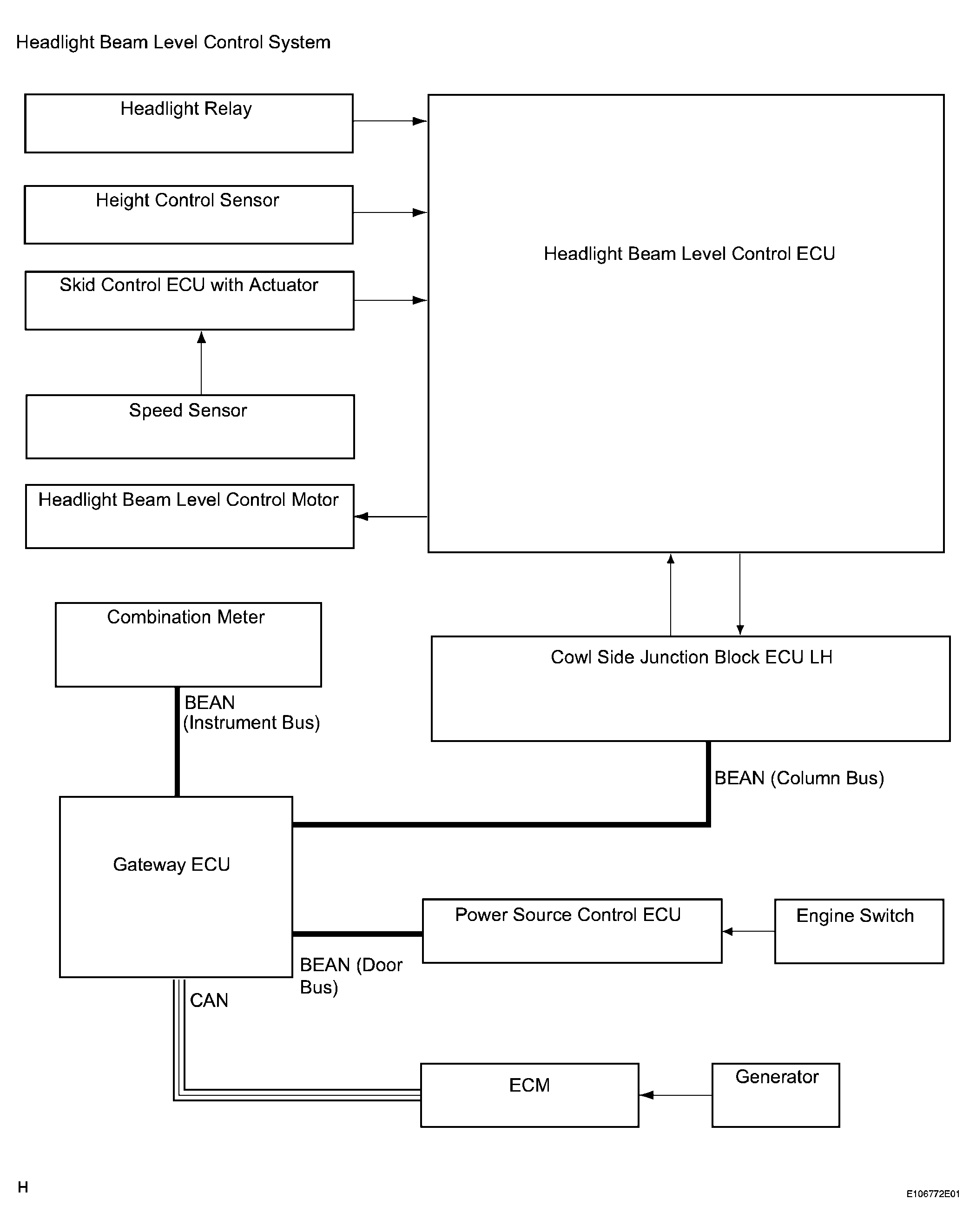

Fig 7: Lighting System Diagram - Headlight Beam Level Control System

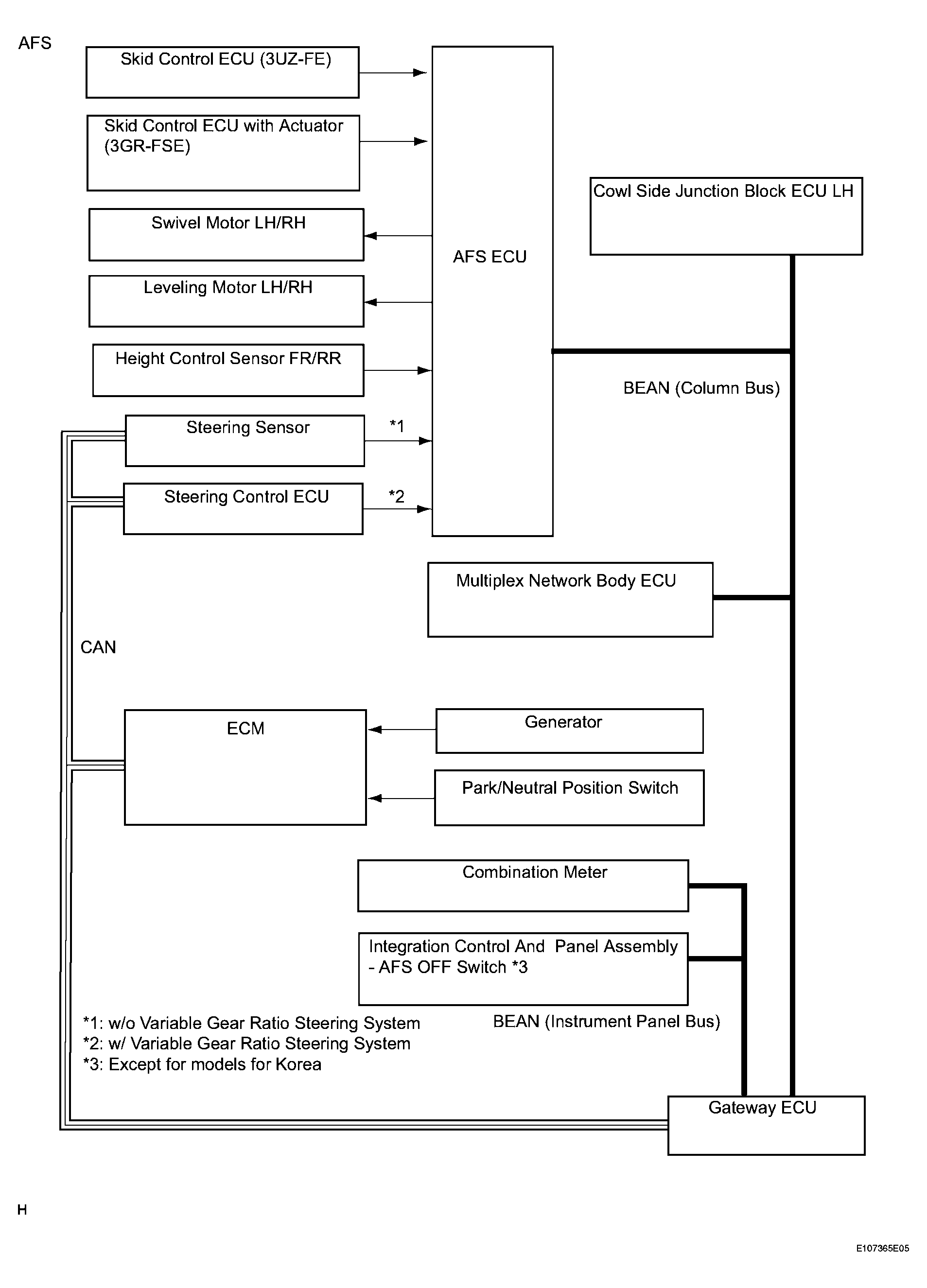

Fig 8: Lighting System Diagram - AFS
