DTC Check / Clear

WARNING: This page is about a different car, the 2006 Lexus GS 430 and 2006 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK DTC
    1. Connect the intelligent tester to the DLC3.
    2. Turn the engine switch on (IG).
    3. Read the DTCs by following the prompts on the tester screen.

      HINT:

      Please refer to the intelligent tester operator's manual for further details.

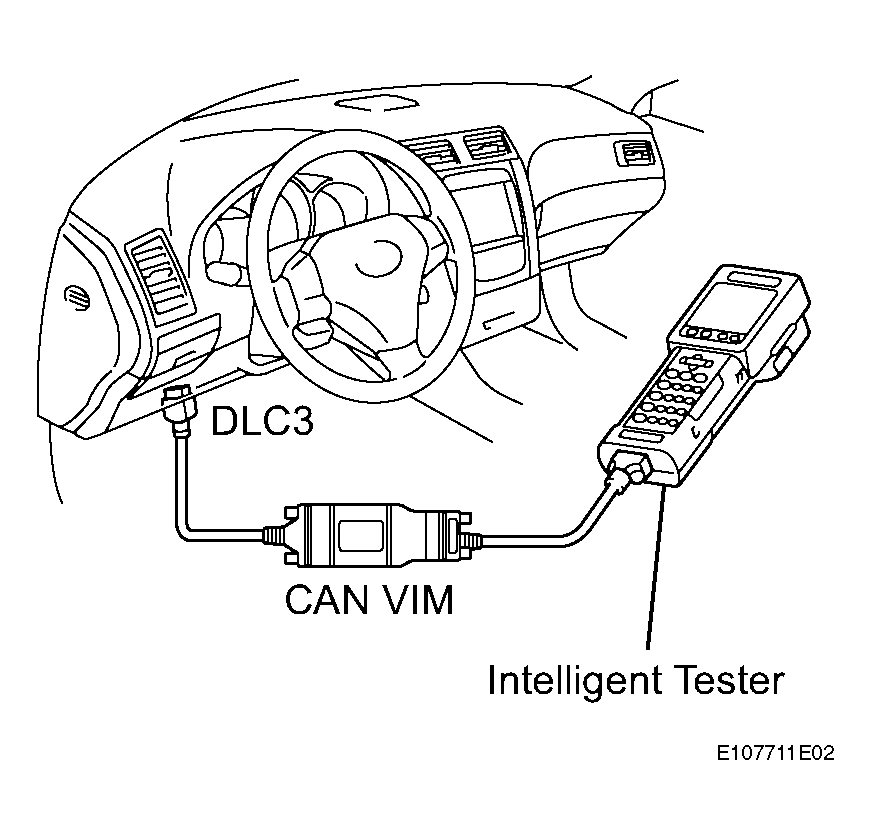

      Fig 1: Identifying Intelligent Tester To DLC3
      G04021496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. CLEAR DTC
    1. Connect the intelligent tester to the DLC3.
    2. Turn the engine switch on (IG).
    3. Erase the DTCs by following the directions on the tester screen.

      HINT:

      Please refer to the intelligent tester operator's manual for further details.
