Headlight Assembly: Installation

HINT:

• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.

1. INSTALL LIGHT CONTROL ECU
   1. Attach the claw and install the light control ECU.
   2. Install the 2 screws.

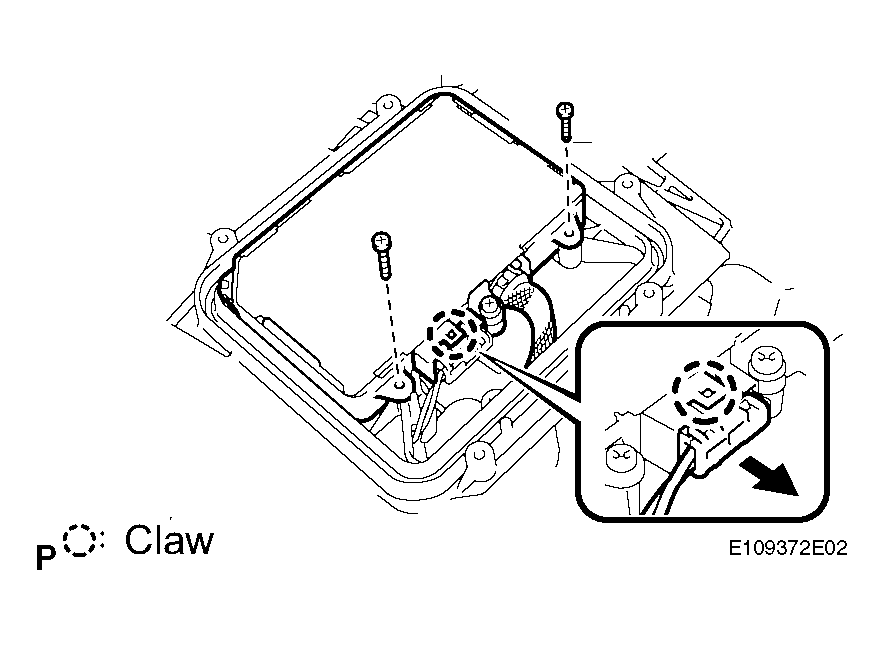

      Fig 1: Identifying Screws

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Install the 4 screws with the cover.
2. INSTALL FRONT SIDE MAKER LIGHT BULB SOCKET
   1. Install the front side maker light bulb to the front side maker light socket.
      Fig 2: Identifying Front Side Maker Light Bulb To Front Side Maker Light Socket

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. INSTALL FRONT SIDE MAKER LIGHT BULB
   1. Turn the front side maker light bulb socket and the front side maker light bulb in the direction indicated by the arrow and install as a unit.
4. INSTALL CLEARANCE LIGHT BULB SOCKET
   1. Install the clearance light bulb to the clearance light socket.
      Fig 3: Identifying Clearance Light Bulb To Clearance Light Socket

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. INSTALL CLEARANCE LIGHT BULB
   1. Turn the clearance light bulb socket and the clearance light bulb in the direction indicated by the arrow and install as a unit.
6. INSTALL FRONT TURN SIGNAL LIGHT BULB SOCKET
   1. Install the font turn signal light bulb to the front turn signal light socket.
      Fig 4: Identifying Font Turn Signal Light Bulb To Front Turn Signal Light Socket

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. INSTALL FRONT TURN SIGNAL LIGHT BULB
   1. Turn the front turn signal light bulb socket and the front turn signal light bulb in the direction indicated by the arrow and install as a unit.
      Fig 5: Turning Front Turn Signal Light Bulb Socket And Front Turn Signal Light Bulb

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. INSTALL NO. 2 HEADLIGHT BULB
   1. Turn the headlight No. 2 bulb in the direction indicated by the arrow and install it.

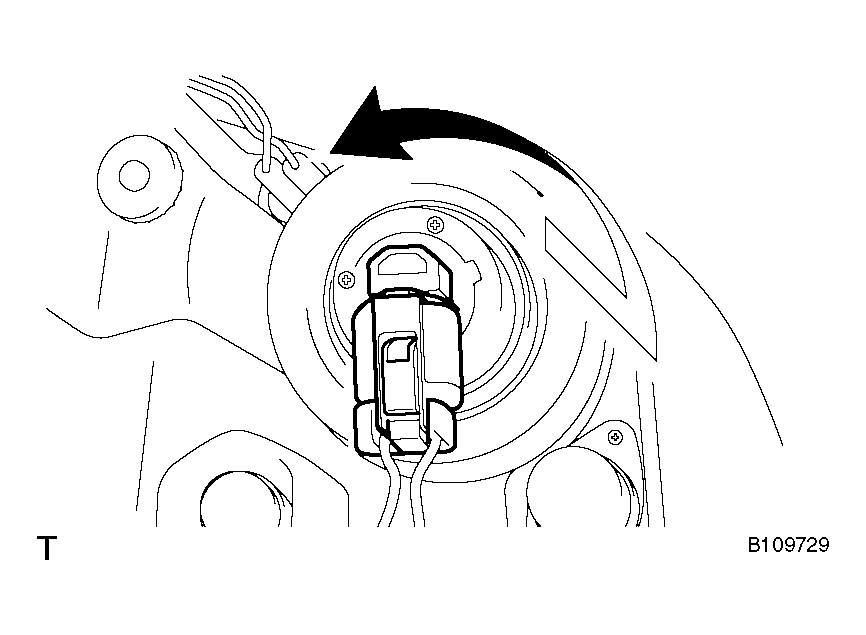

      Fig 6: Identifying Headlight Bulb

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. INSTALL HIGH-INTENSITY DISCHARGE HEADLIGHT BULB
   1. Turn the back cover in the direction indicated by the arrow and install it.
      Fig 7: Identifying High-Intensity Discharge Headlight Bulb

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
10. INSTALL NO. 1 HEADLIGHT BACK COVER
    1. Turn the headlight back cover No. 1 in the direction indicated by the arrow and install it.
       Fig 8: Identifying Headlight Back Cover

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
11. INSTALL FRONT BUMPER SIDE SUPPORT
    1. Install the 3 screws with the bumper side support.
       Fig 9: Identifying Screws With Bumper Side Support

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
12. INSTALL HEADLIGHT ASSEMBLY
    1. Attach the claw and install the 3 bolts with the headlight.
    2. w/ headlight cleaner:

       Connect the hose.

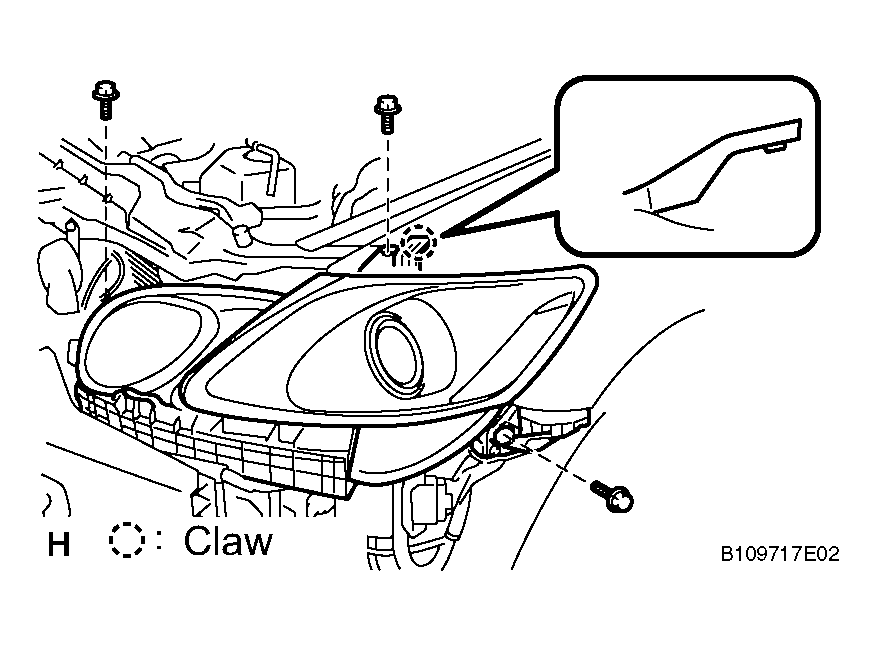

       Fig 10: Identifying Bolts With Headlight

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the connector as shown in the illustration.
13. INSTALL ENGINE ROOM SIDE COVER (See  EVAP SYSTEM  )
14. INSTALL FRONT BUMPER COVER (See  INSTALLATION  )
15. INSTALL COOL AIR INTAKE DUCT SEAL (See  INSTALLATION  )
16. CONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
17. PERFORM INITIALIZATION

    Some systems need initialization when disconnecting the cable from the negative battery terminal. (See INITIALIZATION )

18. INSPECT SRS WARNING LIGHT
19. VEHICLE PREPARATION FOR HEADLIGHT AIM ADJUSTMENT (See  INSTALLATION   )
20. PREPARATION FOR HEADLIGHT AIMING (See  ADJUSTMENT   )
21. HEADLIGHT AIMING INSPECTION (See  ADJUSTMENT   )
22. HEADLIGHT AIMING ADJUSTMENT (See  ADJUSTMENT   )

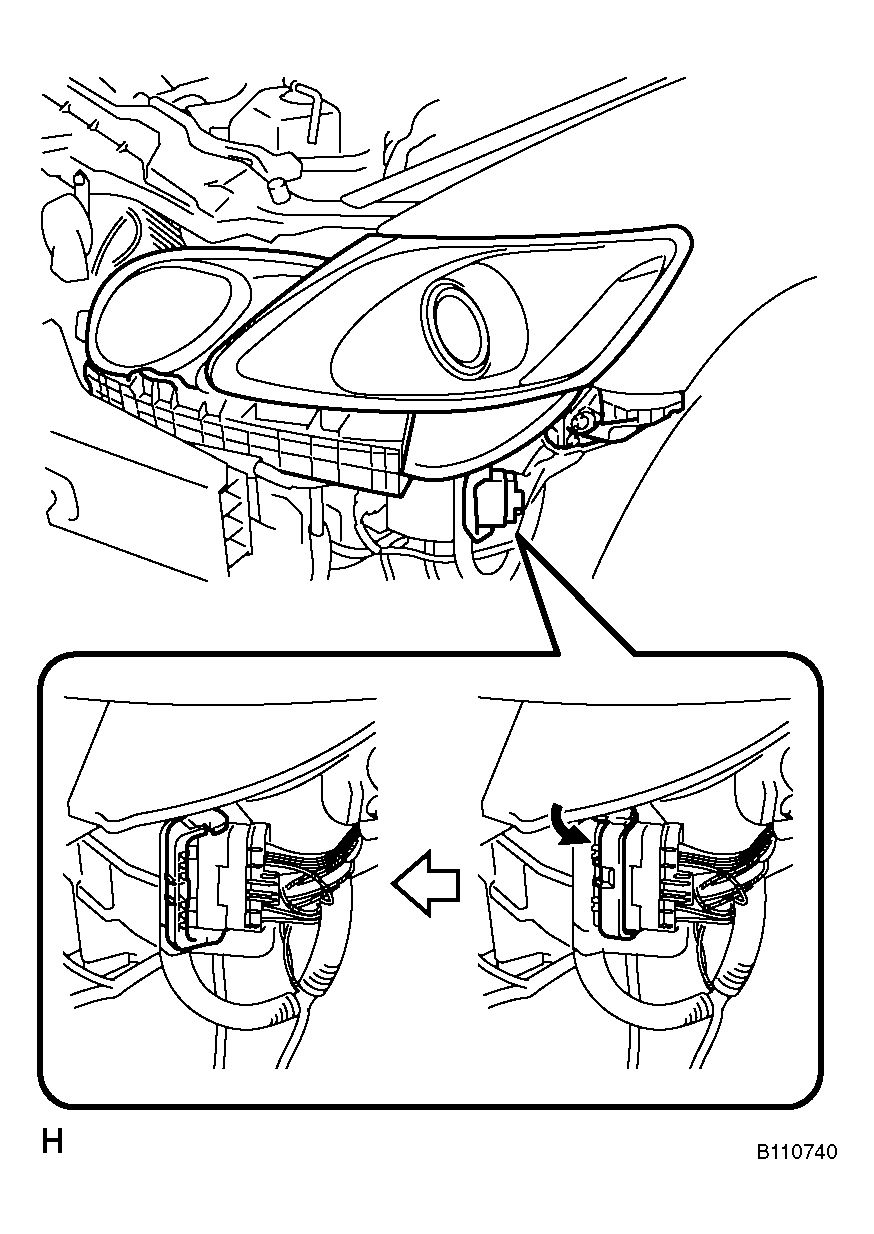

    Fig 11: Identifying Connector

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
