INSTALL STEERING CONTROL ECU
1. Install the steering control ECU with the 3 screws.
  HINT:
  - Align positioning boss (A) of the blower assembly with the hole of the steering control ECU.
  - Securely engage the hook (B) of the steering control ECU with the blower assembly.

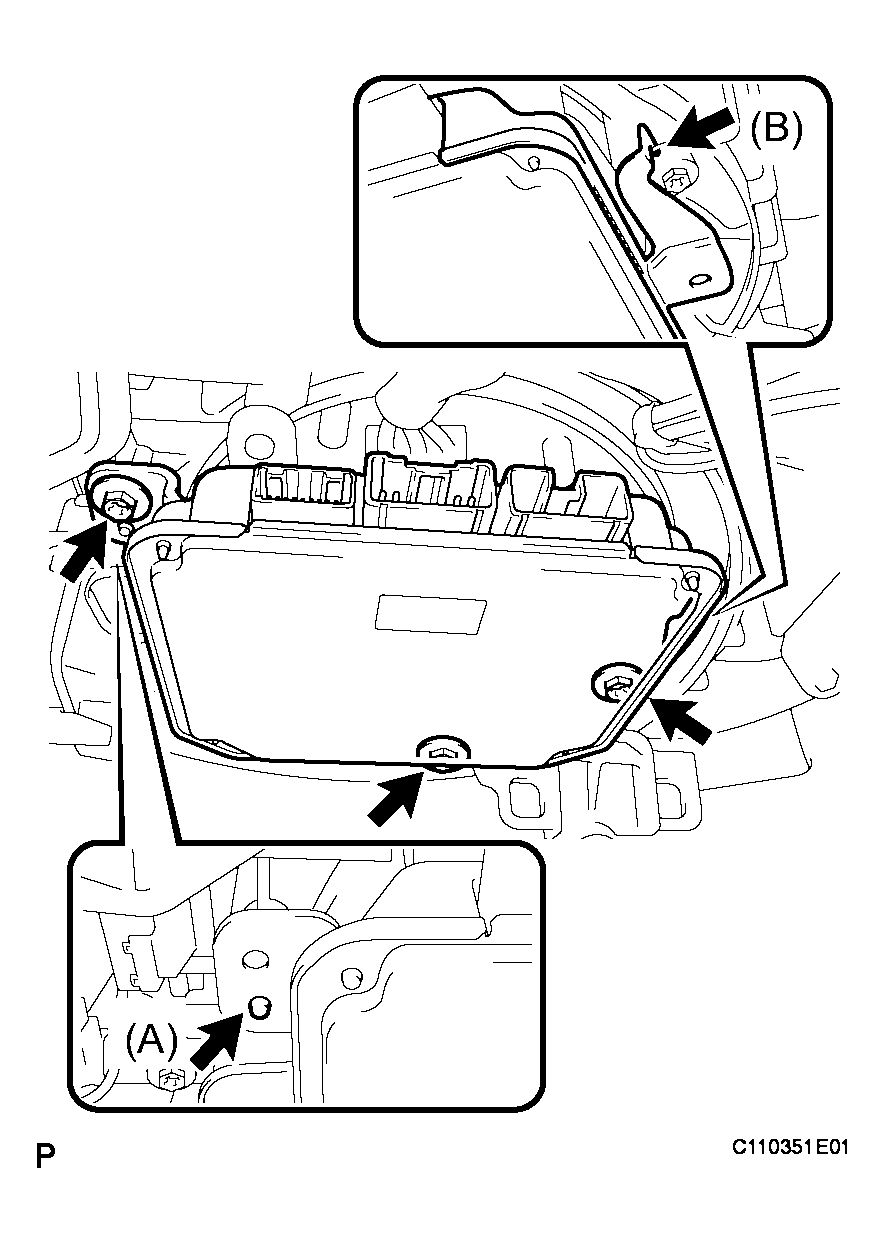

    Fig 1: Installing Steering Control ECU With 3 Screws
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the 3 connectors to the steering control ECU.
INSTALL INSTRUMENT PANEL UNDER COVER SUBASSEMBLY NO.2 (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
Some systems need initialization when disconnecting the cable from the negative battery terminal (see INITIALIZATION ).
PERFORM VARIABLE GEAR RATIO STEERING SYSTEM CALIBRATION
(See INITIALIZATION )

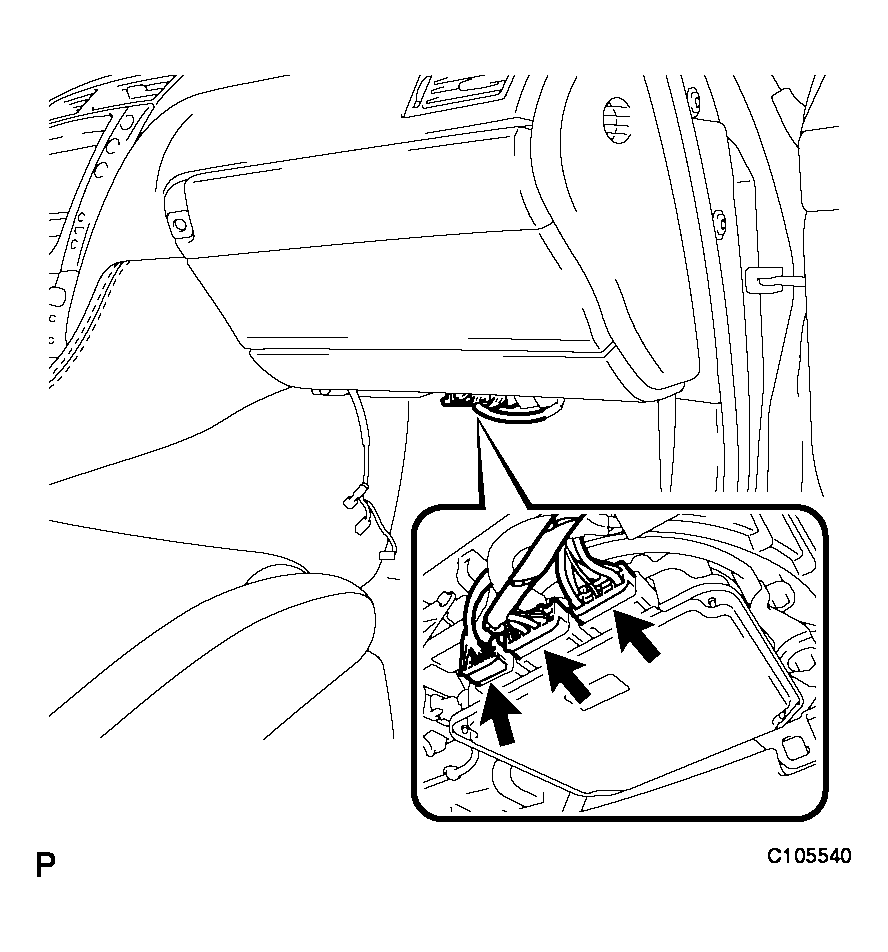

Fig 2: Connecting 3 Connectors To Steering Control ECU
