GPS Antenna: Components

WARNING: This page is about a different car, the 2007 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.

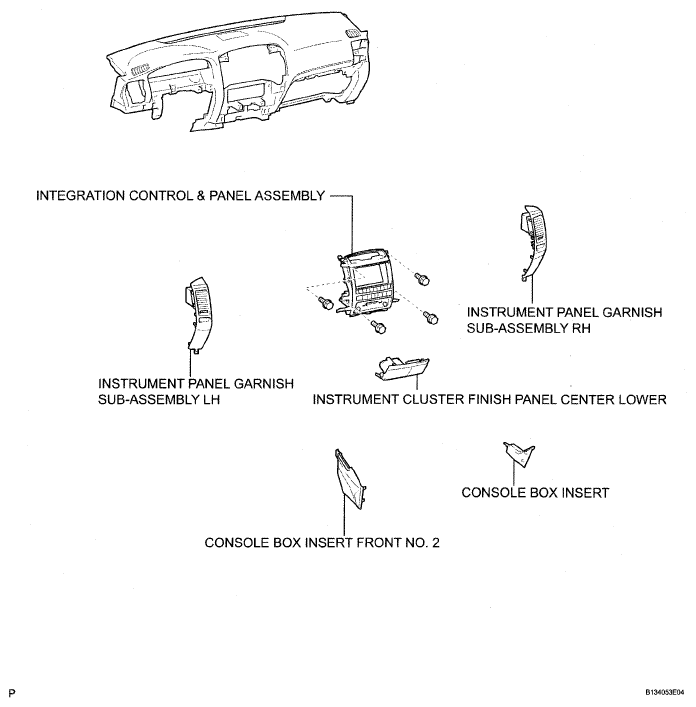

Fig 1: Identifying GPS Antenna Replacement Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

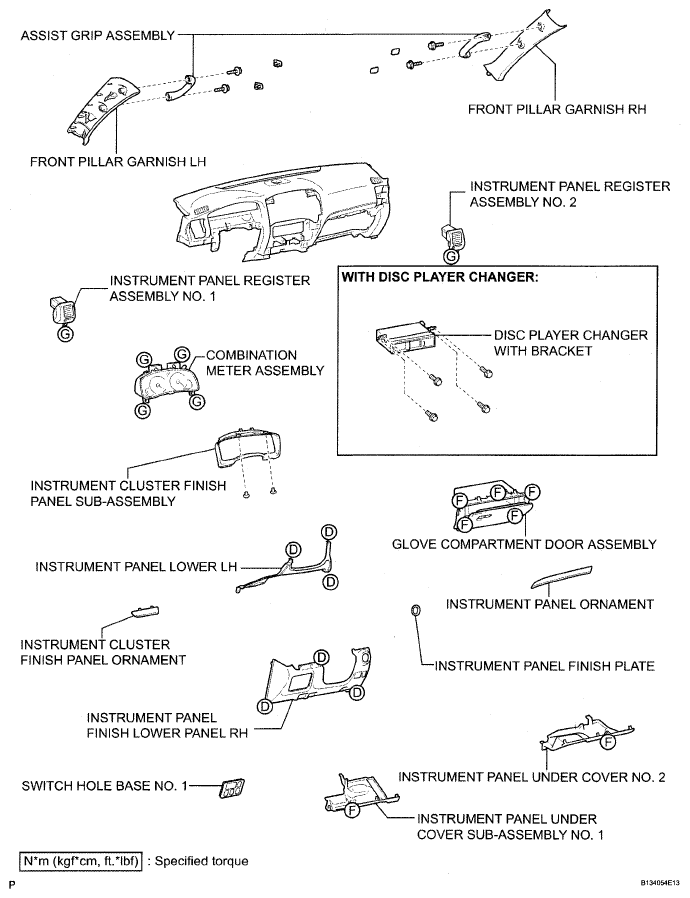

Fig 2: Identifying GPS Antenna Replacement Components (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

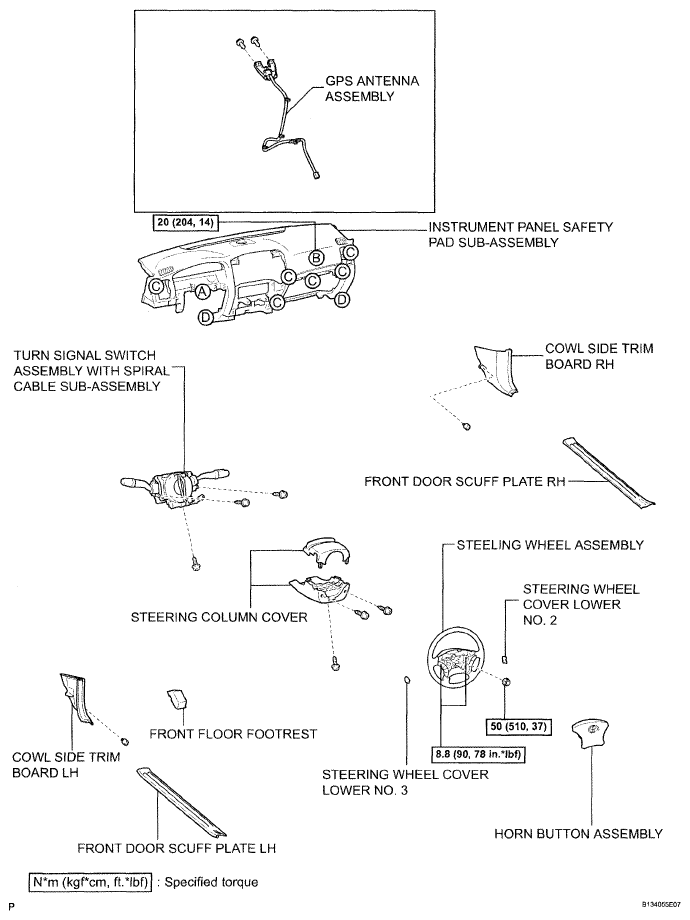

Fig 3: GPS Antenna Replacement Components (3 Of 4) With Torque Specifications

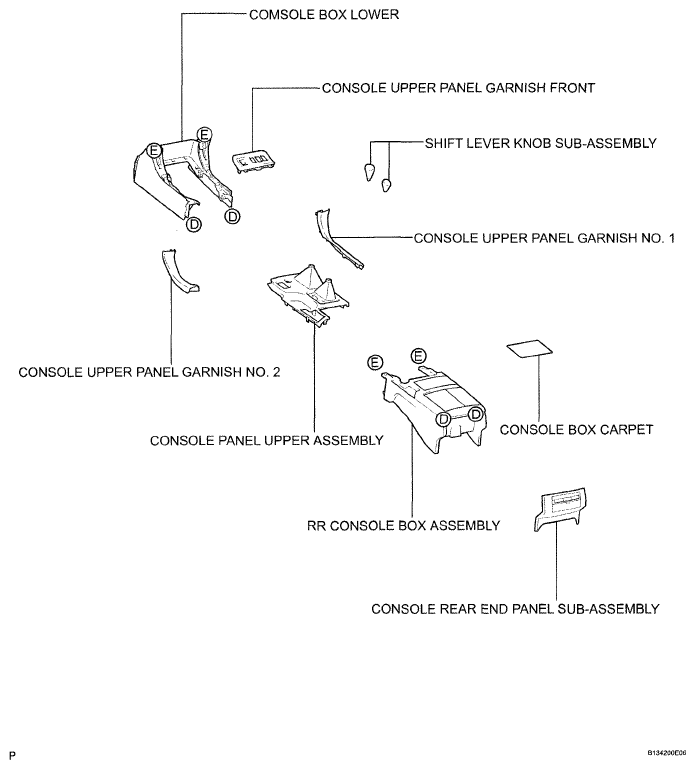

Fig 4: GPS Antenna Replacement Components (4 Of 4) With Torque Specifications
