Section 114 (Navigation)
>>
Navigation System
>>
Parts Location
Parts Location
WARNING:
This page is about a different car, the 2007 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.

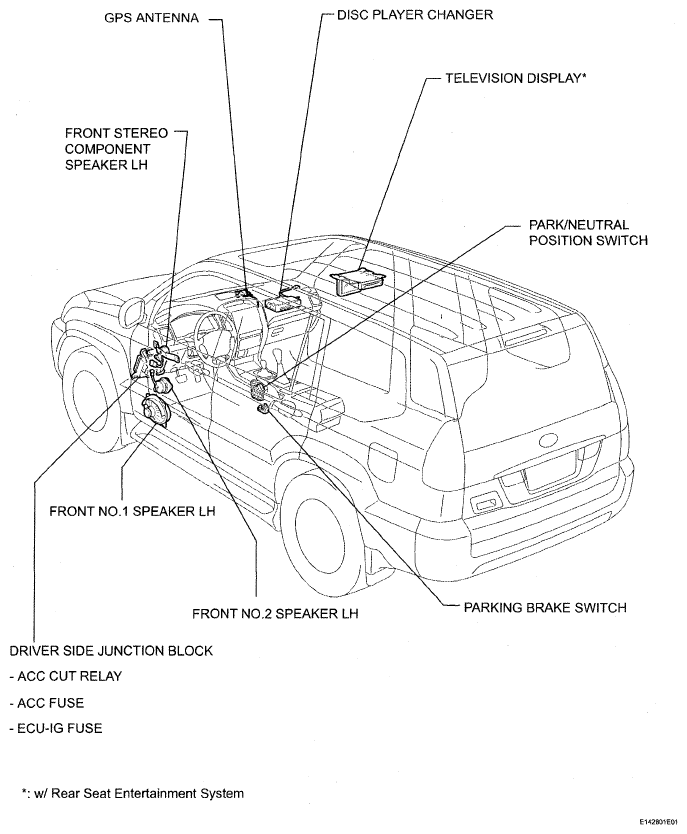

Fig 1: Identifying Navigation System Replacement Components (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

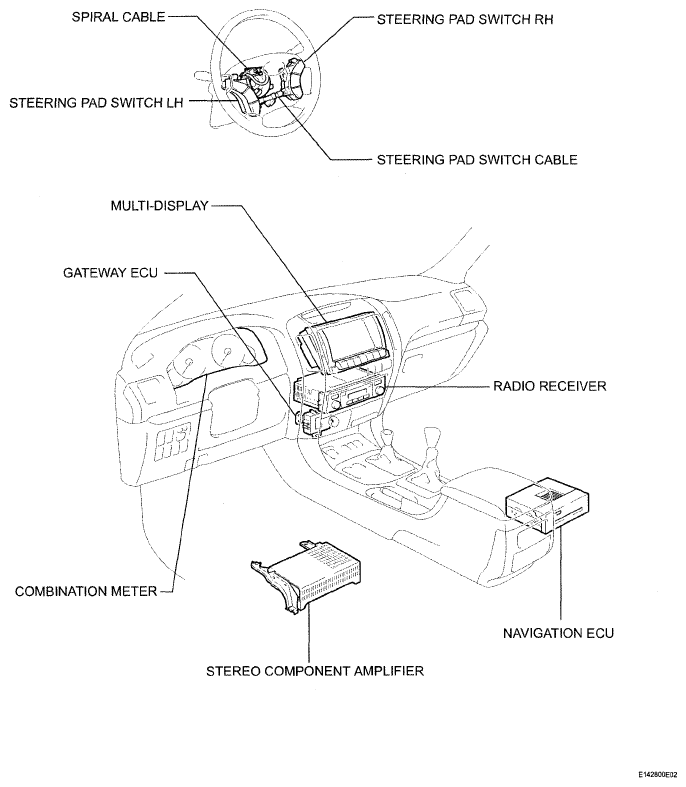

Fig 2: Identifying Navigation System Replacement Components (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

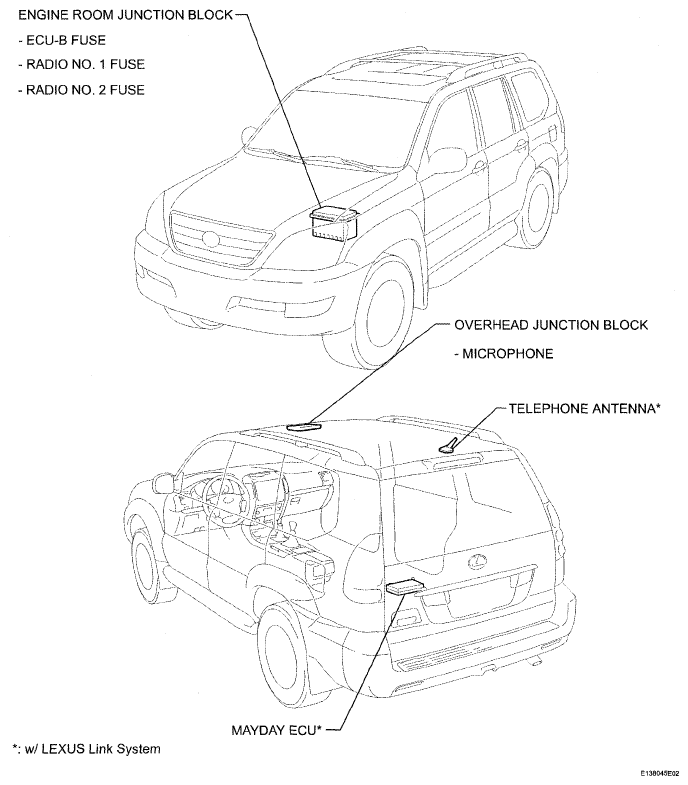

Fig 3: Identifying Navigation System Replacement Components (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
