ECM Power Source Circuit: Wiring Diagram

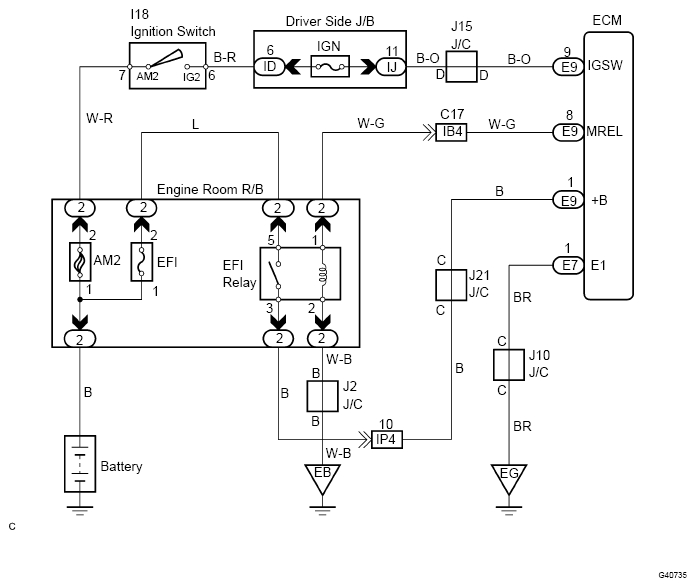

Fig 1: Wiring Diagram Of ECM Power Source Circuit

G04676500

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
