Horn System: Location

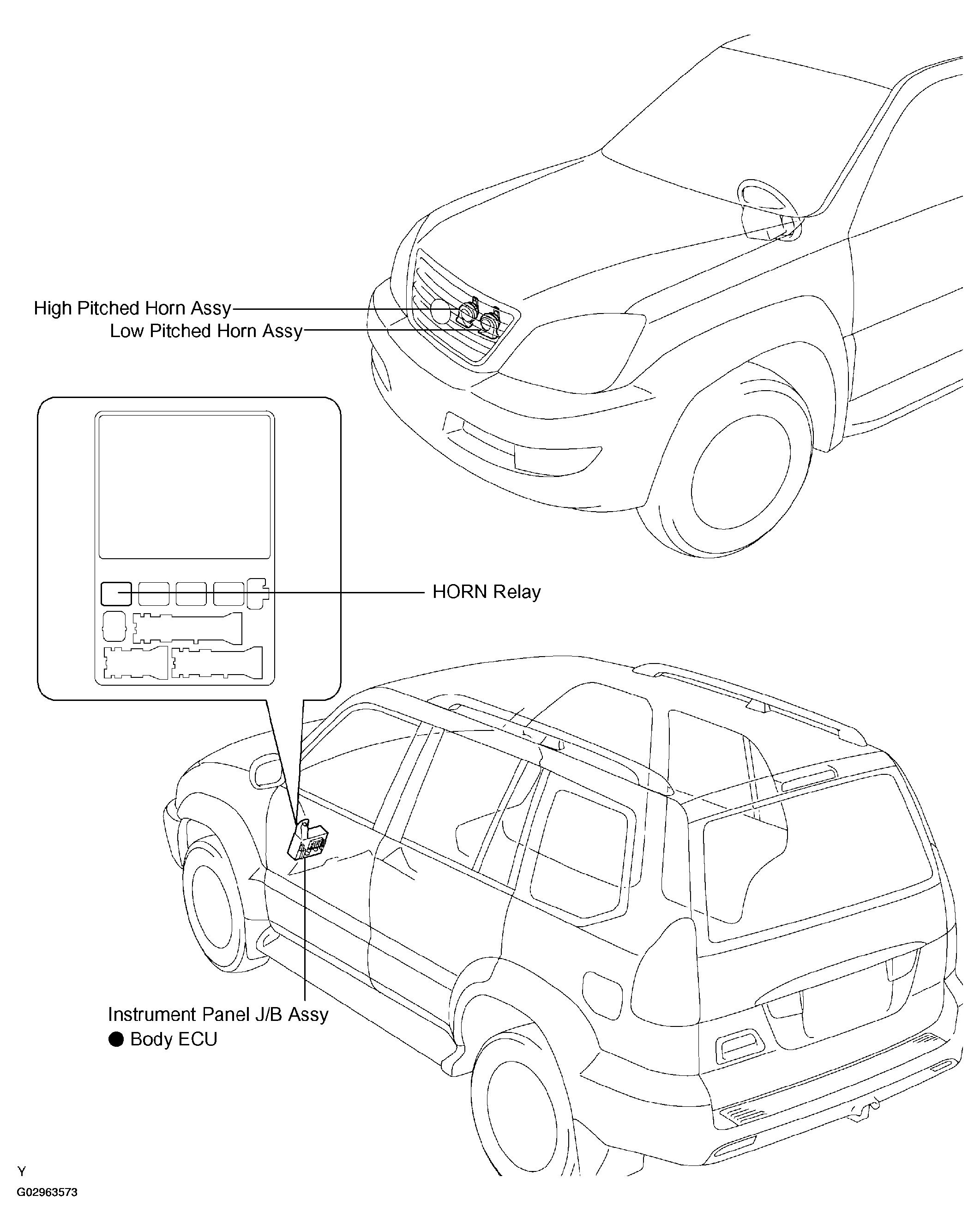

Fig 1: Locating Horn System Components

G02963573

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
