Seat Heater: Notes

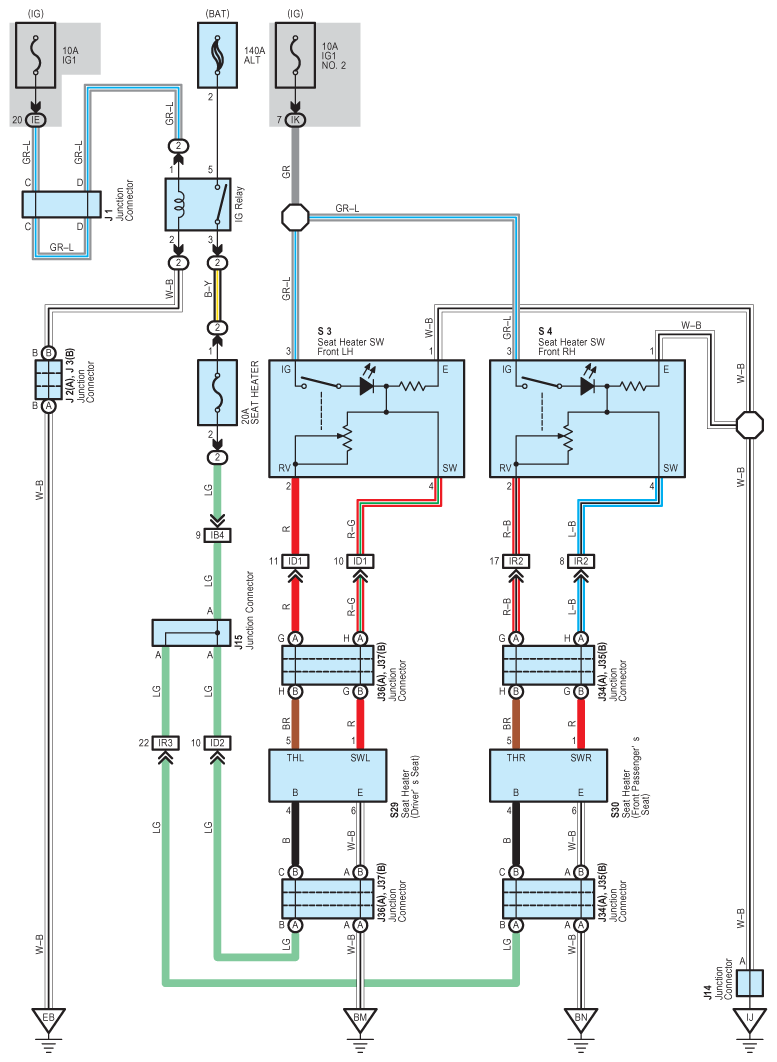

Fig 1: Seat Heater Wiring Diagram

G08910157

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
