Power Seat for Driver's Seat: Notes

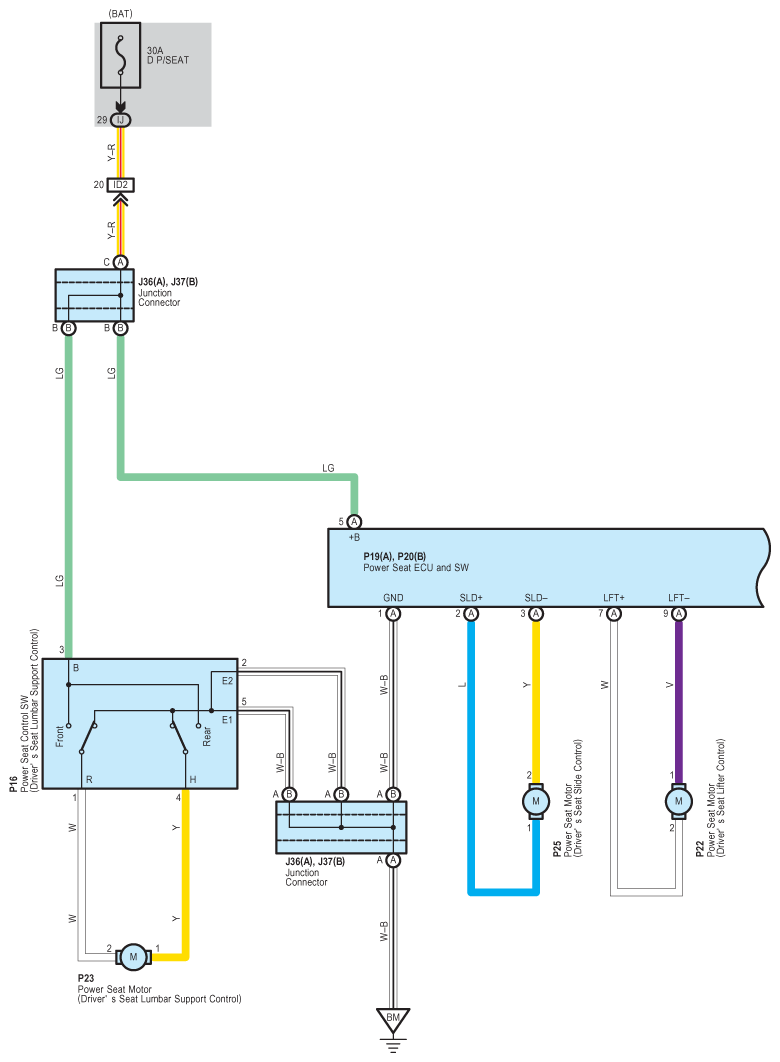

Fig 1: Power Seat For Driver'S Seat Wiring Diagram (1 Of 3)
G08910153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

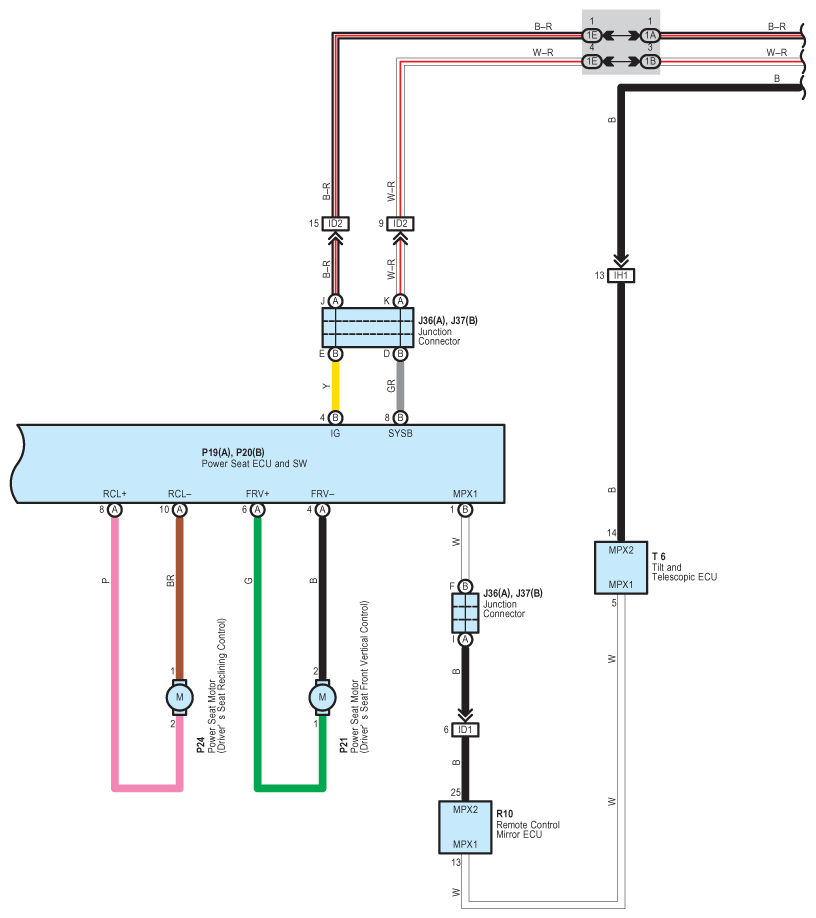

Fig 2: Power Seat For Driver'S Seat Wiring Diagram (2 Of 3)
G08910154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

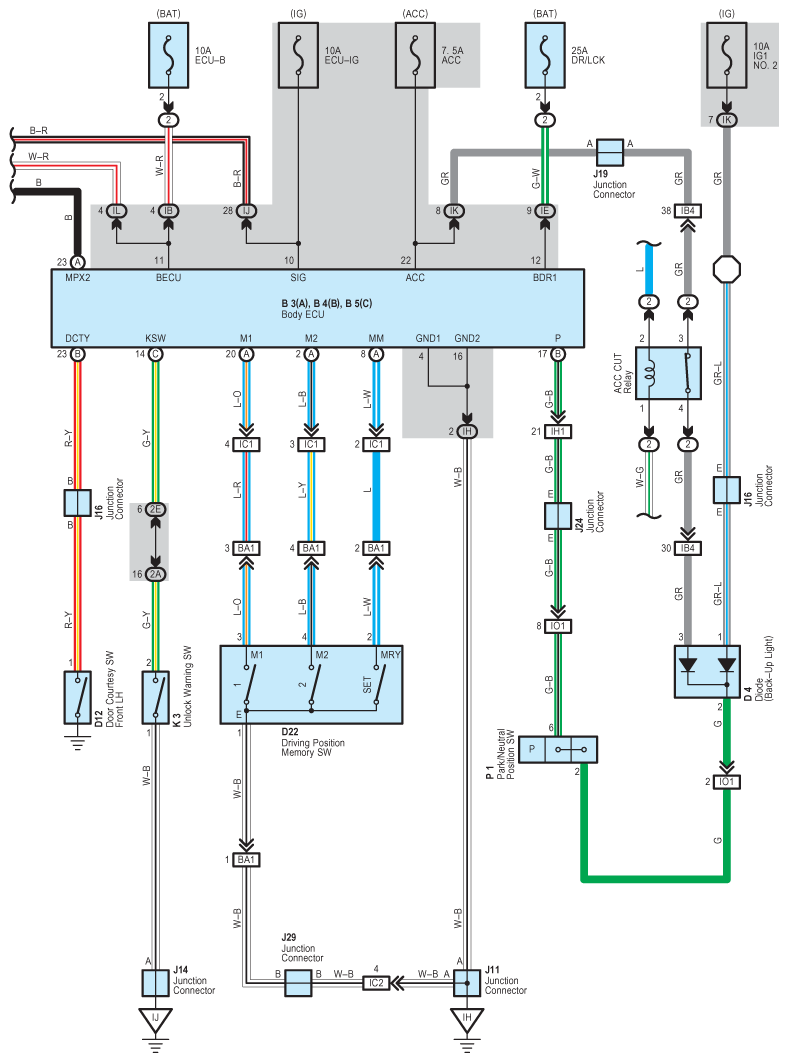

Fig 3: Power Seat For Driver'S Seat Wiring Diagram (3 Of 3)
G08910155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
