Navigation and Parking Assist without RSES: Notes

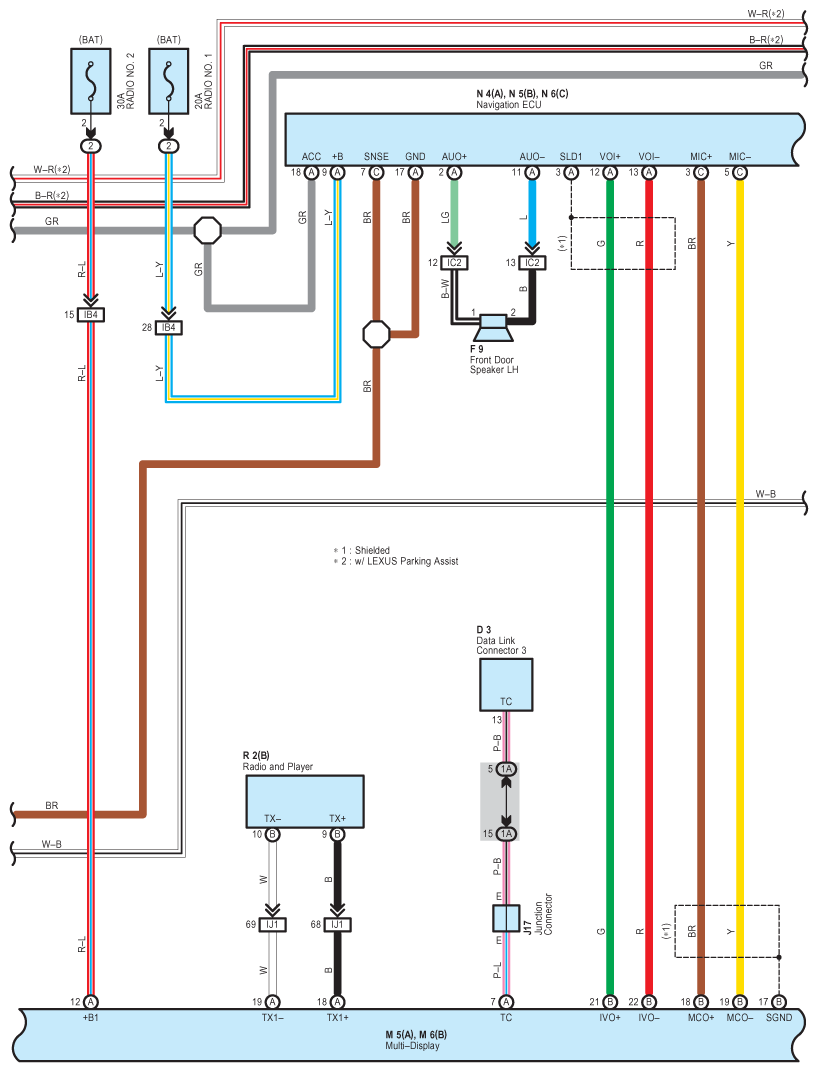

Fig 1: Navigation And Parking Assist Without RSES Wiring Diagram (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

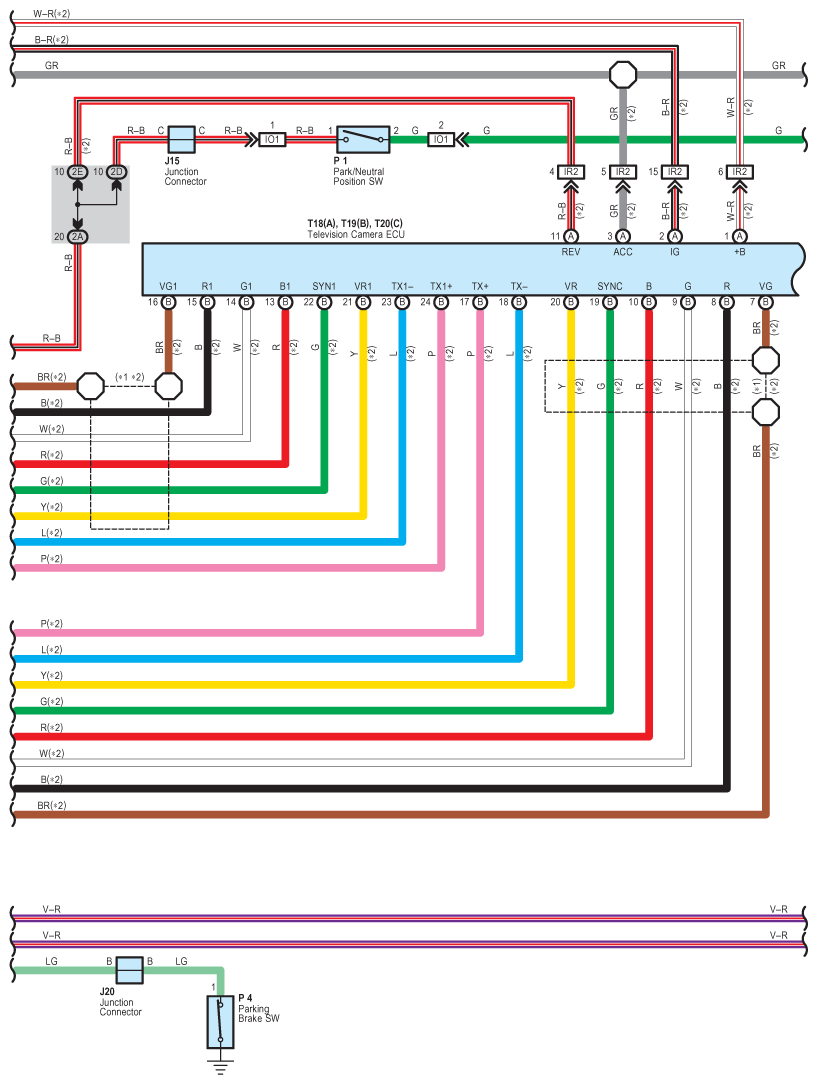

Fig 2: Navigation And Parking Assist Without RSES Wiring Diagram (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

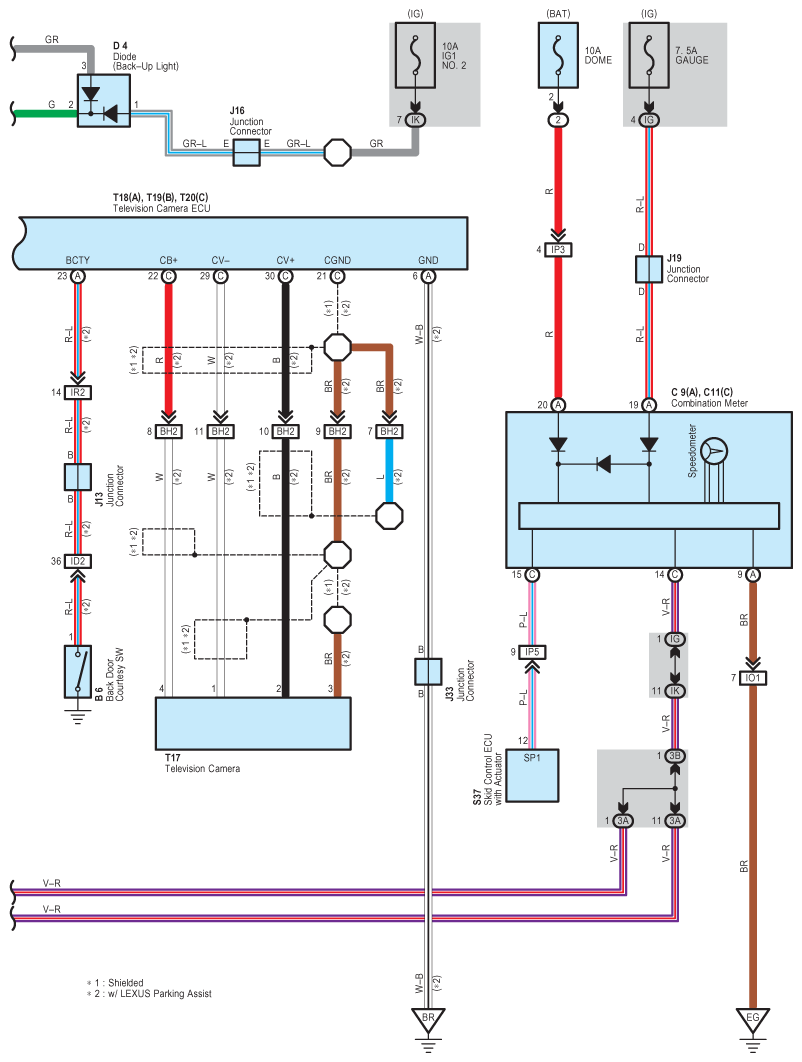

Fig 3: Navigation And Parking Assist Without RSES Wiring Diagram (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

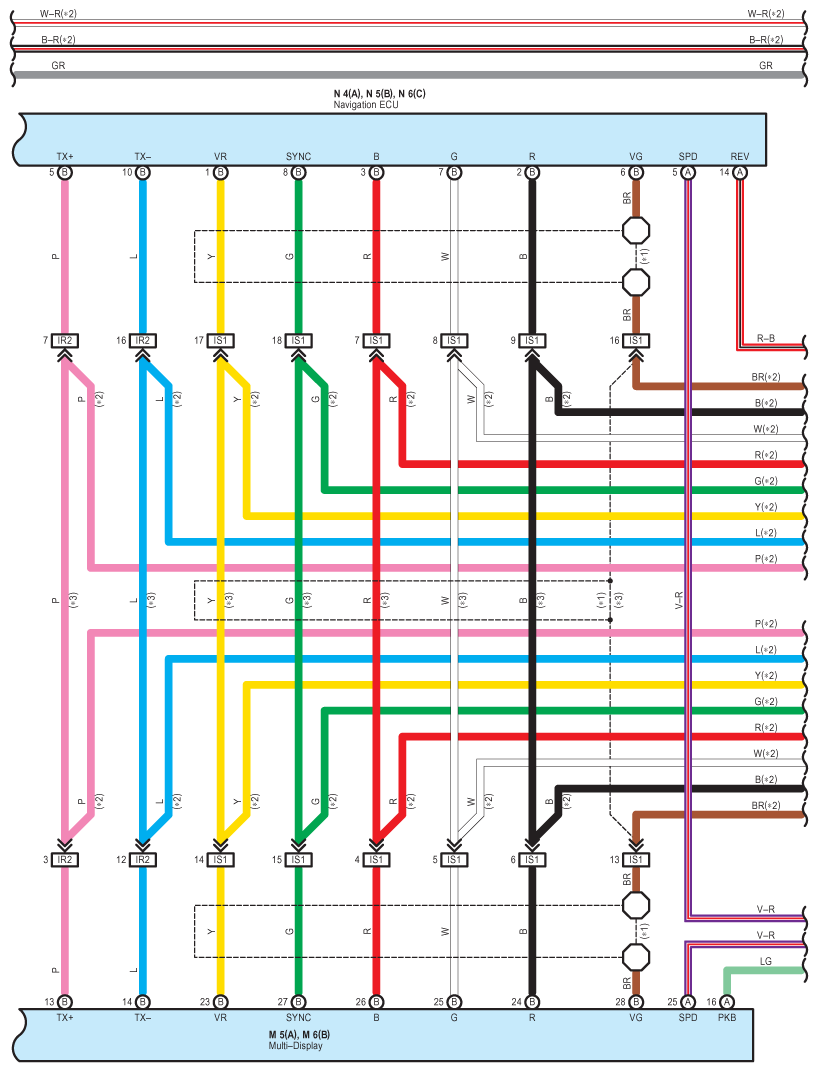

Fig 4: Navigation And Parking Assist Without RSES Wiring Diagram (4 Of 6)

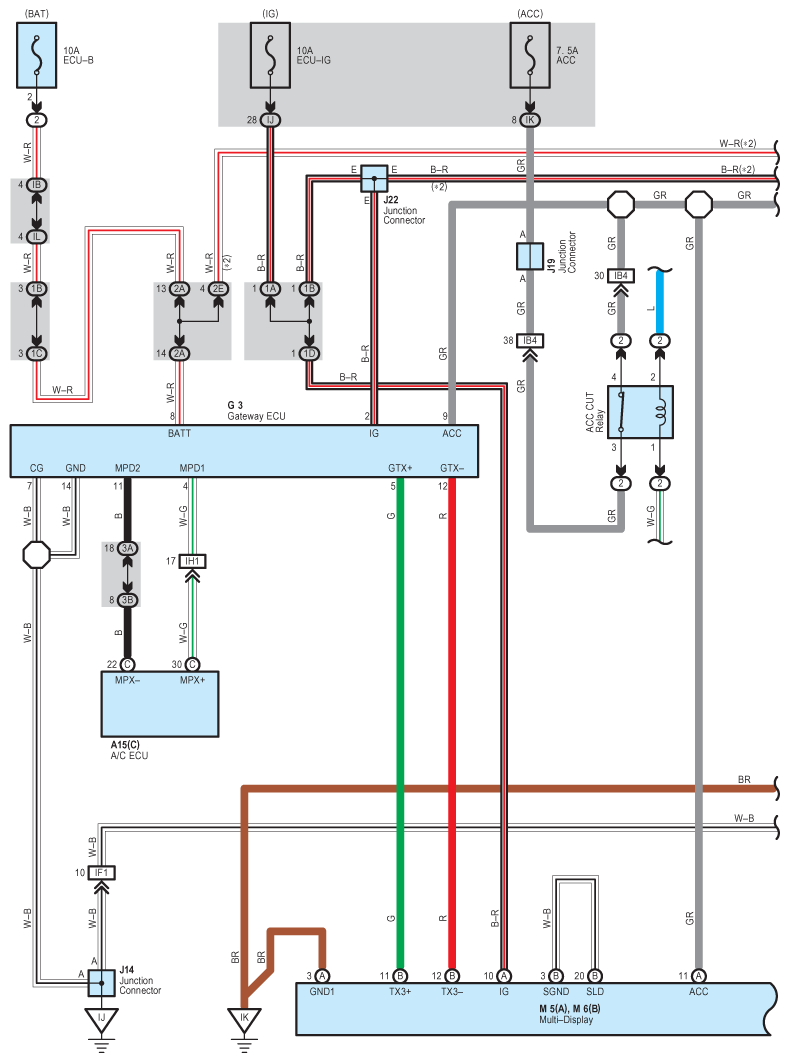

Fig 5: Navigation And Parking Assist Without RSES Wiring Diagram (5 Of 6)

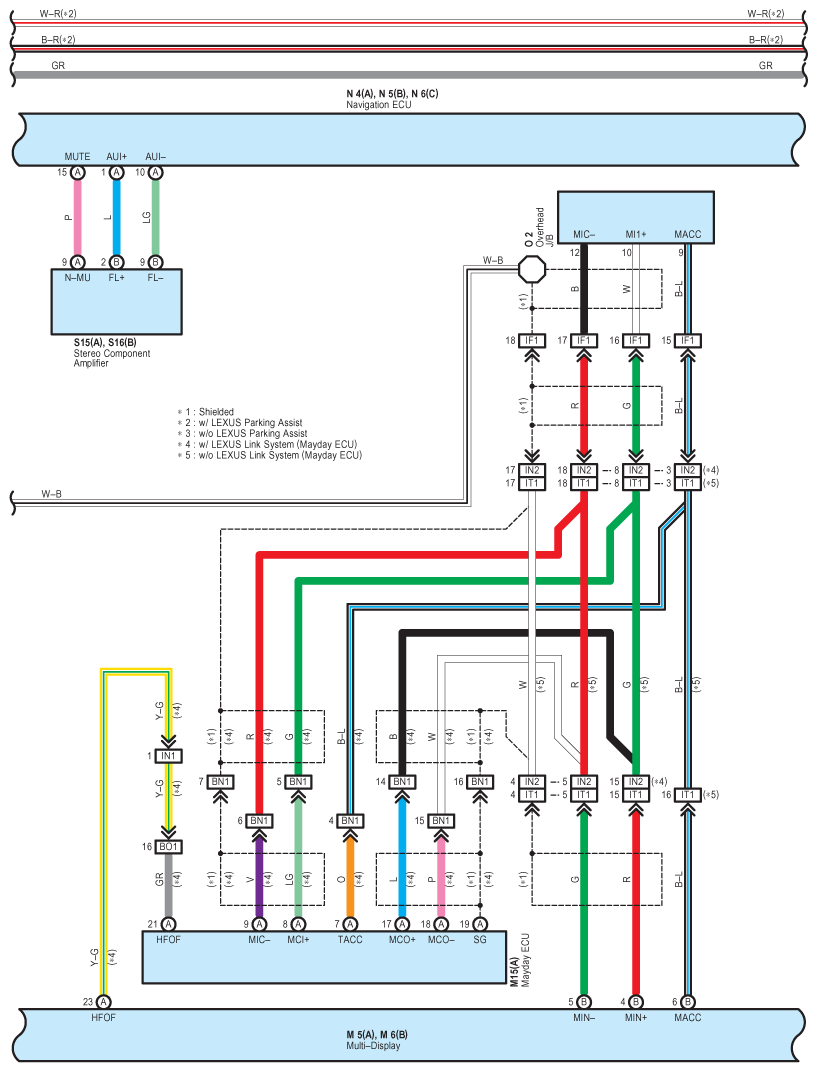

Fig 6: Navigation And Parking Assist Without RSES Wiring Diagram (6 Of 6)
