Navigation and Parking Assist with RSES: Notes

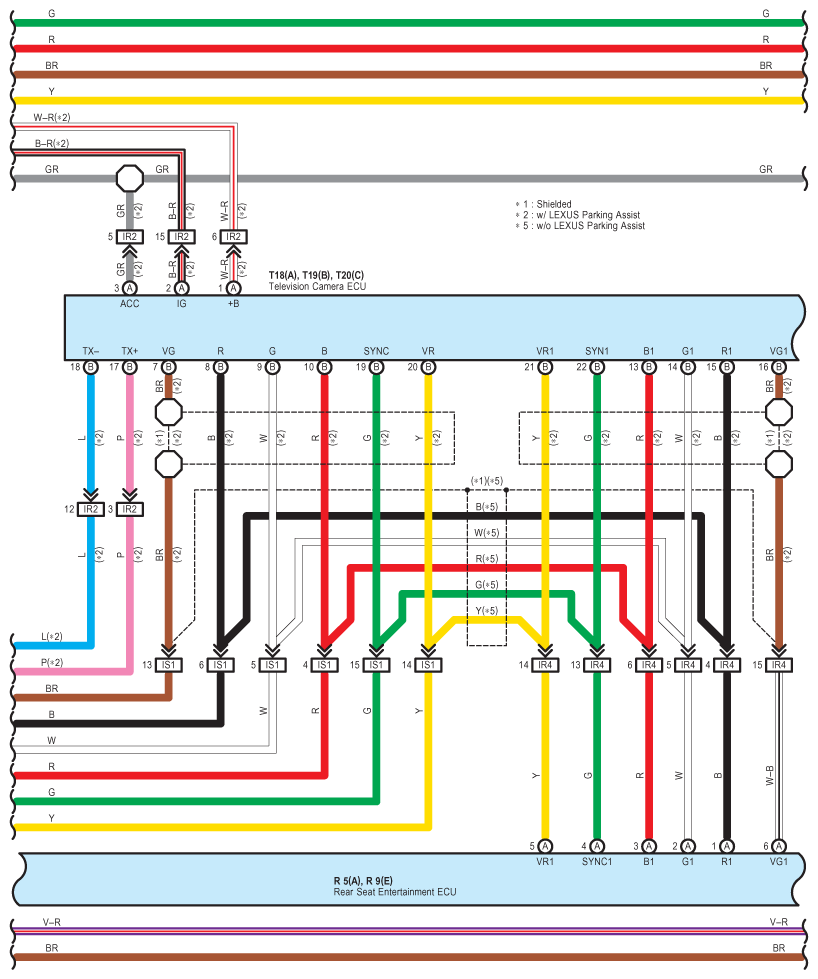

Fig 1: Navigation And Parking Assist With RSES Wiring Diagram (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

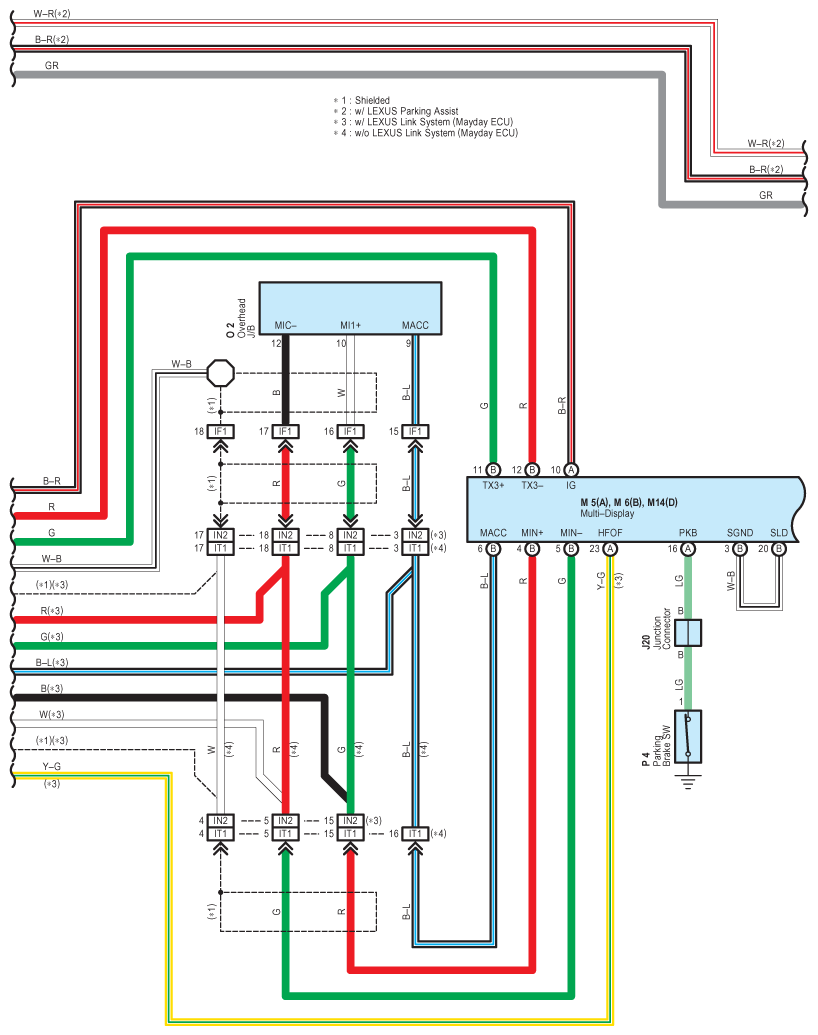

Fig 2: Navigation And Parking Assist With RSES Wiring Diagram (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

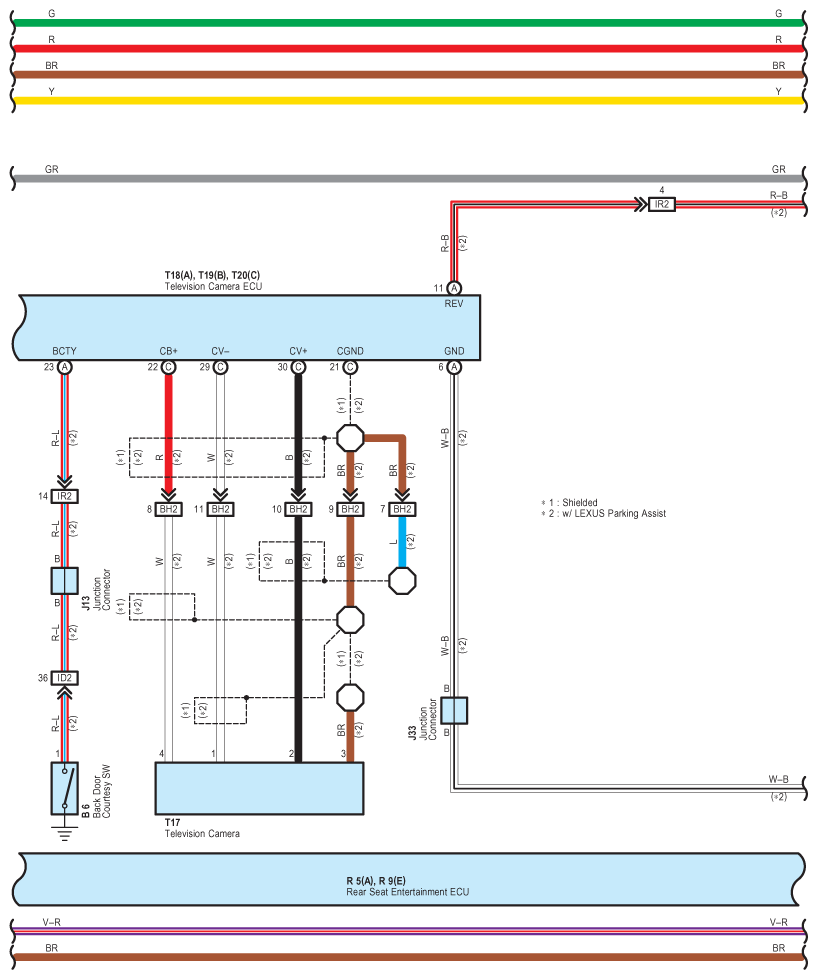

Fig 3: Navigation And Parking Assist With RSES Wiring Diagram (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

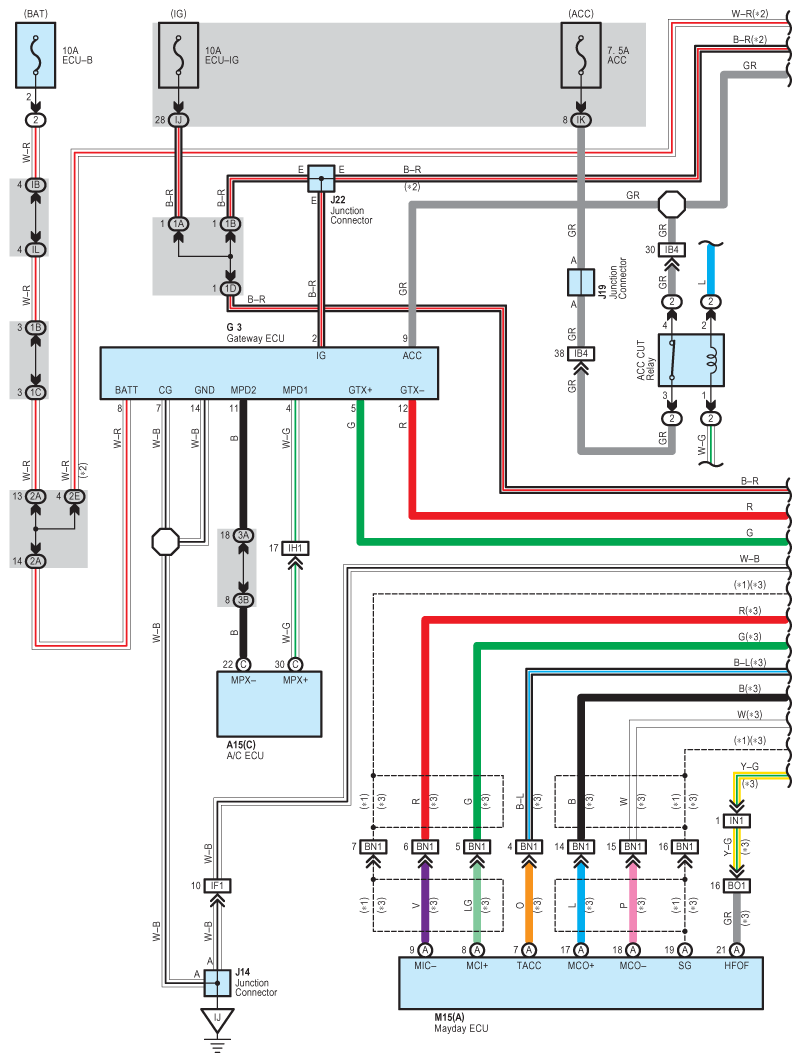

Fig 4: Navigation And Parking Assist With RSES Wiring Diagram (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

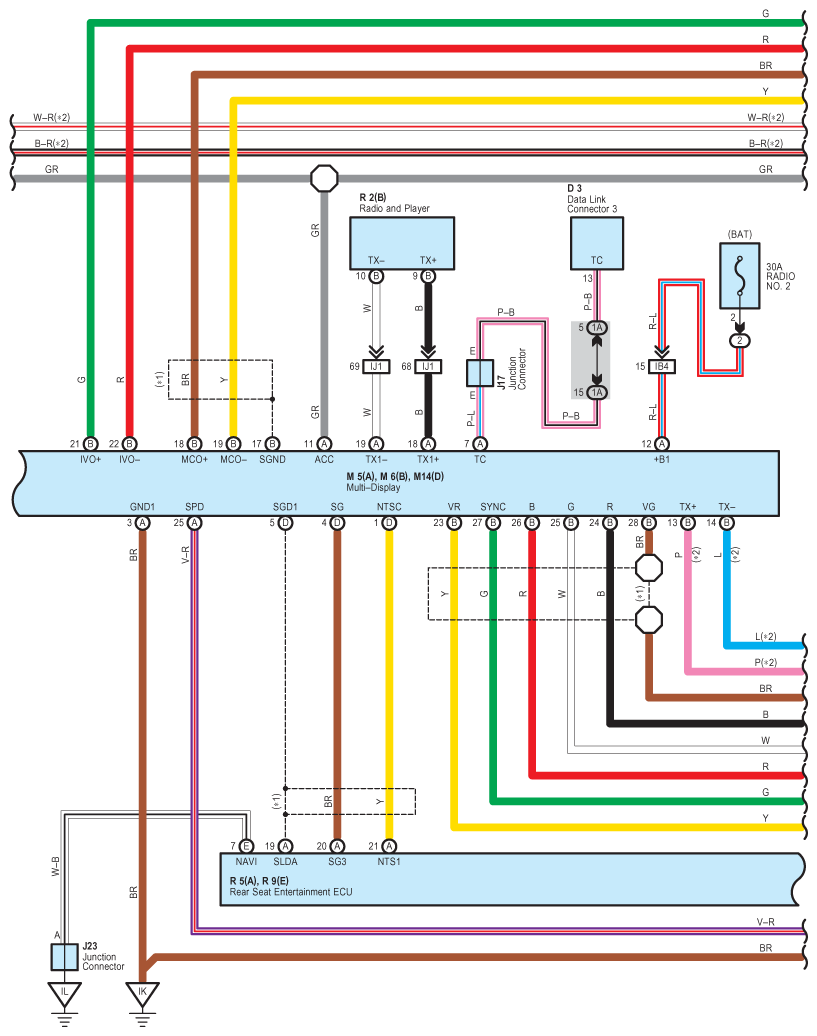

Fig 5: Navigation And Parking Assist With RSES Wiring Diagram (5 Of 7)

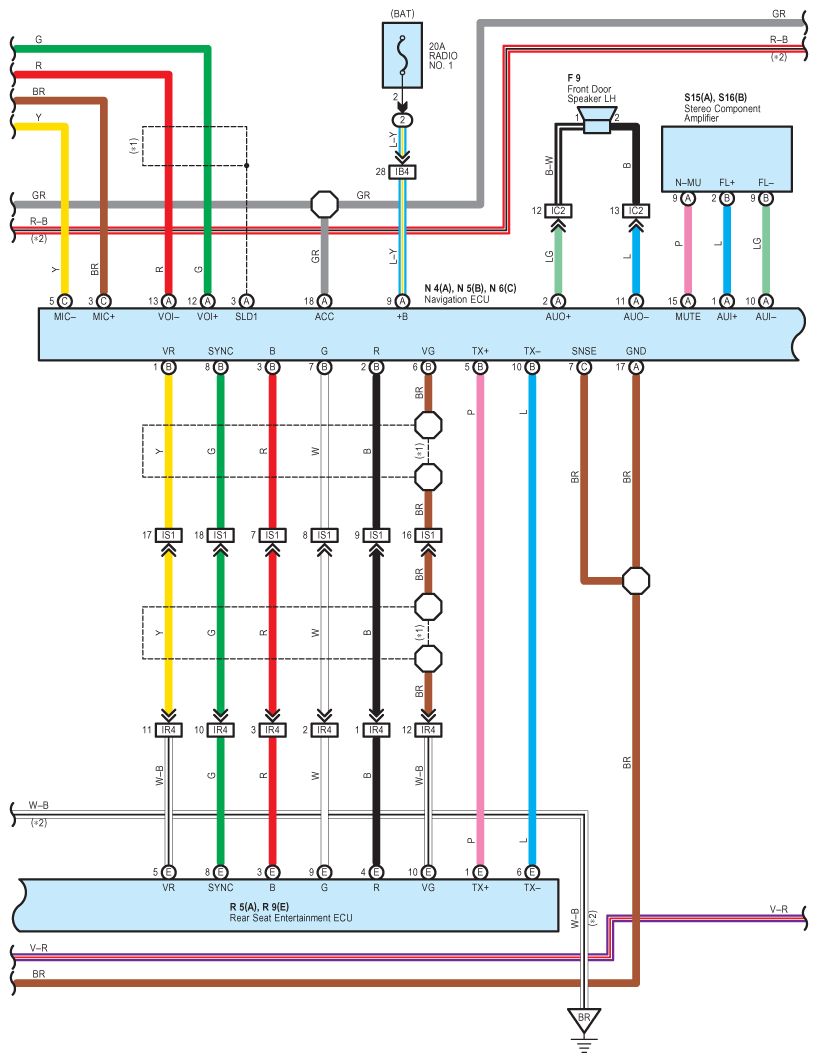

Fig 6: Navigation And Parking Assist With RSES Wiring Diagram (6 Of 7)

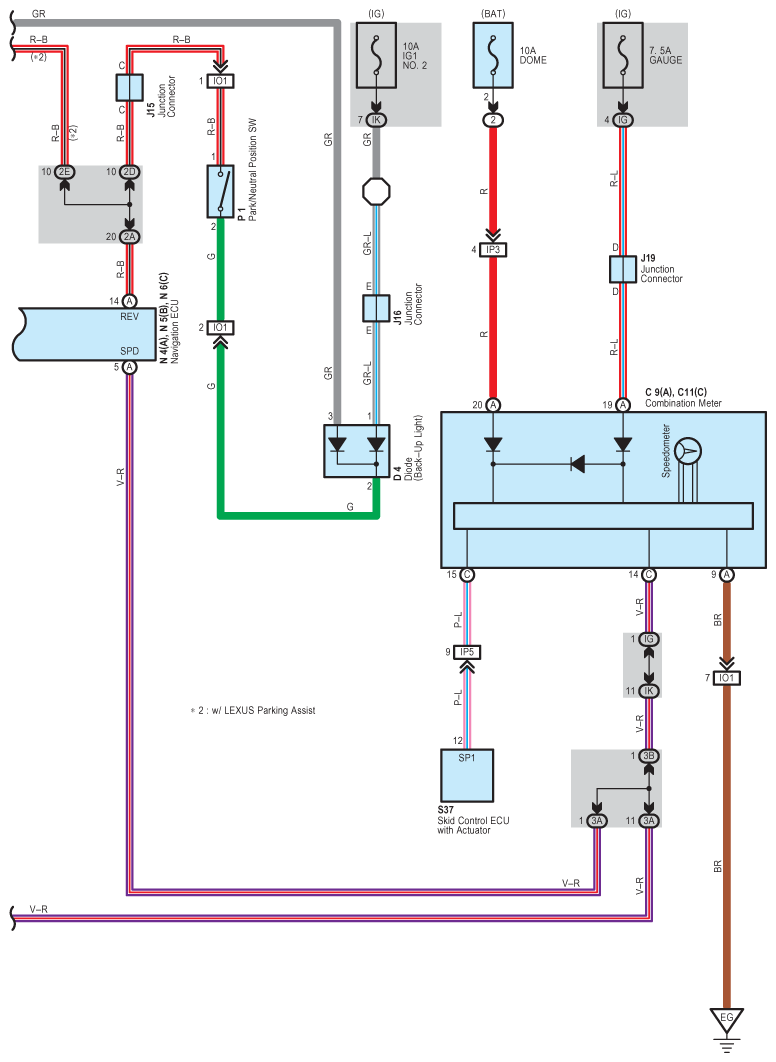

Fig 7: Navigation And Parking Assist With RSES Wiring Diagram (7 Of 7)
