Front Wiper without Rain Sensor and Washer: Notes

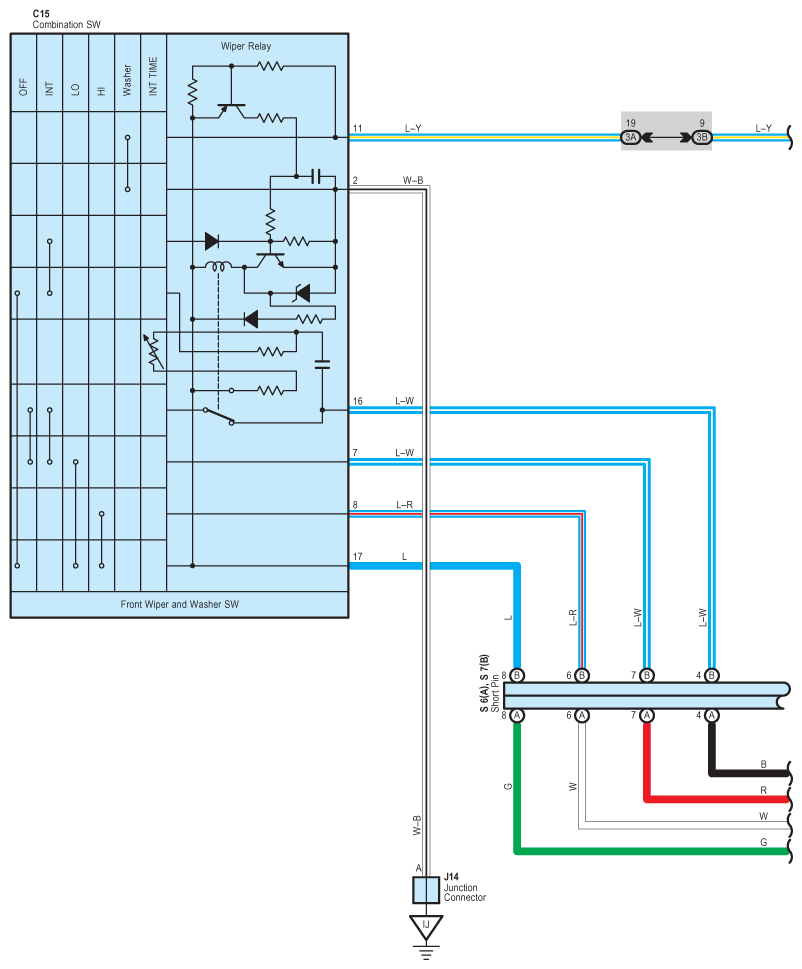

Fig 1: Front Wiper Without Rain Sensor And Washer Wiring Diagram (1 Of 2)
G08910083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

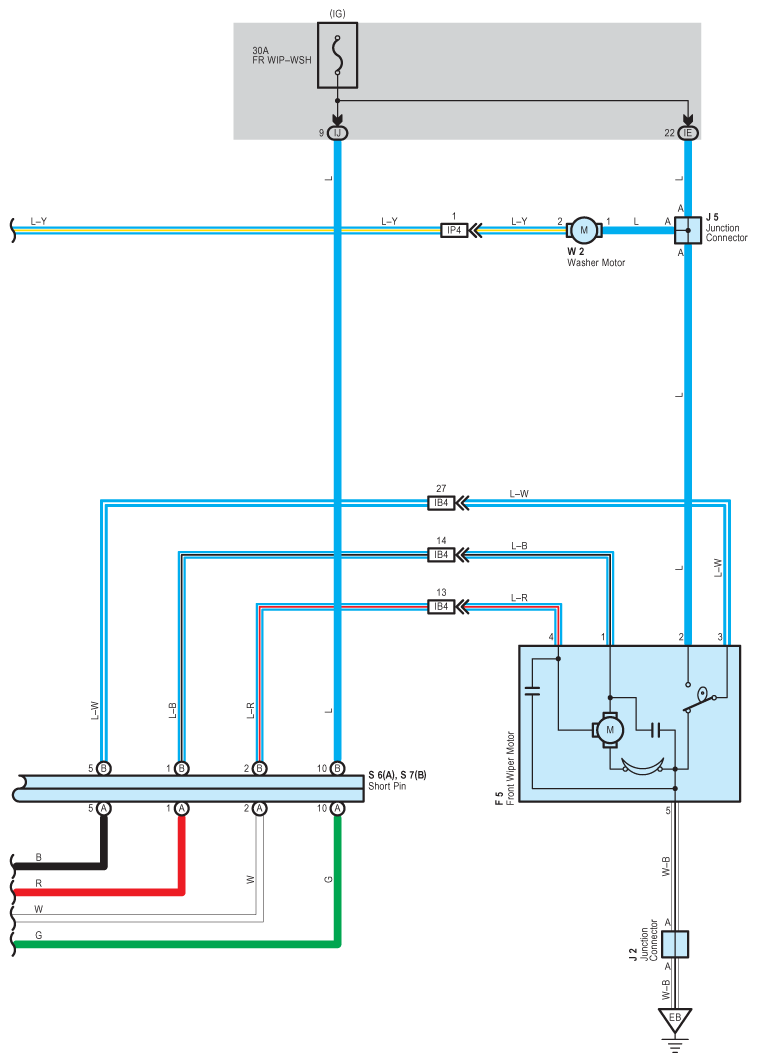

Fig 2: Front Wiper Without Rain Sensor And Washer Wiring Diagram (2 Of 2)
G08910084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
