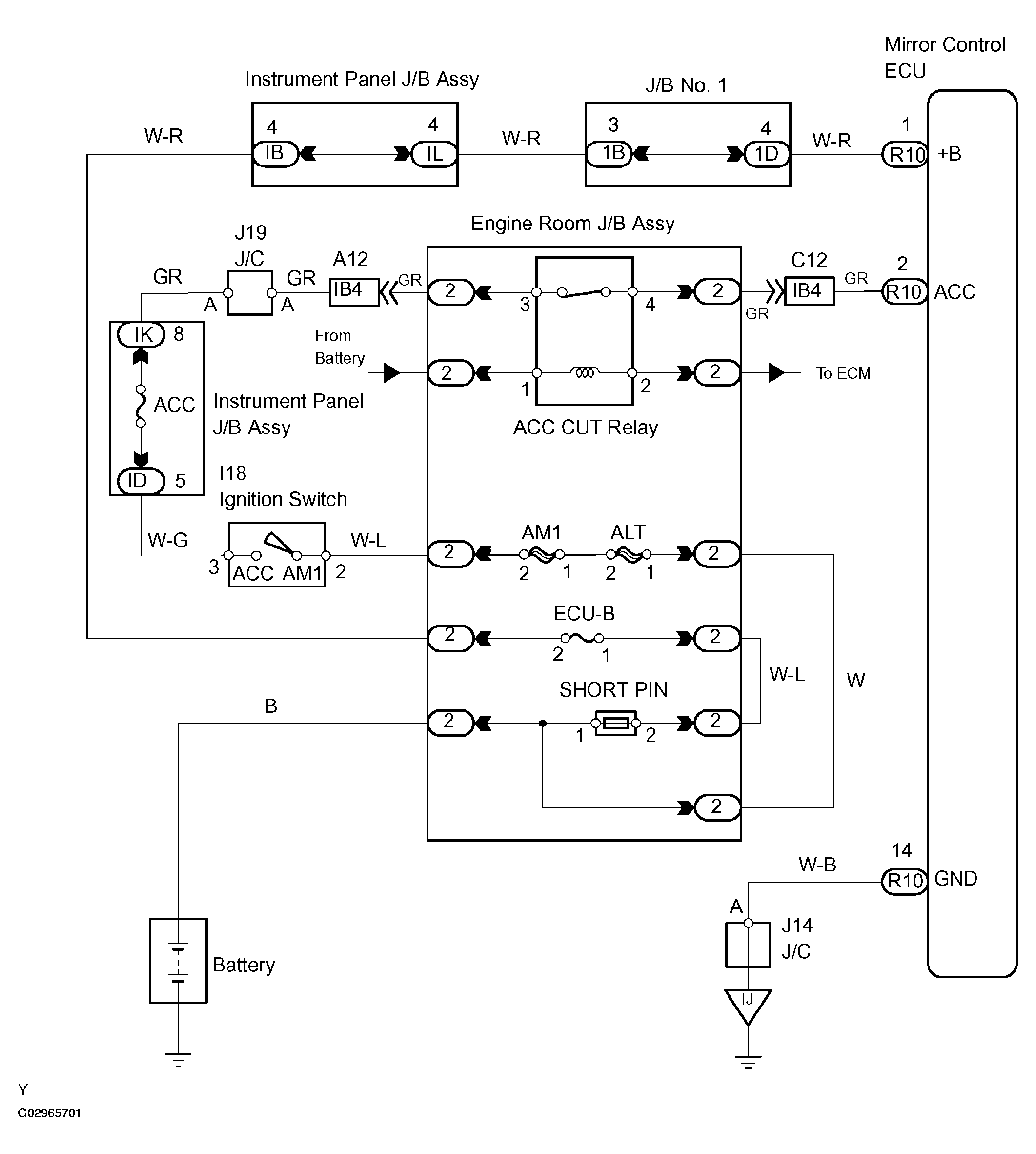

Ecu Power Source Circuit: Wiring Diagram
- CHECK FUSE (ACC, ECU-B)
- Remove the fuses from the instrument panel J/B assy and engine room J/B assy.
- Check the continuity.
Standard: Continuity
- NG: REPLACE FUSE
- OK: Go to next step.
- CHECK OUTER MIRROR CONTROL ECU ASSY (POWER SOURCE)

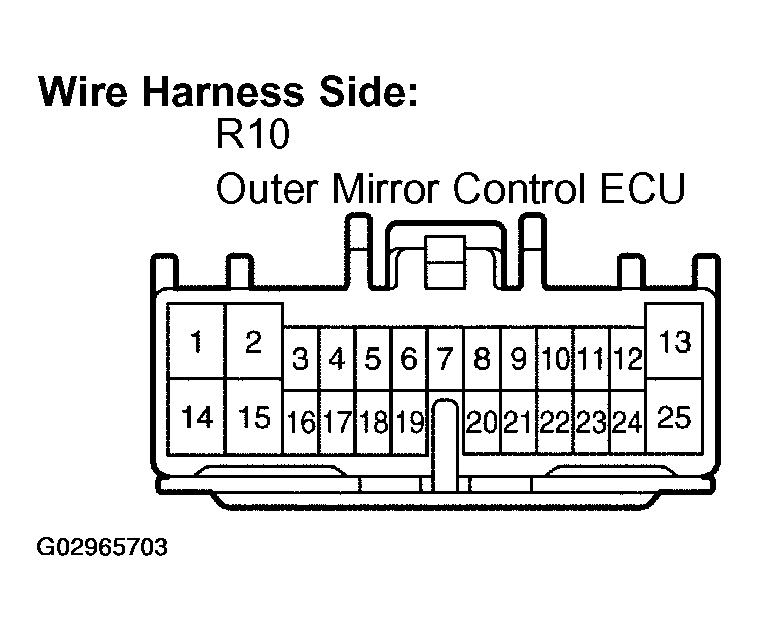

- Disconnect the R10 ECU connector.
- Check the voltage between the R10 ECU and the body ground.
Standard:
OUTER MIRROR CONTROL ECU ASSY (POWER SOURCE)Symbols (Terminal No.) Condition Specified Condition +B (R10-1) <=> Body ground Constant 10 - 14 V ACC (R10-2) <=> Body ground Ignition switch OFF -> ACC 0 V -> 10 - 14 V
- NG: repair or replace harness and connector
- OK: Go to next step.
- CHECK OUTER MIRROR CONTROL ECU ASSY (GROUND)
- Disconnect the R 10 ECU connector.
- Check the continuity between the R10 mirror ECU connector and the body ground.OUTER MIRROR CONTROL ECU ASSY (GROUND)
Symbols (Terminal No.) Condition Specified Condition GND (R10-14) <=> Body ground Constant Continuity
- NG: repair OR replace harness and connector
- OK: CHECK AND REPLACE OUTER MIRROR CONTROL ECU ASSY (SEE ELECTRONIC CIRCUIT INSPECTION PROCEDURE )
