Terminals Of Ecu

HINT:

This part of the article describes the standard CAN values for all CAN related components.

1. CAN J/C
   1. CAN J/C connectors.

      HINT:

      • The connectors connected to the CAN J/C can be distinguished by the colors of the bus lines and the connecting side of the connector.
      • J39, J40, J41 and J42 are interchangeable.

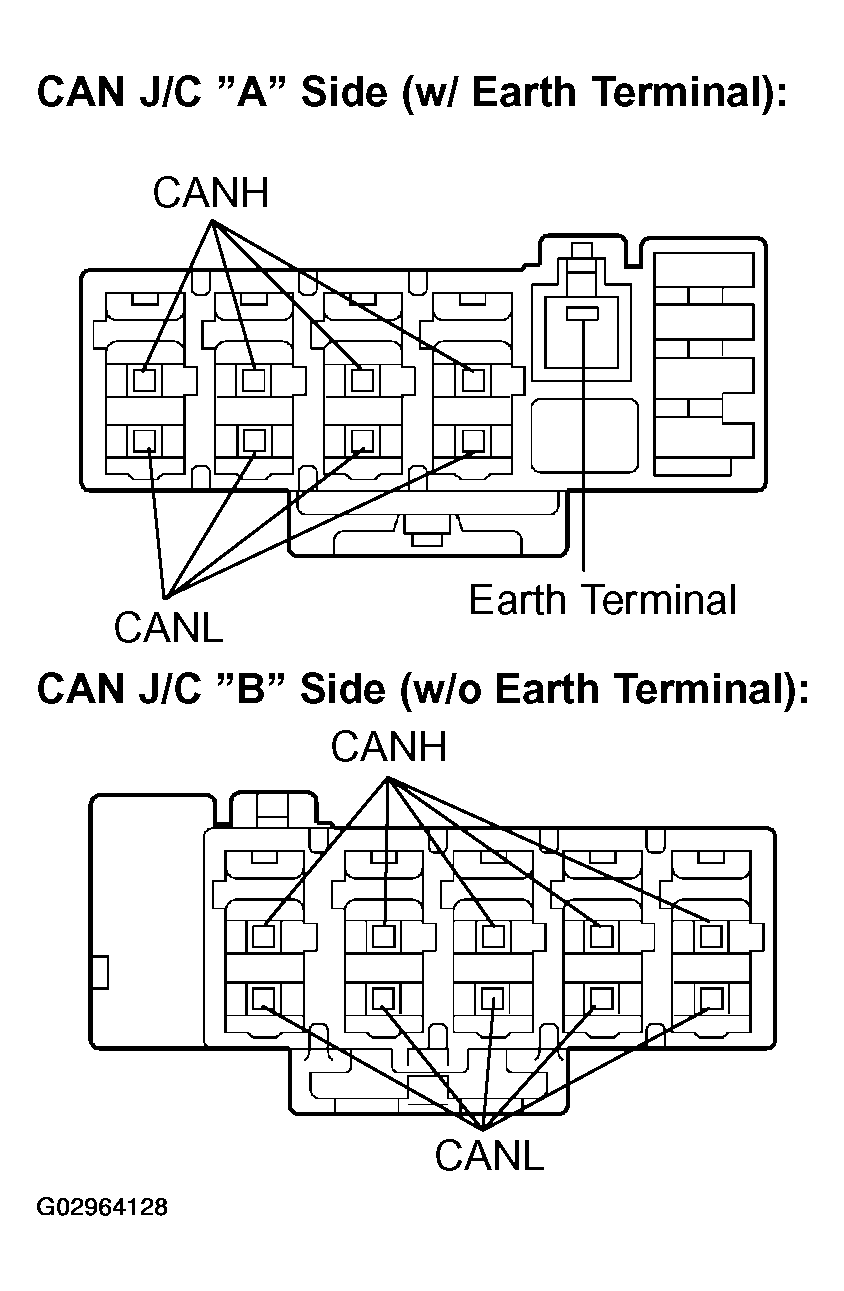

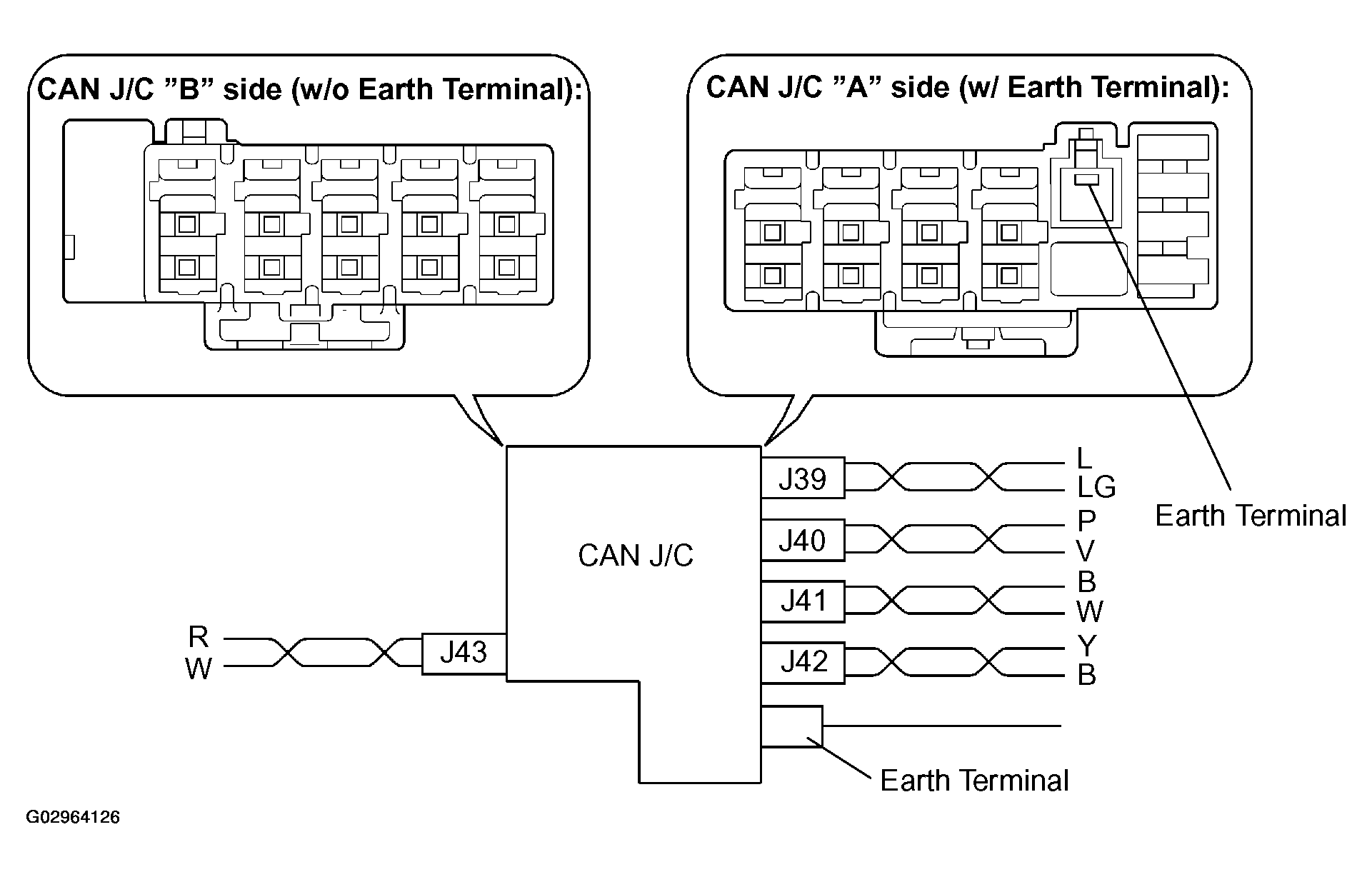

        Fig 1: Identifying CAN J/C Connector Terminals

        Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        COLOR SPECIFICATION



        CAN J/C connectors ("A" side, w/ earth terminal)	Color (CAN-H Side)	Color (CAN-L Side)
        ECM (J39)	L	LG
        DLC3 (J40)	P	V
        Skid Control ECU (J41)	B	W
        Steering angle sensor (J42)	Y	B

        COLOR SPECIFICATION



        CAN J/C connectors ("B" side, w/o earth terminal)	Color (CAN-H Side)	Color (CAN-L Side)
        Yaw rate sensor (J43)	R	W

   2. The terminals of the CAN J/C connectors.
      TERMINAL SPECIFICATION



      Terminal	Terminal symbol
      1	CANH
      2	CANL

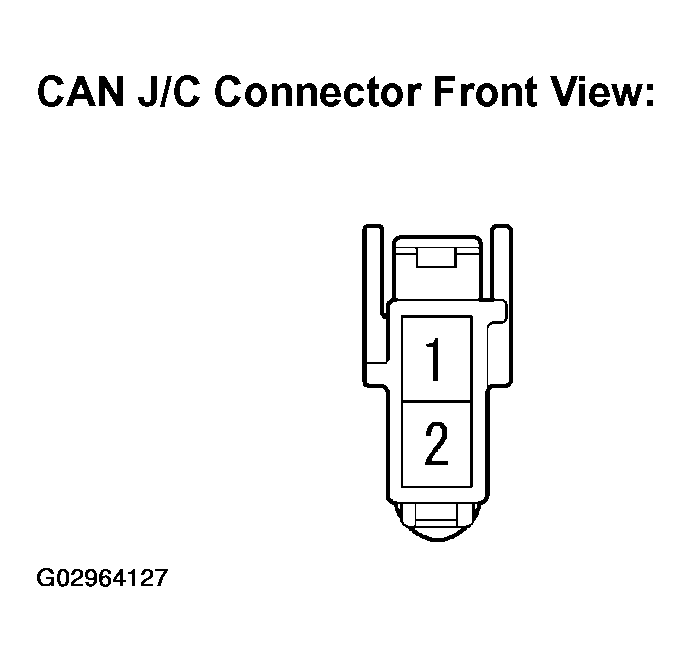

      Fig 2: Identifying CAN J/C Connectors

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Measure the resistance according to the value(s) in TERMINALS SPECIFIED VALUE .

      Standard:

      TERMINALS SPECIFIED VALUE



      Terminals	Specified value
      CANH - CANL	108 to 132 ohms

      Fig 3: Identifying CAN J/C Connectors - (With & Without Earth Terminal)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. DLC3
   1. Check the DLC3.
      1. Measure the resistance according to the value(s) in Fig 5.

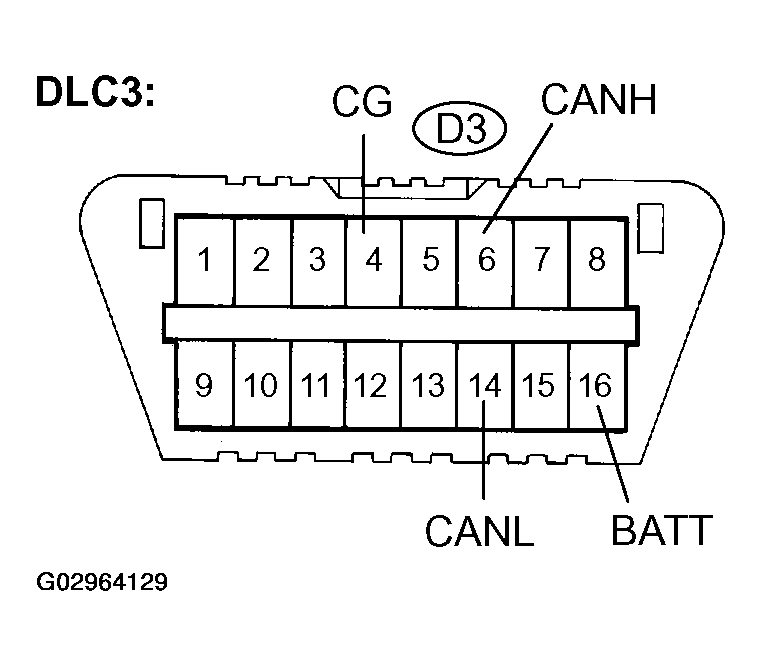

         Fig 4: Checking DLC3 Connector Terminal

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

         Standard:

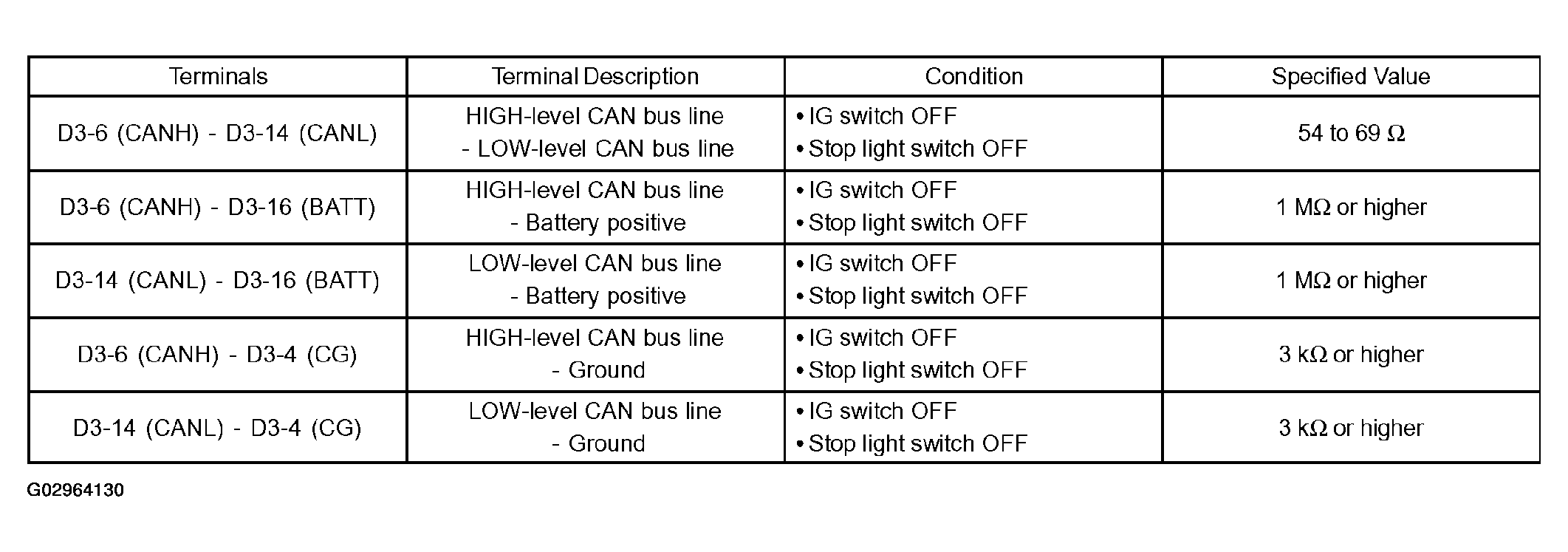

         Fig 5: Terminal Description Specified Value Table

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. SKID CONTROL ECU
   1. Check the skid control ECU harness side connector (S37).
      1. Disconnect the connector (S37) from the skid control ECU.
      2. Measure the resistance according to the value(s) in Fig 7.

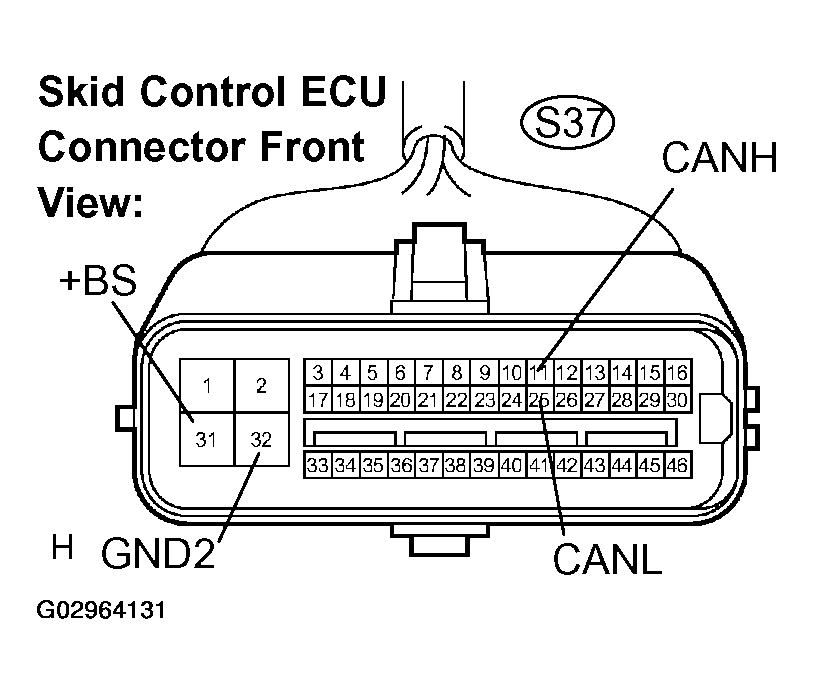

         Fig 6: Disconnecting Connector (S37) From Skid Control ECU

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

         Standard:

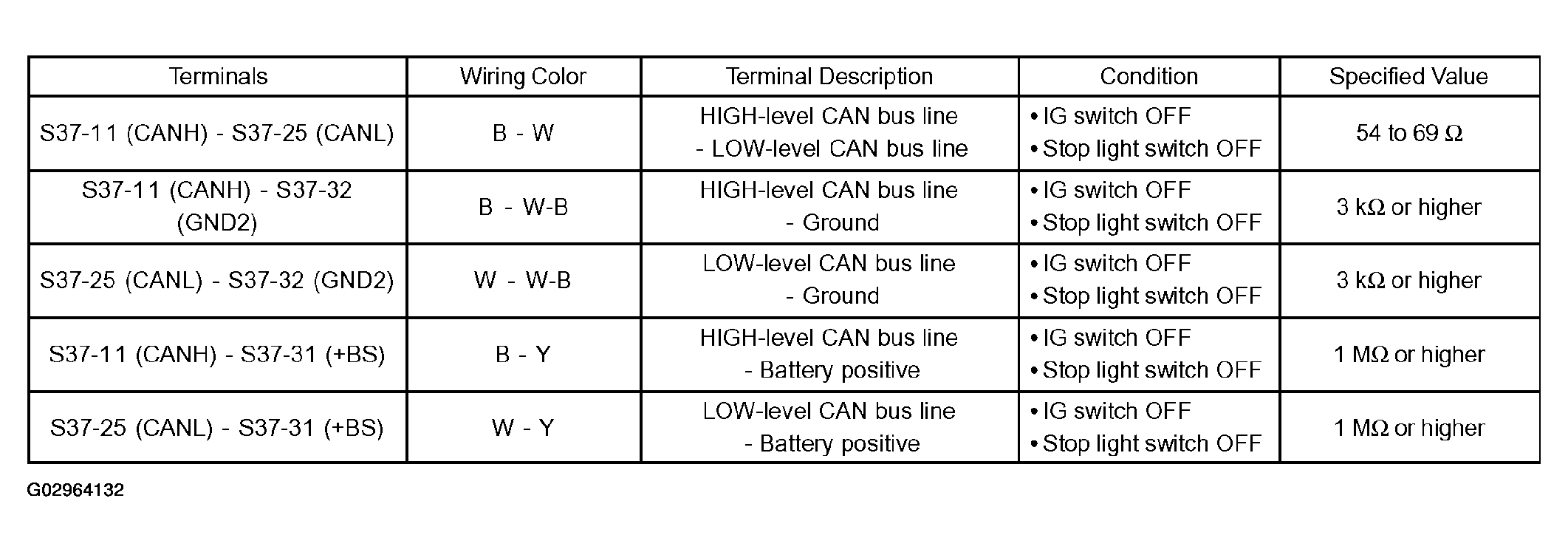

         Fig 7: Terminal Description Specified Value Table

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. STEERING ANGLE SENSOR
   1. Check the harness side connector (S12) of the steering angle sensor.
      1. Disconnect the connector (S12) from the steering angle sensor.
      2. Measure the resistance according to the value(s) in Fig 9.

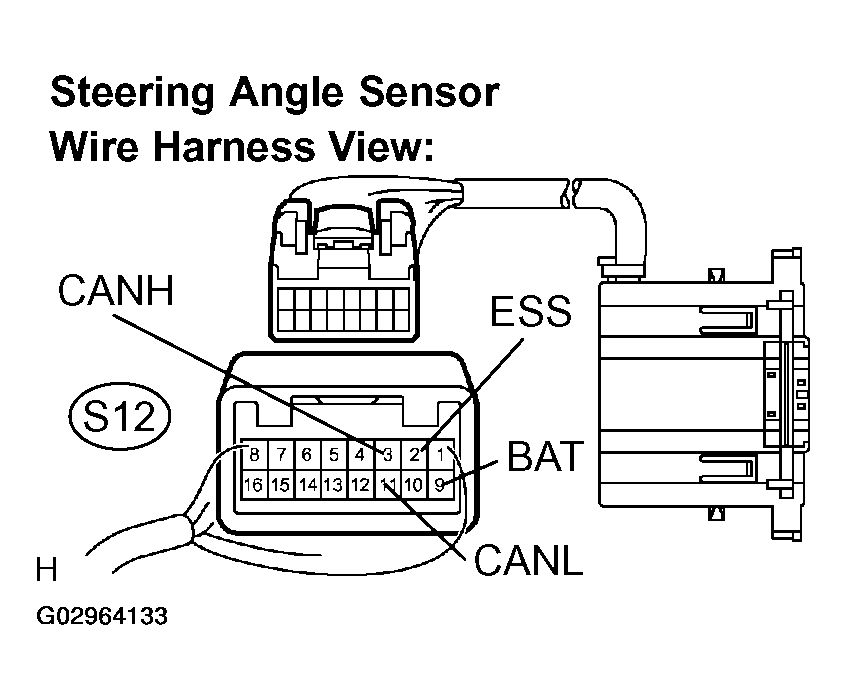

         Fig 8: Disconnecting Connector (S12) From Steering Angle Sensor

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

         Standard:

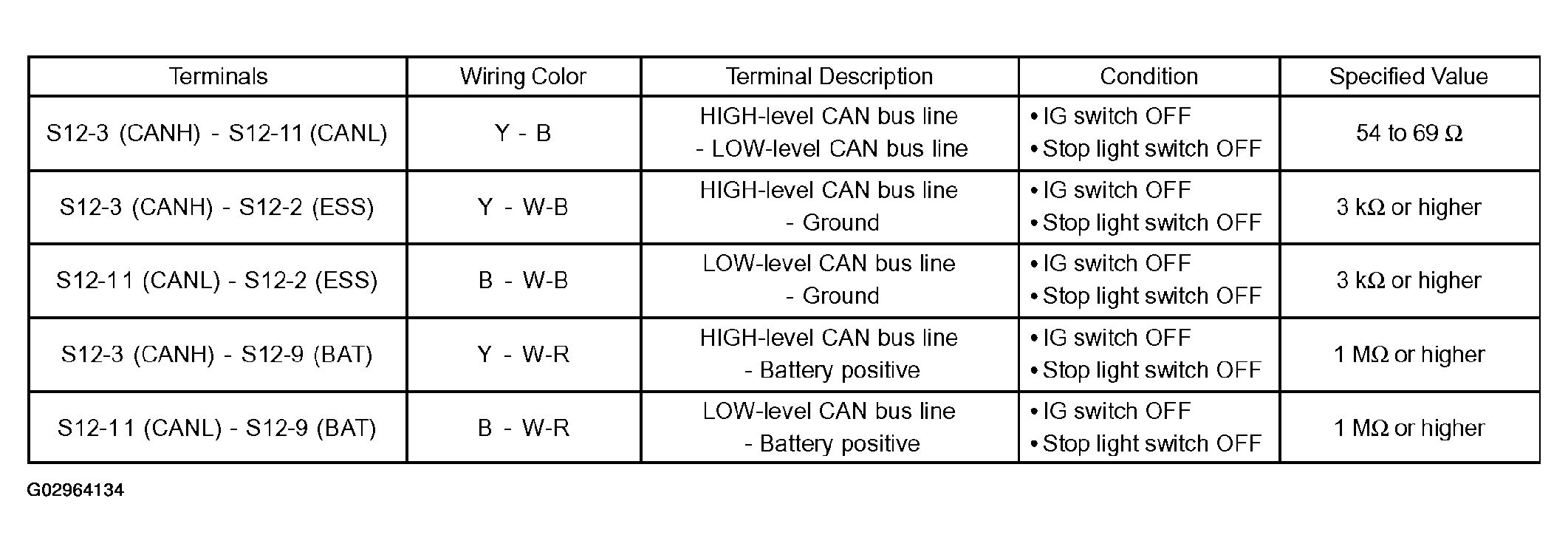

         Fig 9: Terminal Description Specified Value Table

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. YAW RATE SENSOR

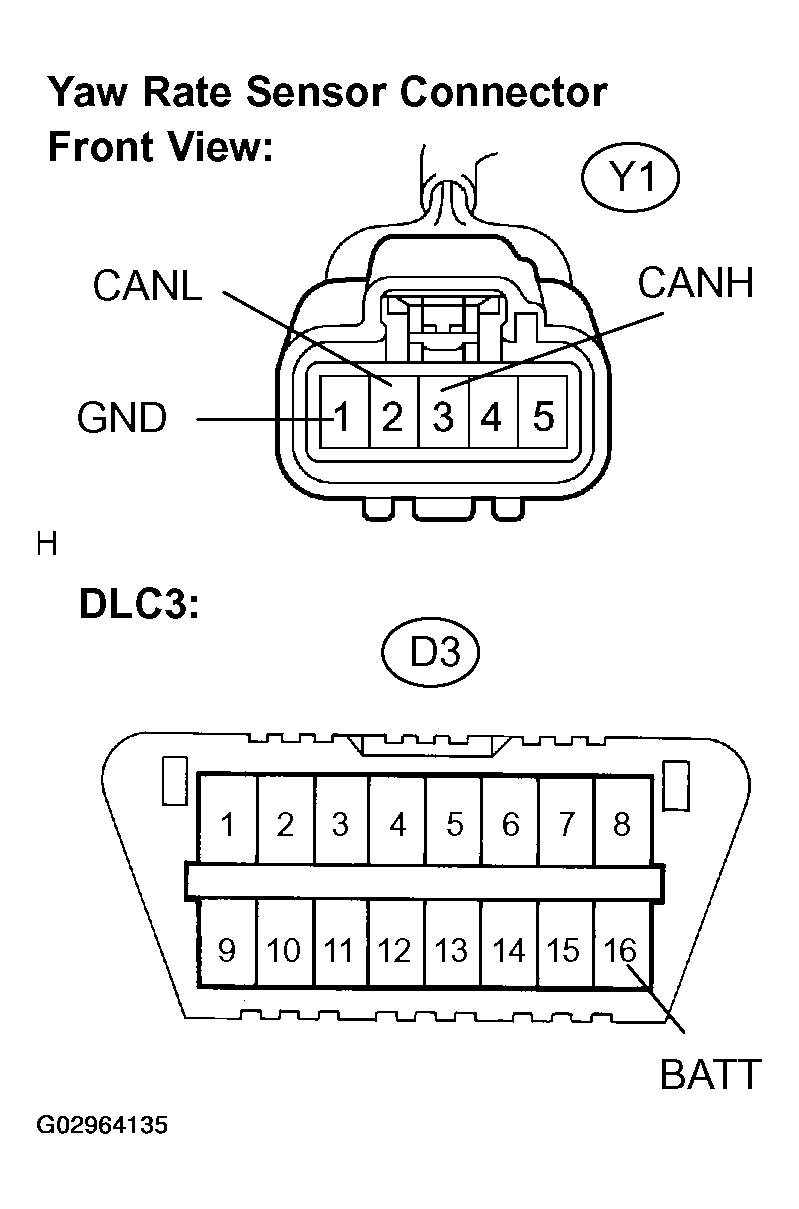

   1. Check the yaw rate sensor harness side connector (Y1).
      1. Disconnect the connector (Y1) from the yaw rate sensor.
      2. Measure the resistance according to the value(s) in Fig 11.
         Fig 10: Disconnecting Connector (Y1) From Yaw Rate Sensor

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

         Standard:

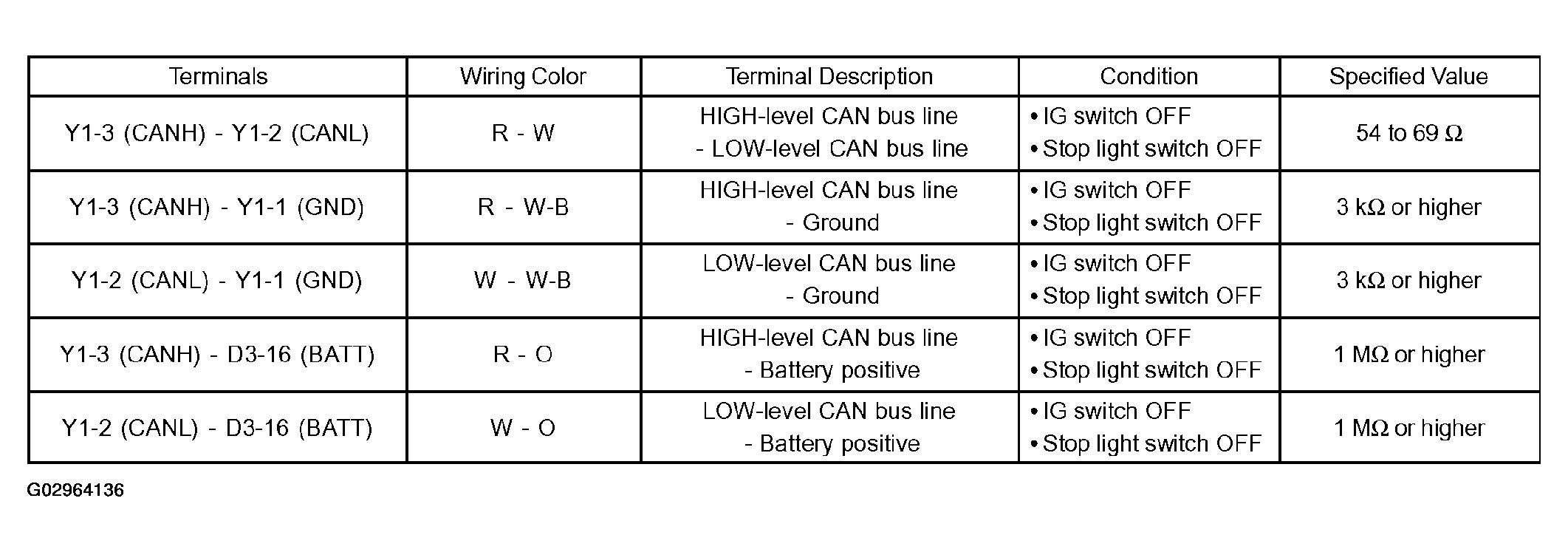

         Fig 11: Terminal Description Specified Value Table

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. ECM
   1. Measure the resistance according to the value(s) in Fig 13.

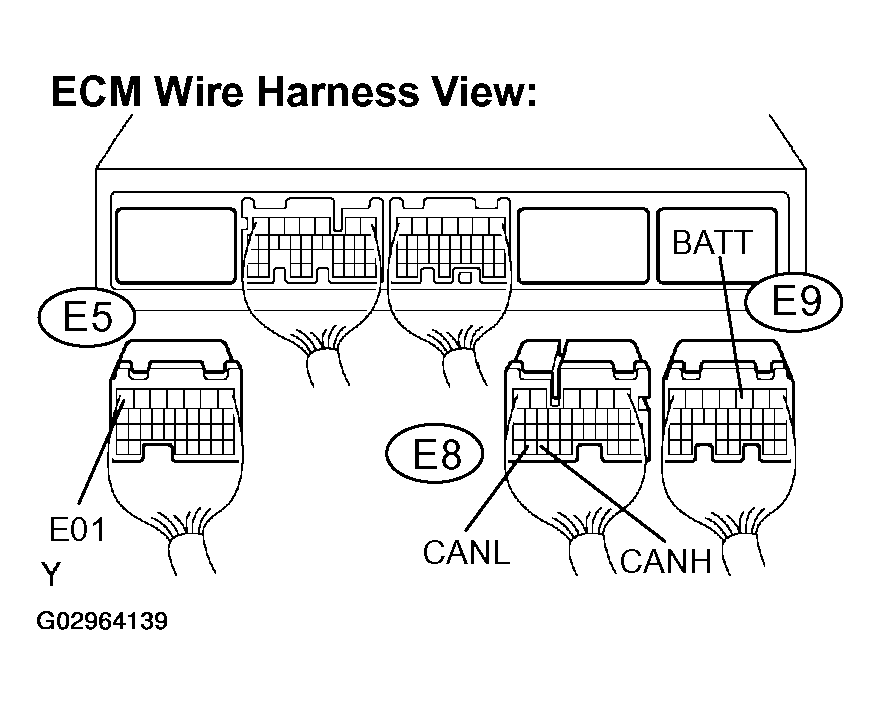

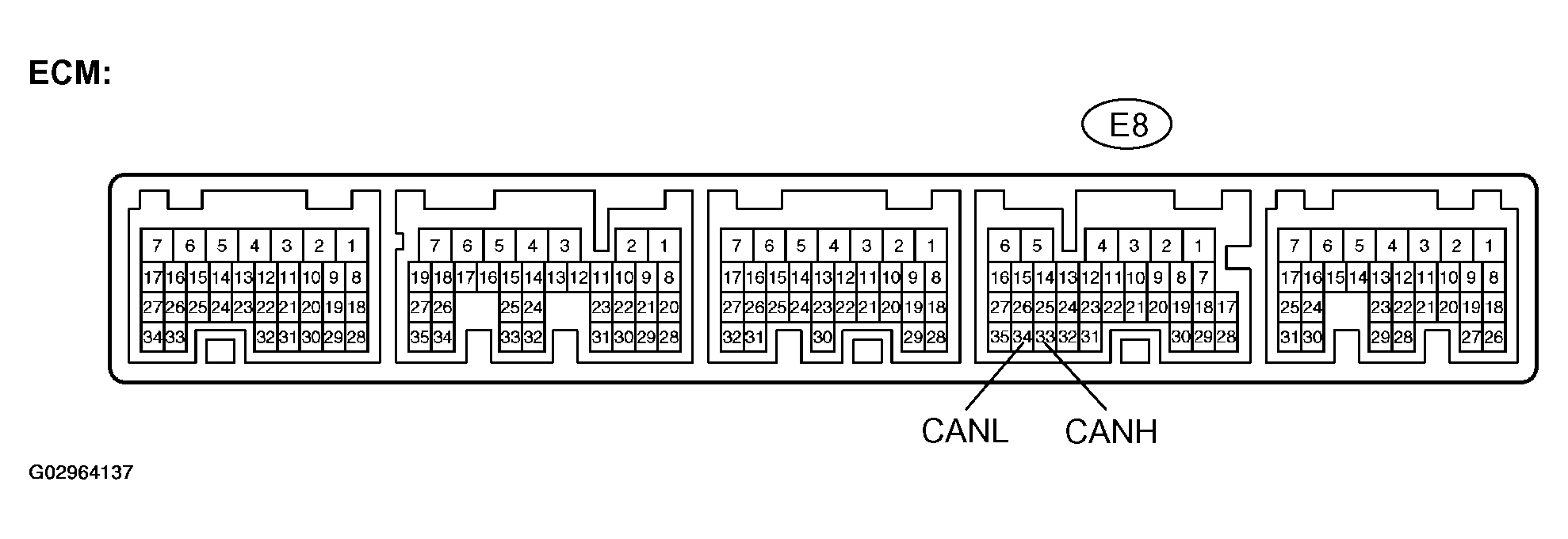

      Fig 12: Identifying ECM Connector Terminal

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

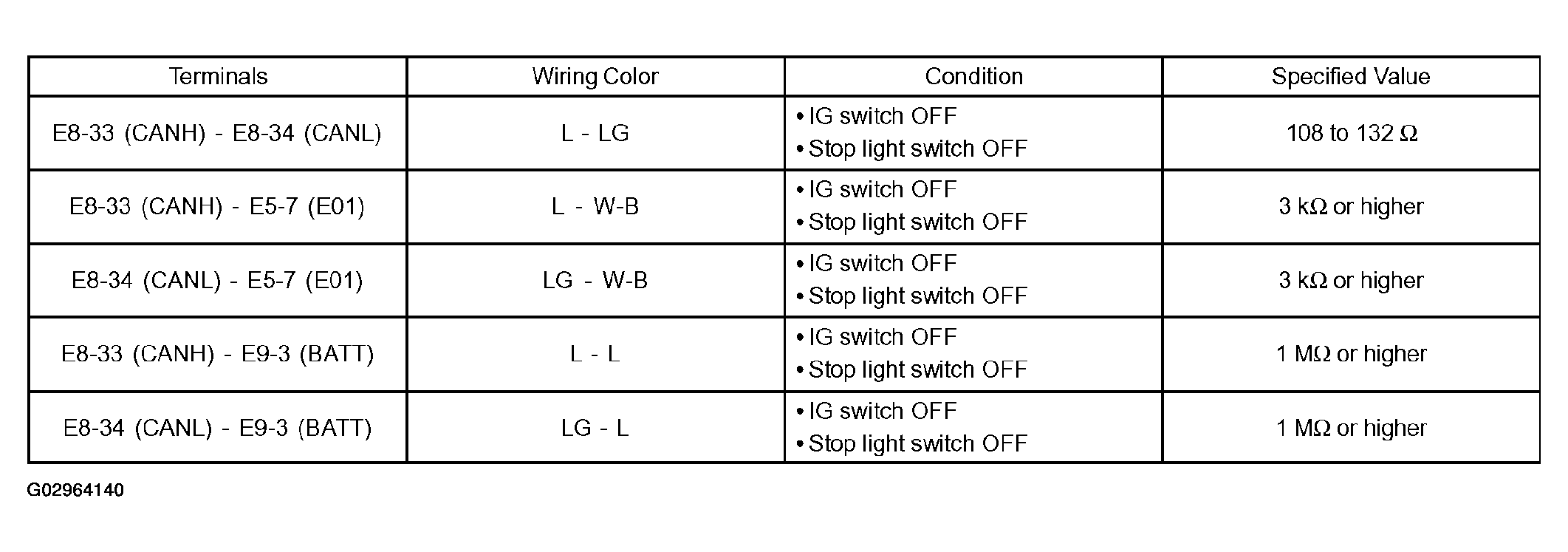

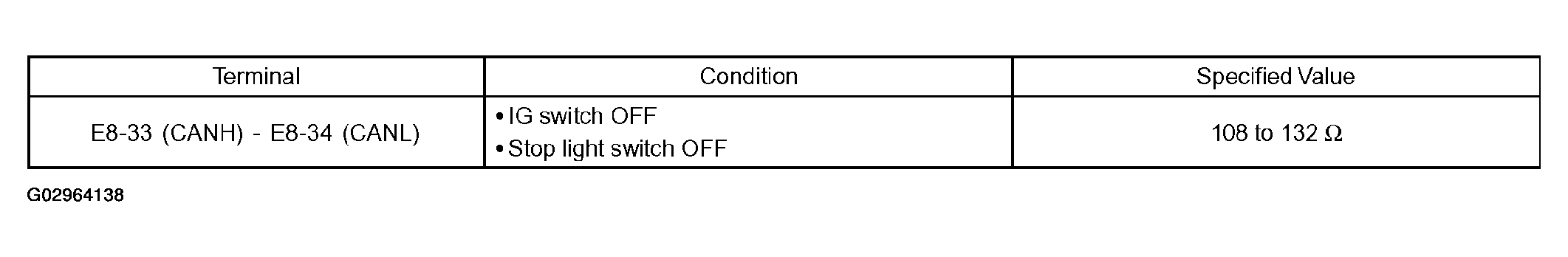

      Fig 13: Terminal Specified Value Table

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Measure the resistance according to the value(s) in Fig 15.
      Fig 14: Disconnecting Connecting Terminal

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard:

      Fig 15: Terminal Specified Value Table

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
