System Diagram

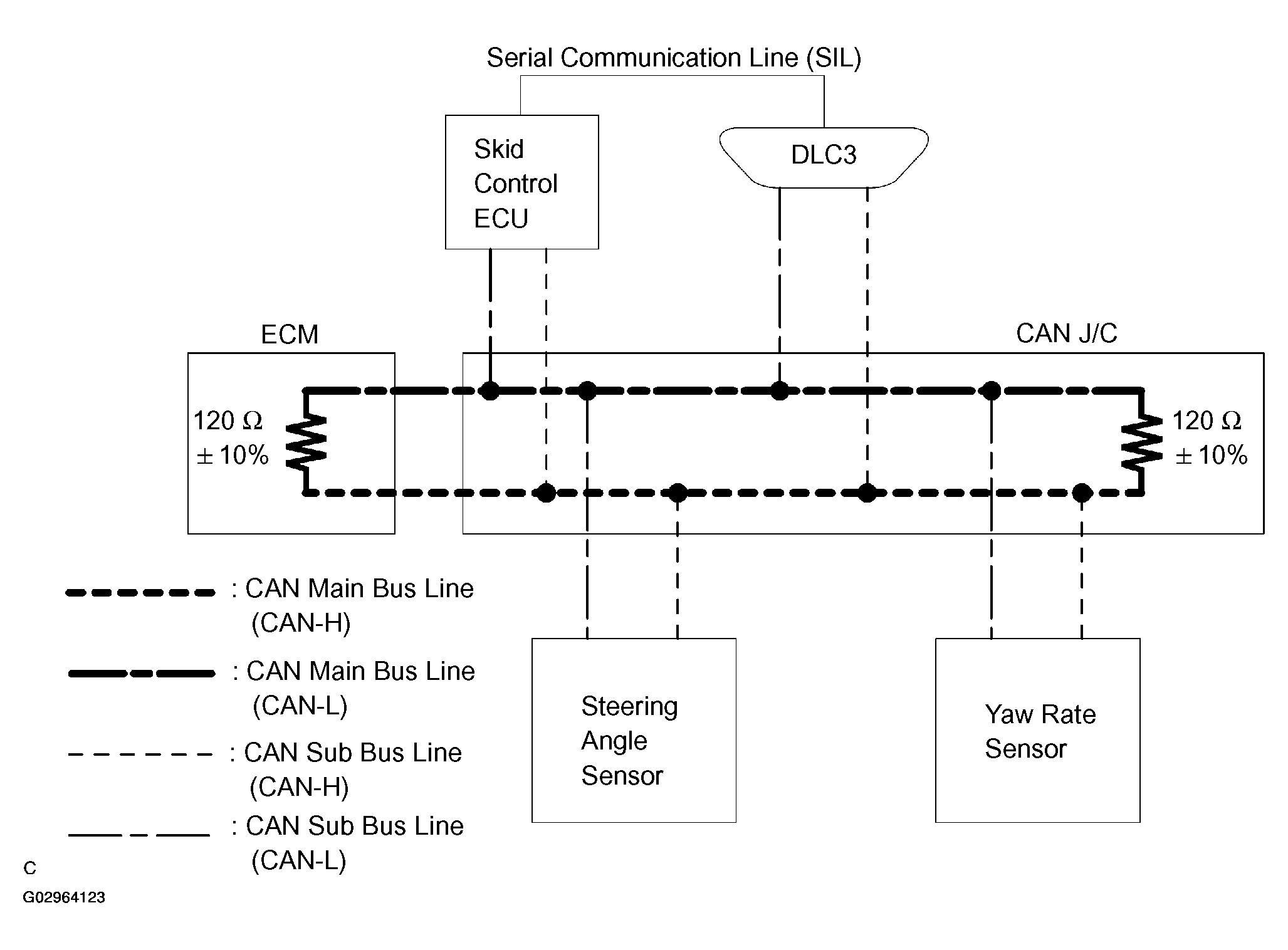

Fig 1: System Diagram Of CAN Communication System

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

• The skid control ECU stores DTCs and performs DTC communication by receiving information from the steering angle sensor and yaw rate sensor. These sensors cannot store DTCs or perform DTC communication.
• The ECM uses the CAN communication system to perform DTC communication instead of the conventional serial communication line (SIL).
