Can Communication System: Location

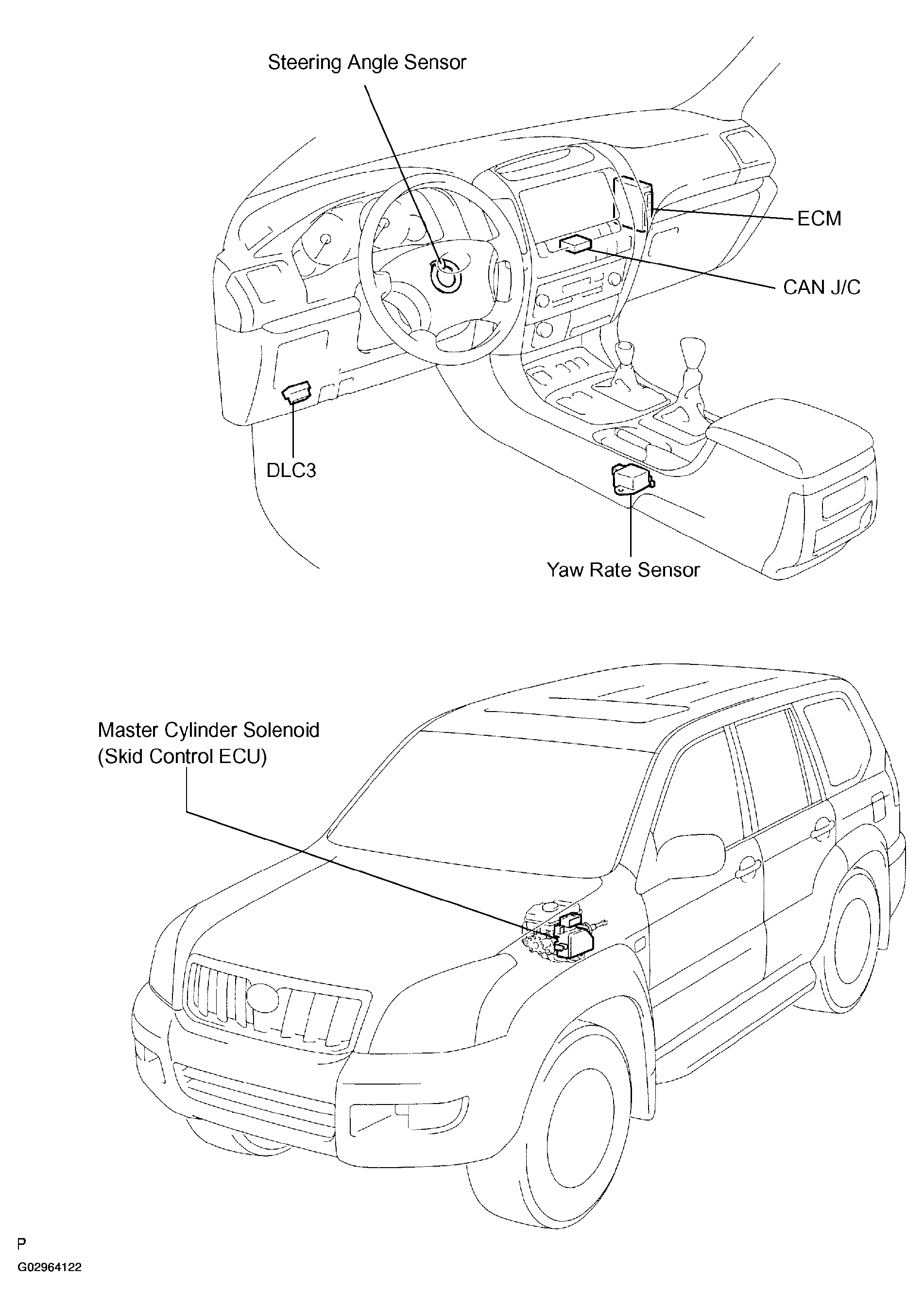

Fig 1: Identifying Location Of CAN Communication System Components

G02964122

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
