Diagnosis System

HINT:

The ECUs and sensors that are properly connected to the CAN communication system can be displayed using the hand-held tester via the CAN VIM.

1. Select "BUS CHECK" from the "OBD/MOBD MENU" screen.

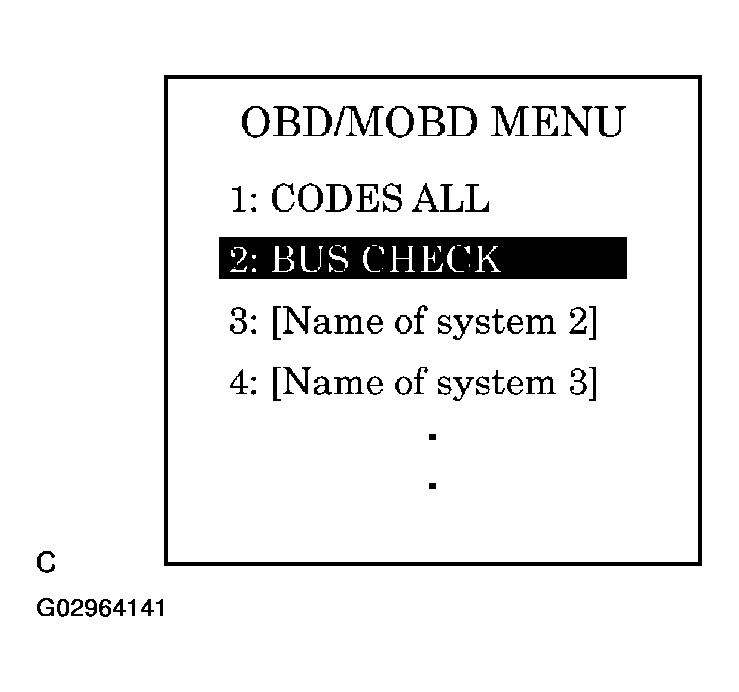

   Fig 1: Displaying BUS CHECK Mode

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Press "ENTER" on the hand-held tester via the CAN VIM.

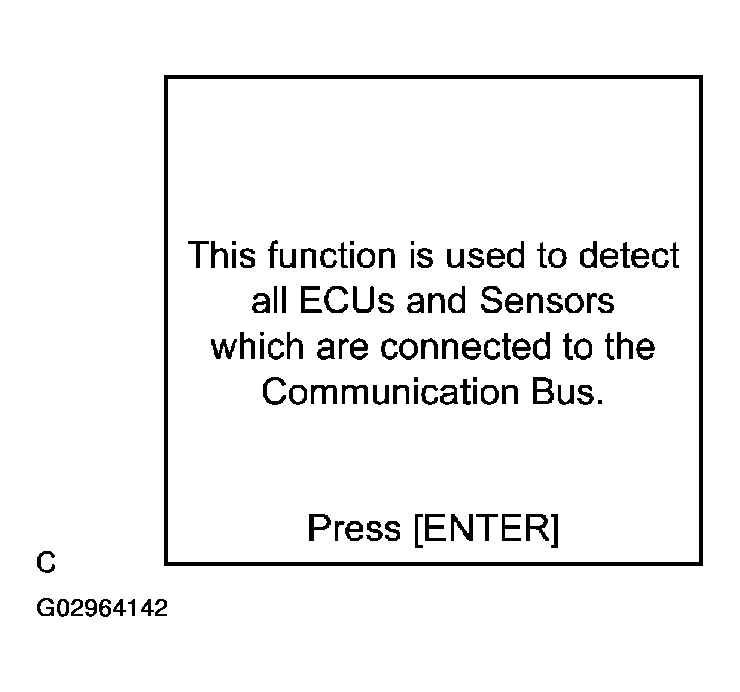

   Fig 2: Displaying ENTER Mode

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. The screen displays the ECUs and sensors that are properly connected to the CAN communication system.

   HINT:

   There is a communication stop in the system of any properly connected ECUs or sensors that are not displayed (See PROBLEM SYMPTOMS TABLE  ).

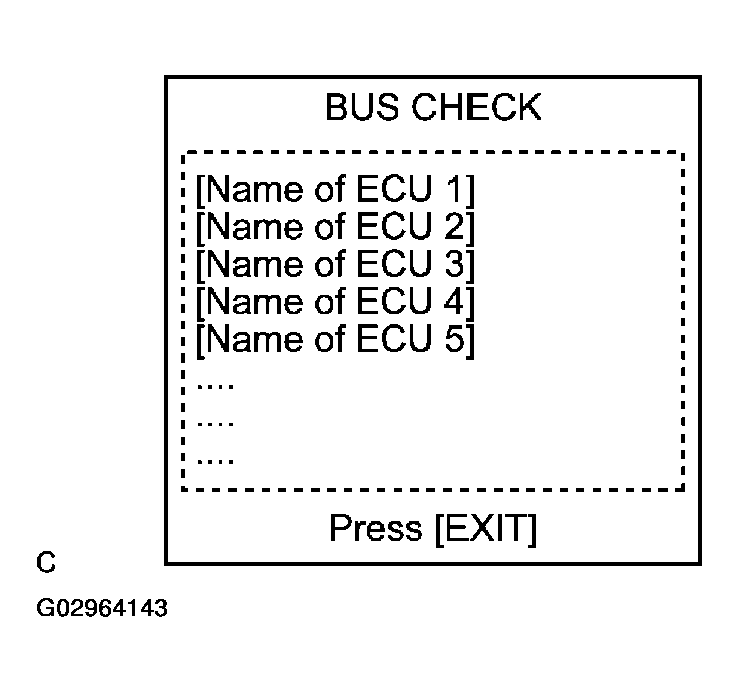

   Fig 3: Displaying BUS CHECK Mode

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
