Check For An Open In One Side Of Can Sub Bus Line: Wiring Diagram

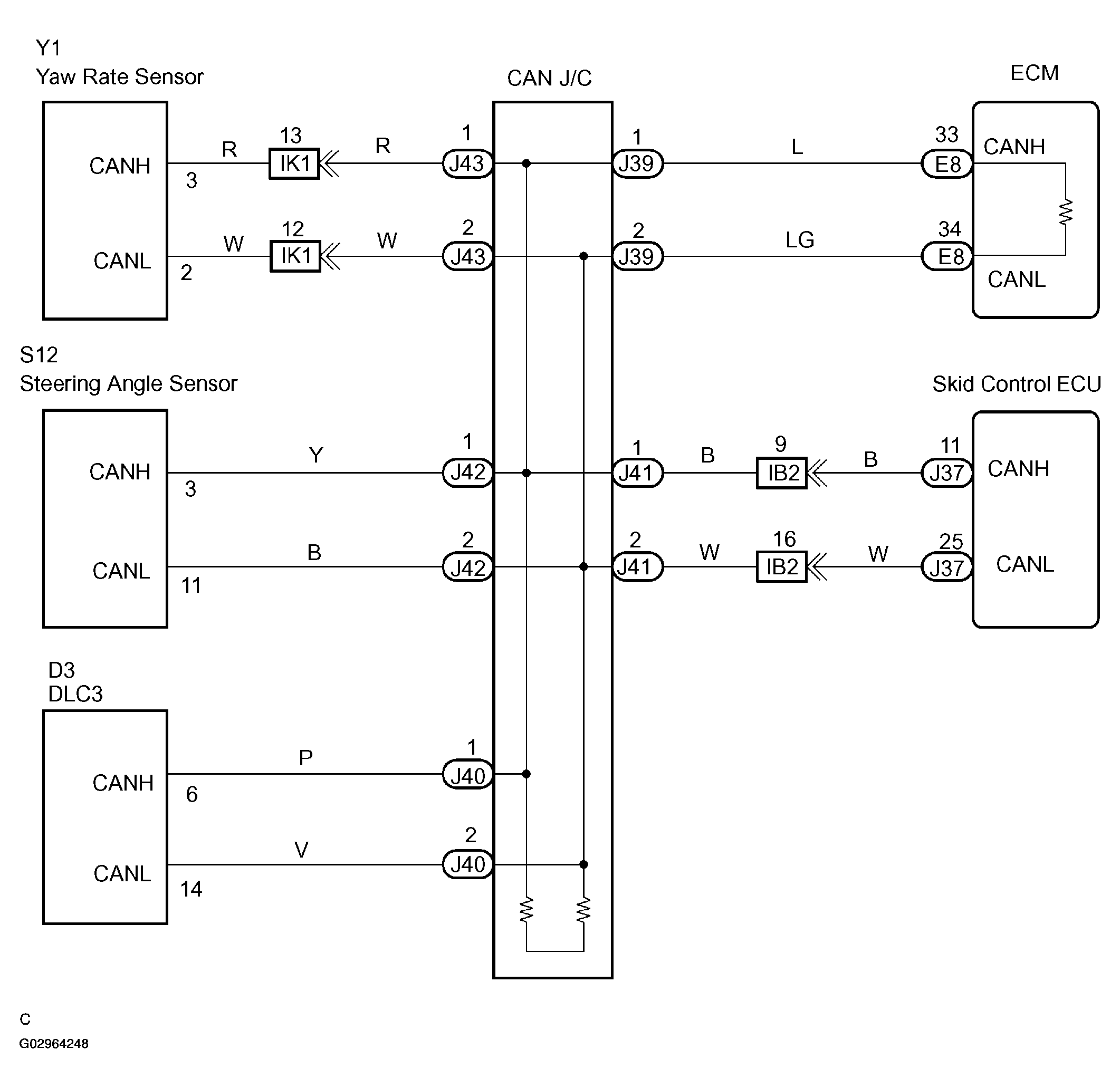

Fig 1: CAN J/C Wiring Diagram

G02964248

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
