Circuit Description

If 2 or more ECUs and/or sensors do not appear on the hand-held tester's "BUS CHECK" screen via the CAN VIM, one side of the CAN sub-bus line may be open. (One side of the CAN-H [sub-bus line]/CAN-L [sub-bus line] of the ECU and/or sensor is open.)

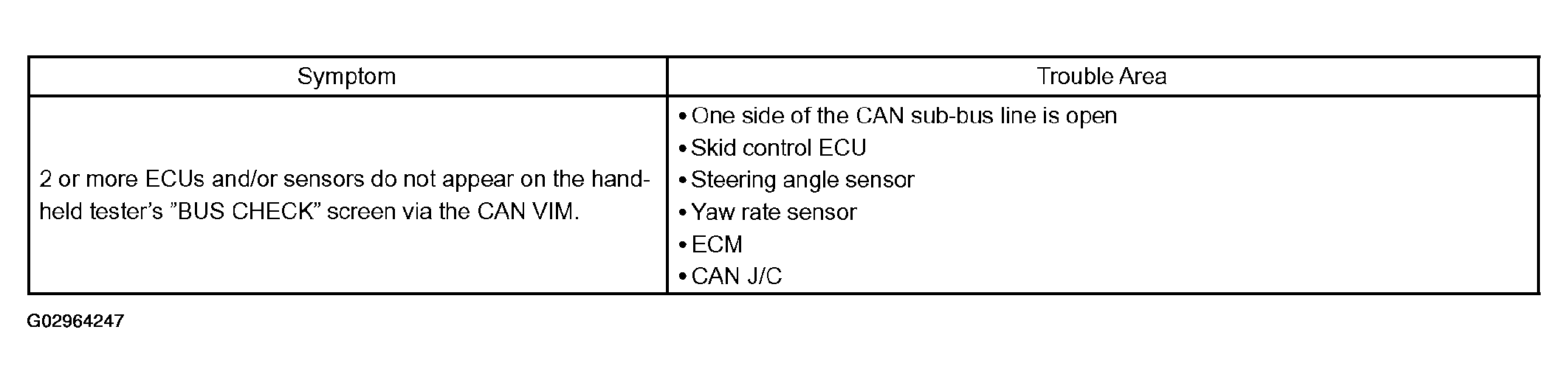

Fig 1: Symptom Table
G02964247Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
