Check Can Main Bus Line For Disconnection: Wiring Diagram

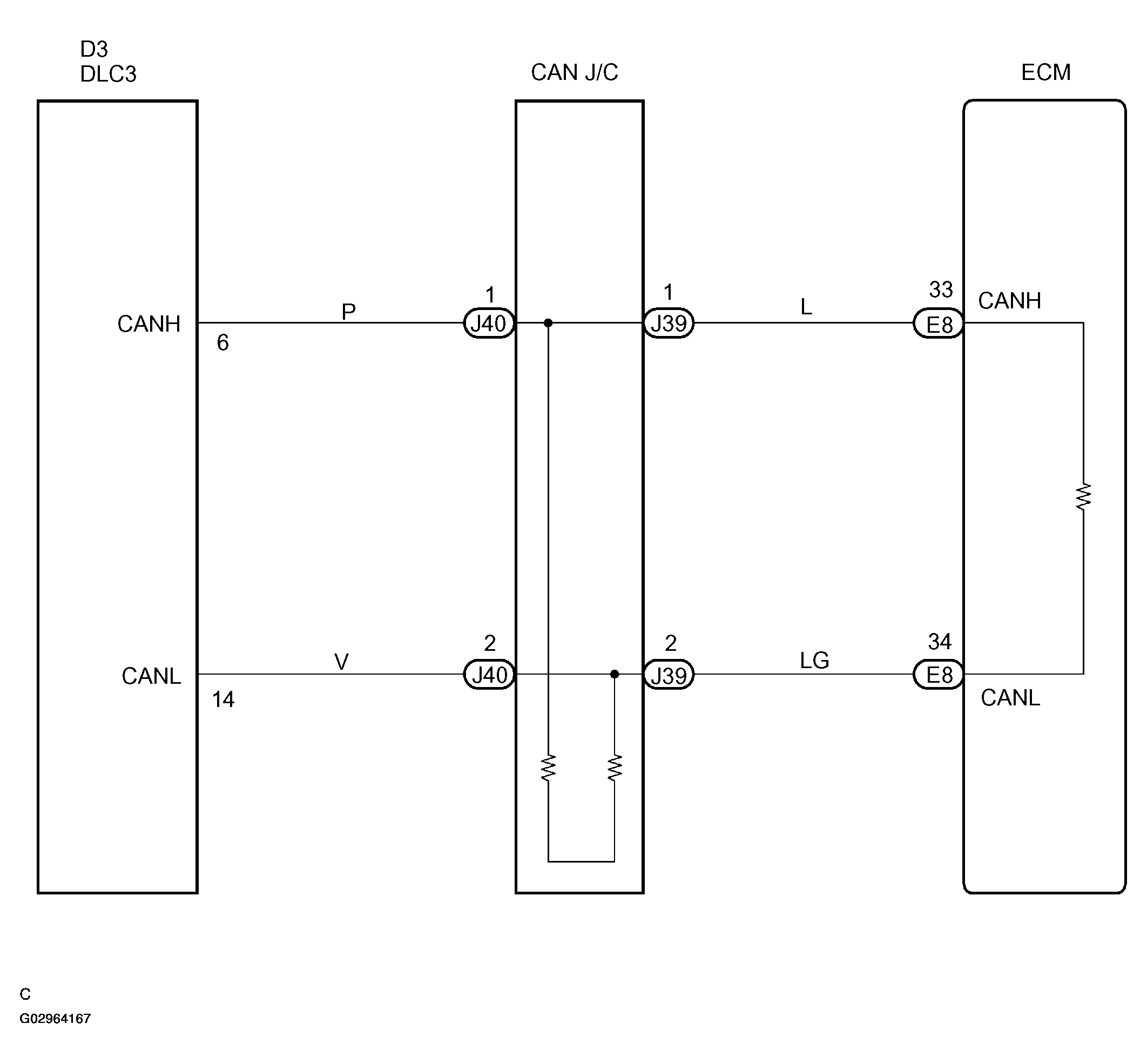

Fig 1: CAN Main Bus Line Wiring Diagram

G02964167

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
