Circuit Description

A short to GND is suspected in the CAN bus line when there is continuity between terminals 4 (CG) and 6 (CANH) or terminals 4 (CG) and 14 (CANL) of the DLC3.

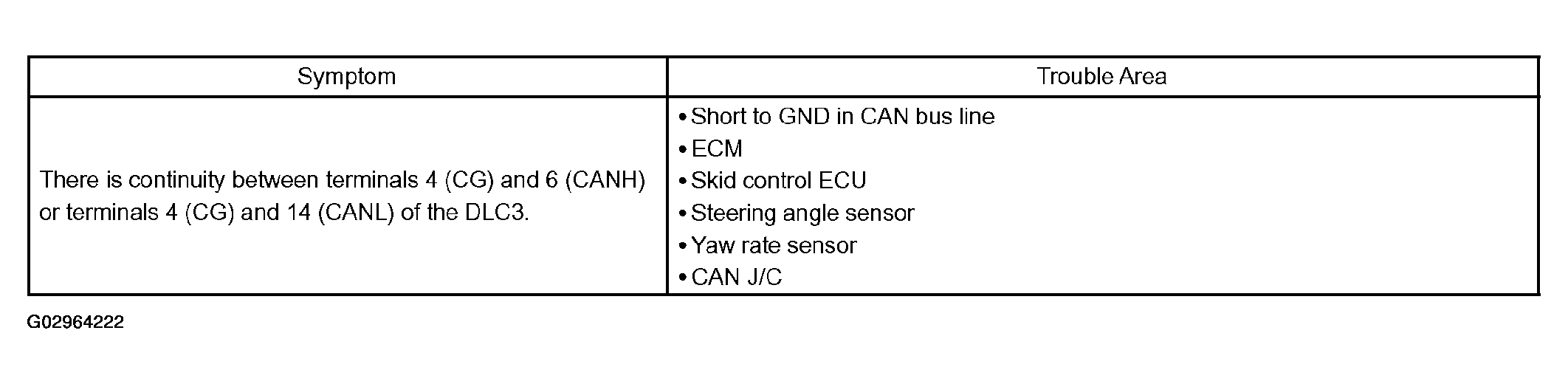

Fig 1: Symptom Table
G02964222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
