Circuit Description

A short to +B is suspected in the CAN bus line when there is continuity between terminals 16 (BATT) and 6 (CANH) or terminals 16 (BATT) and 14 (CANL) of the DLC3.

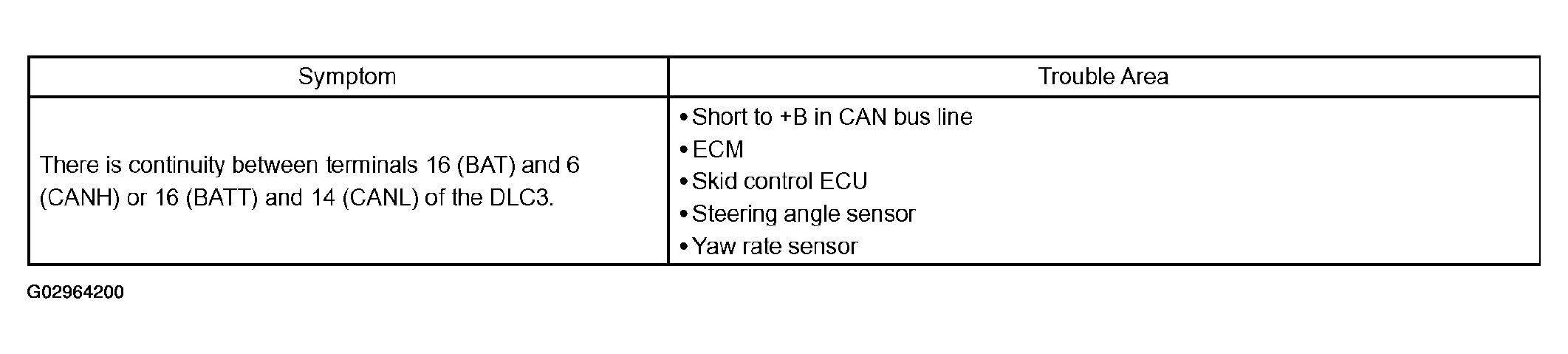

Fig 1: Symptom Table
G02964200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
