Shift Solenoid Valve: Inspection

  1. INSPECT SHIFT SOLENOID VALVE SL1
    1. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Specified Condition 20°C (68°F)
      1 - 2 5.0 to 5.6 Ω
    2. Connect the positive (+) lead with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector, then check the movement of the valve.

      OK:

      The solenoid makes an operating noise.

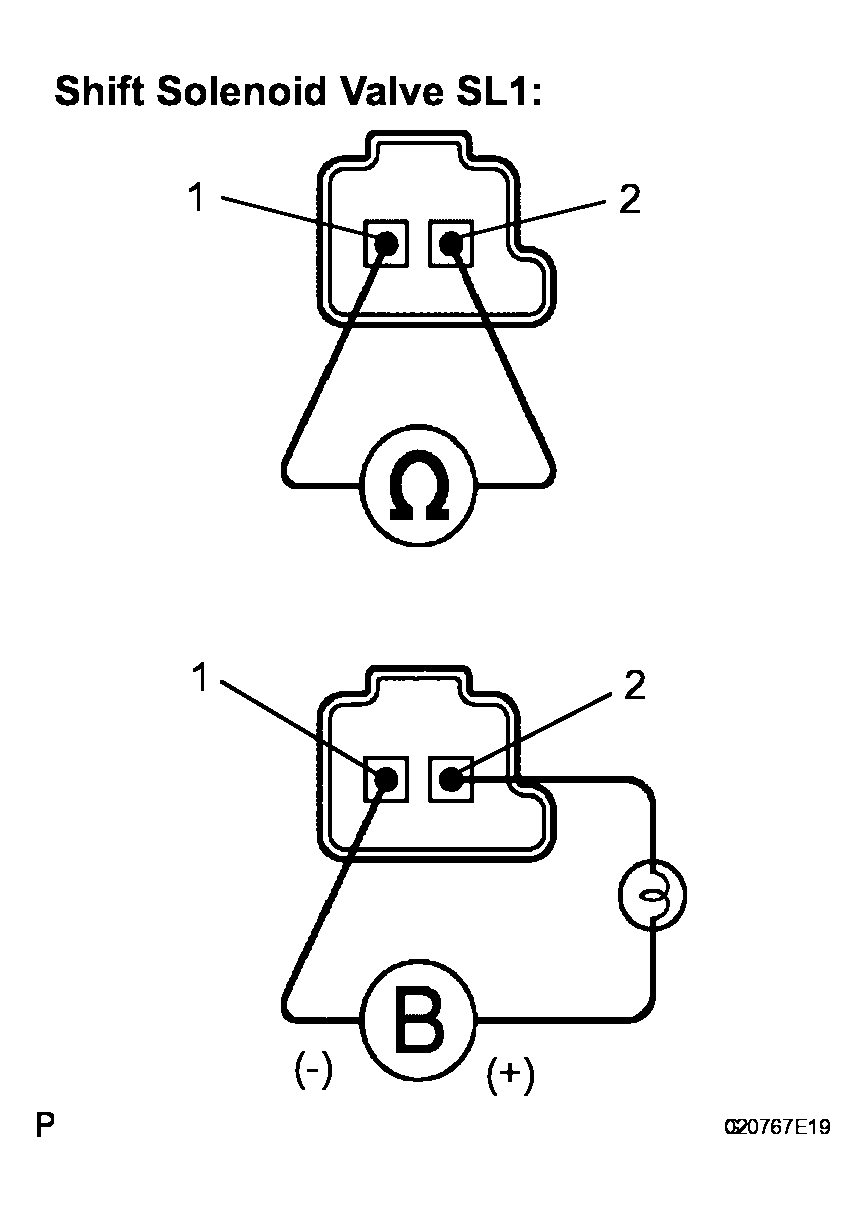

      Fig 1: Measuring Resistance Of Shift Solenoid Valve SL1
      G04028833Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSPECT SHIFT SOLENOID VALVE S1
    1. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Specified Condition 20°C (68°F)
      Solenoid Connector (S1) - Solenoid Body (S1) 11 to 15 Ω
    2. Connect the positive (+) lead to the terminal of the solenoid connector, and the negative (-) lead to the solenoid body.
      Fig 2: Measuring Resistance Of Shift Solenoid Valve S1
      G04028834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK:

    The solenoid makes an operating noise.

  3. INSPECT SHIFT SOLENOID VALVE S2
    1. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Specified Condition 20°C (68°F)
      Solenoid Connector (S2) - Solenoid Body (S2) 11 to 15 Ω
    2. Connect the positive (+) lead to the terminal of the solenoid connector, and the negative (-) lead to the solenoid body.

    OK:

    The solenoid makes an operating noise.

    Fig 3: Measuring Resistance Of Shift Solenoid Valve S2
    G04028835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSPECT SHIFT SOLENOID VALVE S3
    1. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Specified Condition 20°C (68°F)
      Solenoid Connector (S3) - Solenoid Body (S3) 11 to 15 Ω
    2. Connect the positive (+) lead to the terminal of the solenoid connector, and the negative (-) lead to the solenoid body.
      Fig 4: Measuring Resistance Of Shift Solenoid Valve S3
      G04028836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK:

    The solenoid makes an operating noise.

  5. INSPECT SHIFT SOLENOID VALVE S4
    1. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Specified Condition 20°C (68°F)
      Solenoid Connector (S4) - Solenoid Body (S4) 11 to 15 Ω
    2. Connect the positive (+) lead to the terminal of the solenoid connector, and the negative (-) lead to the solenoid body.

    OK:

    The solenoid makes an operating noise.

    Fig 5: Measuring Resistance Of Shift Solenoid Valve S4
    G04028837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSPECT SHIFT SOLENOID VALVE SL2
    1. Measure the resistance according to the value(s) in the table below:

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Specified Condition 20°C (68°F)
      1 - 2 5.0 to 5.6 Ω
    2. Connect the positive (+) lead with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector, then check the movement of the valve.

    OK:

    The solenoid makes an operating noise.

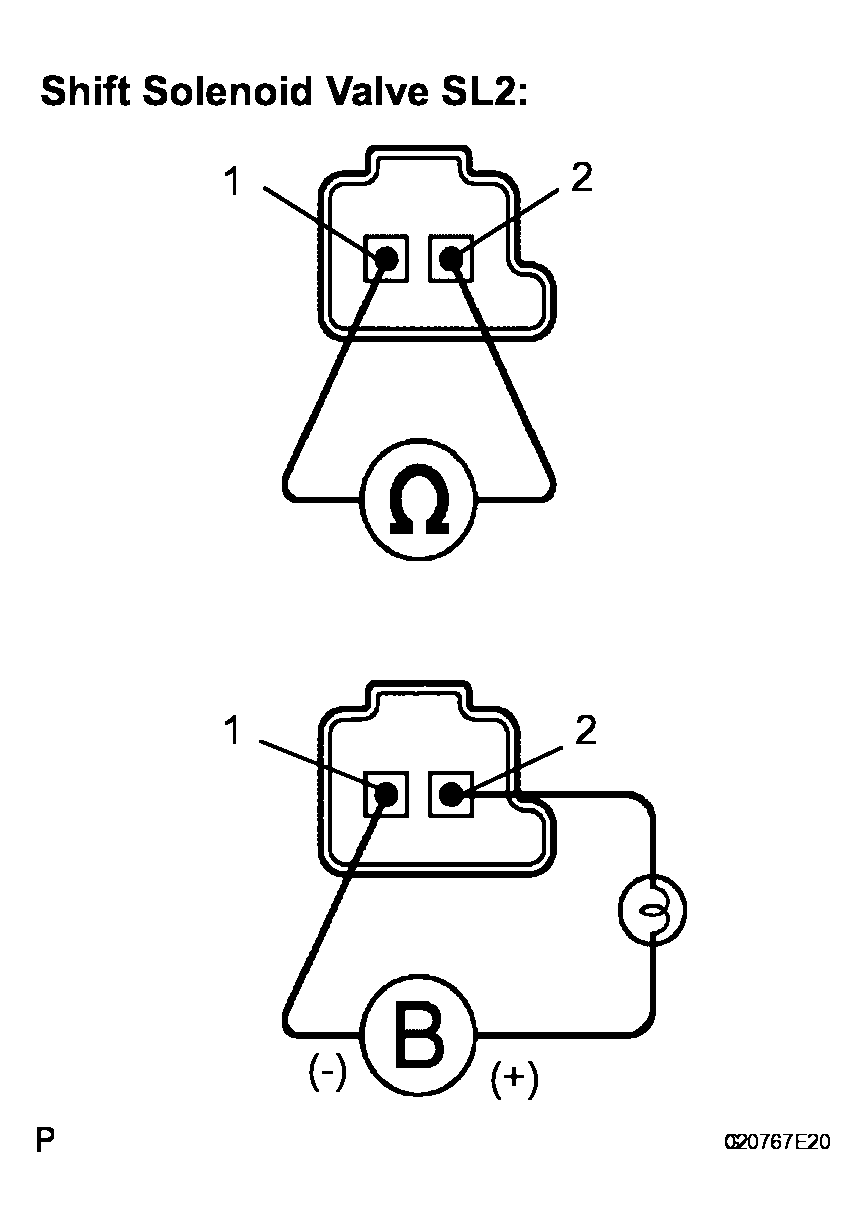

    Fig 6: Measuring Resistance Of Shift Solenoid Valve SL2
    G04028838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSPECT SHIFT SOLENOID VALVE SR
    1. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Specified Condition 20°C (68°F)
      Solenoid Connector (SR) - Solenoid Body (SR) 11 to 15 Ω
    2. Connect the positive (+) lead to the terminal of the solenoid connector, and the negative (-) lead to the solenoid body.

    OK:

    The solenoid makes an operating noise.

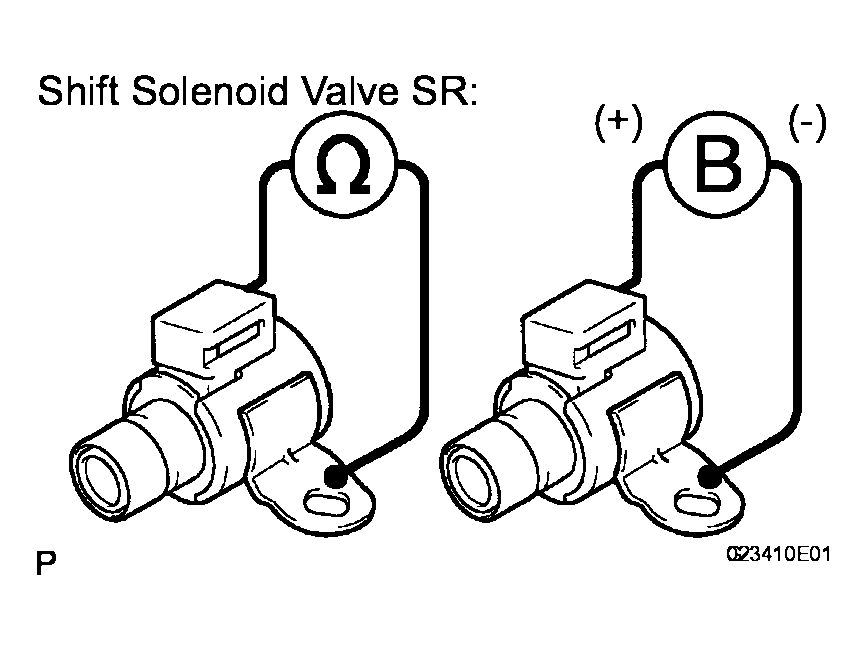

    Fig 7: Measuring Resistance Of Shift Solenoid Valve SR
    G04028839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSPECT SHIFT SOLENOID VALVE SLT
    1. Measure the resistance according to the value(s) in the table below:

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Specified Condition 20°C (68°F)
      1 - 2 5.0 to 5.6Ω
    2. Connect the positive (+) lead with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector, then check the movement of the valve.

    OK:

    The solenoid makes an operating noise.

    Fig 8: Measuring Resistance Of Shift Solenoid Valve SLT
    G04028840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSPECT SHIFT SOLENOID VALVE SLU
    1. Measure the resistance according to the value(s) in the table below:

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Specified Condition 20°C (68°F)
      1 - 2 5.0 to 5.6 Ω
    2. Connect the positive (+) lead with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector, then check the movement of the valve.

    OK:

    The solenoid makes an operating noise.

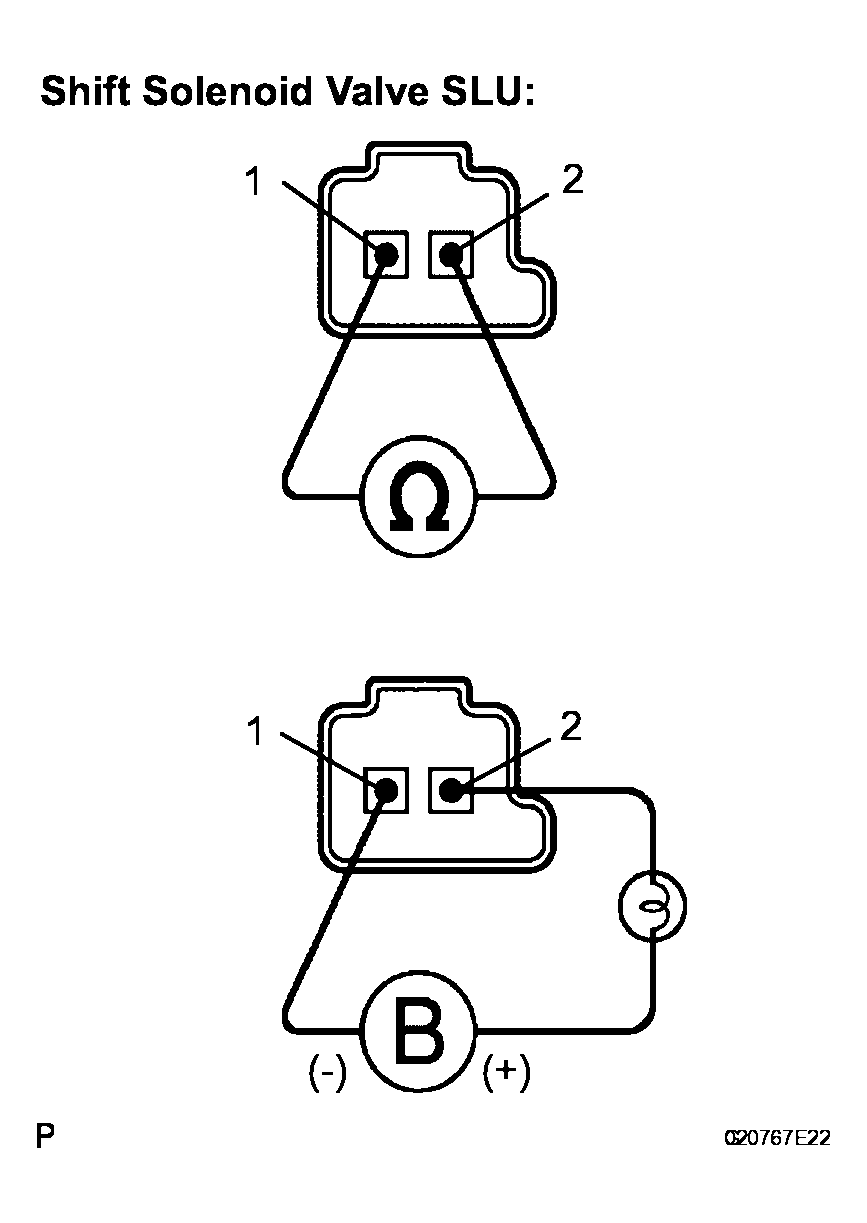

    Fig 9: Measuring Resistance Of Shift Solenoid Valve SLU
