Park / Neutral Position Switch: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
REMOVE FRONT EXHAUST PIPE ASSEMBLY
(REMOVAL )
REMOVE ENGINE UNDER COVER AIR GUIDE BRACKET (See REMOVAL )
REMOVE PROPELLER W/CENTER BEARING SHAFT ASSEMBLY
(REMOVAL )
DISCONNECT FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY (See ON-VEHICLE INSPECTION )
SUPPORT AUTOMATIC TRANSMISSION ASSEMBLY (See INSTALLATION )
SEPARATE ENGINE REAR MOUNTING MEMBER (See INSTALLATION )
REMOVE PARK/NEUTRAL POSITION SWITCH ASSEMBLY
1. Disconnect the park/neutral position switch connector.

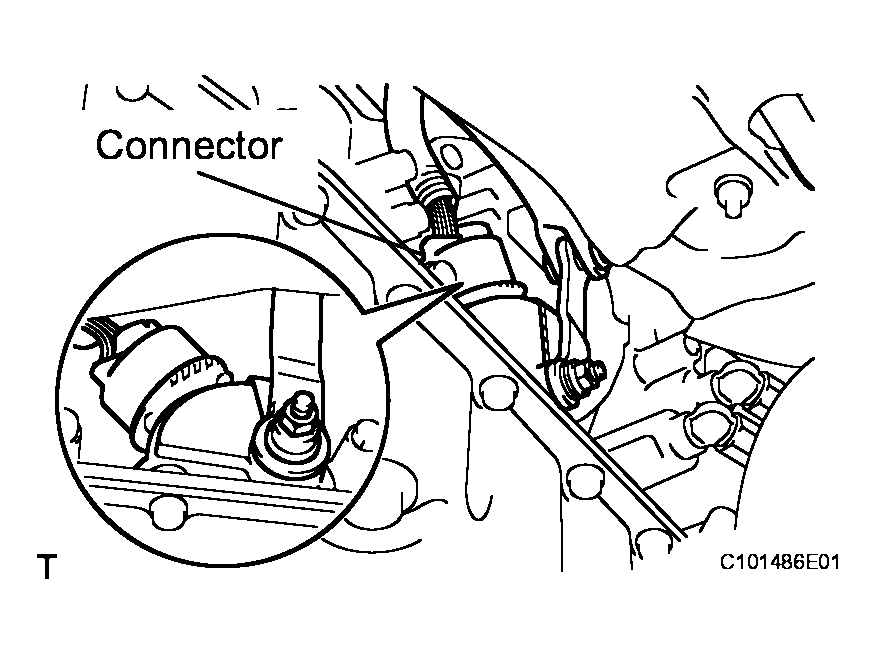

  Fig 1: Identifying Park/Neutral Position Switch Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the nut and transmission control shaft lever RH.

  Fig 2: Identifying Transmission Control Shaft Lever RH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using a screwdriver, pry out the lock washer.

  Fig 3: Prying Out Lock Washer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the lock nut and lock washer.

  Fig 4: Identifying Lock Nut And Lock Washer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the bolt and park/neutral position switch.

  Fig 5: Identifying Park/Neutral Position Switch Mounting Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
