Parts Location

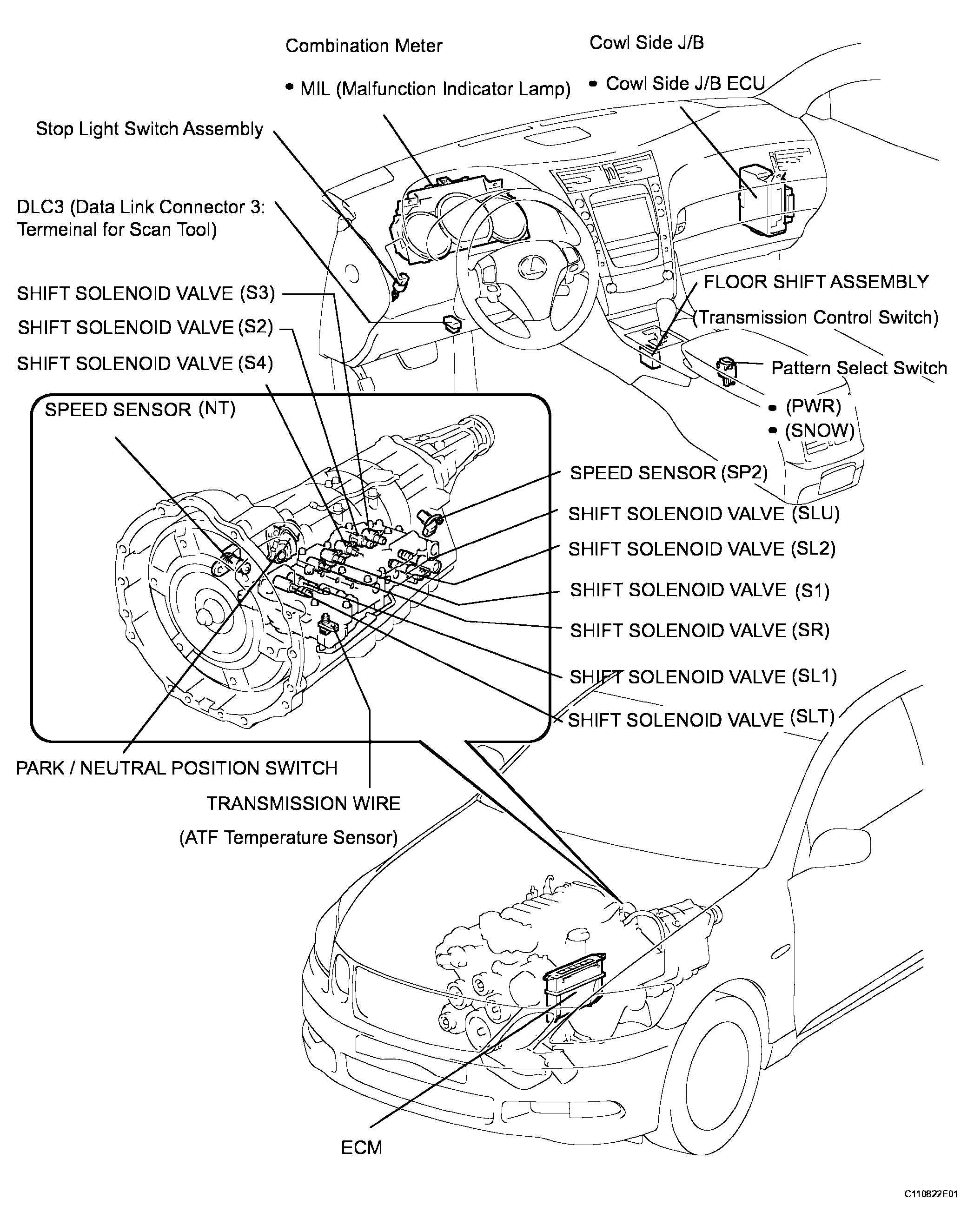

Fig 1: Identifying Electronic Controlled Automatic Transmission System Components Location

G04028214

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
