Steering Knuckle: Installation

INSTALL STEERING KNUCKLE
1. Install the steering knuckle to the upper suspension arm with a castle nut and new clip.
  Torque: 87 N*m (887 kgf*cm, 64 ft.*lbf)

  NOTE: If the holes for the clip are not aligned, tighten the nut up to another 60°.

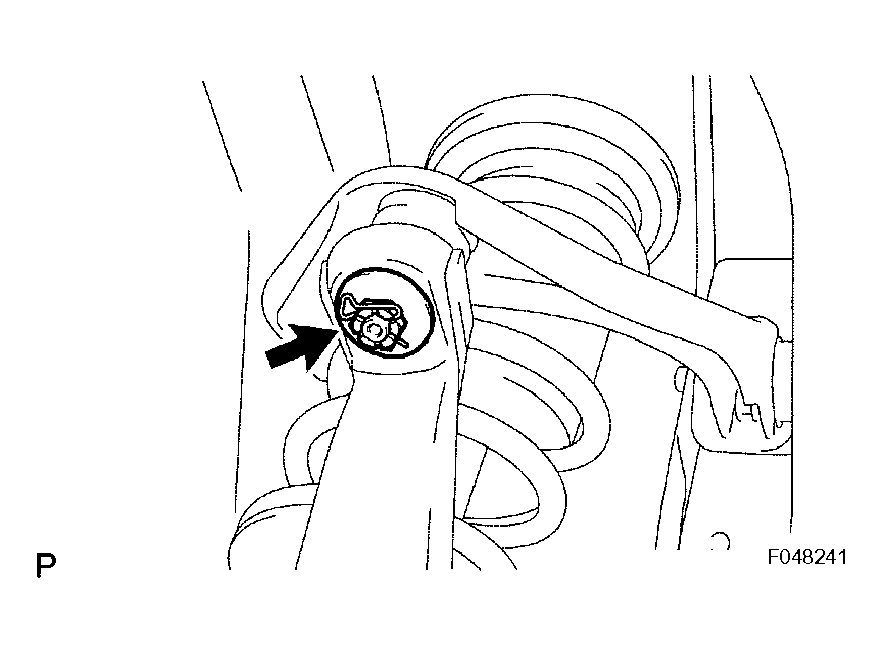

Fig 1: Identifying Steering Knuckle To Upper Suspension Arm With Castle Nut And New Clip
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL LOWER BALL JOINT ASSEMBLY FRONT (for 2WD)
1. Install the steering knuckle to the lower ball joint with the 2 bolts.
  Torque: 120 N*m (1220 kgf*cm, 89 ft.*lbf)

  Fig 2: Identifying Lower Ball Joint To Steering Knuckle Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT AXLE HUB SUB-ASSEMBLY (for 2WD) (See INSTALLATION )
INSTALL FRONT AXLE HUB SUB-ASSEMBLY (for 4WD) (See INSTALLATION )
INSTALL TIE ROD ASSEMBLY (for 4WD) (See INSTALLATION )
INSTALL LOWER BALL JOINT ASSEMBLY FRONT (for 4WD) (See INSTALLATION )
INSTALL FRONT AXLE HUB NUT (for 4WD) (See INSTALLATION )
INSTALL FRONT DISC BRAKE CALIPER ASSEMBLY (See INSTALLATION )
INSTALL SPEED SENSOR FRONT (for 2WD) (See INSTALLATION )
INSTALL SPEED SENSOR FRONT (for 4WD) (See INSTALLATION )
INSTALL FRONT DISC (See INSTALLATION )
INSTALL FRONT WHEEL
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
INSPECT AND ADJUST FRONT WHEEL ALIGNMENT (for 4WD)
(See ADJUSTMENT )
CHECK ABS SPEED SENSOR SIGNAL
(w/ ECB: See DTC CHECK / CLEAR )

(w/ o ECB: See DTC CHECK / CLEAR )
