Rear Axle Hub: Installation

INSTALL REAR AXLE HUB AND BEARING ASSEMBLY
1. Hold the axle hub and bearing assembly in a vise between aluminum plates.
  NOTE: Do not overtighten the vise.

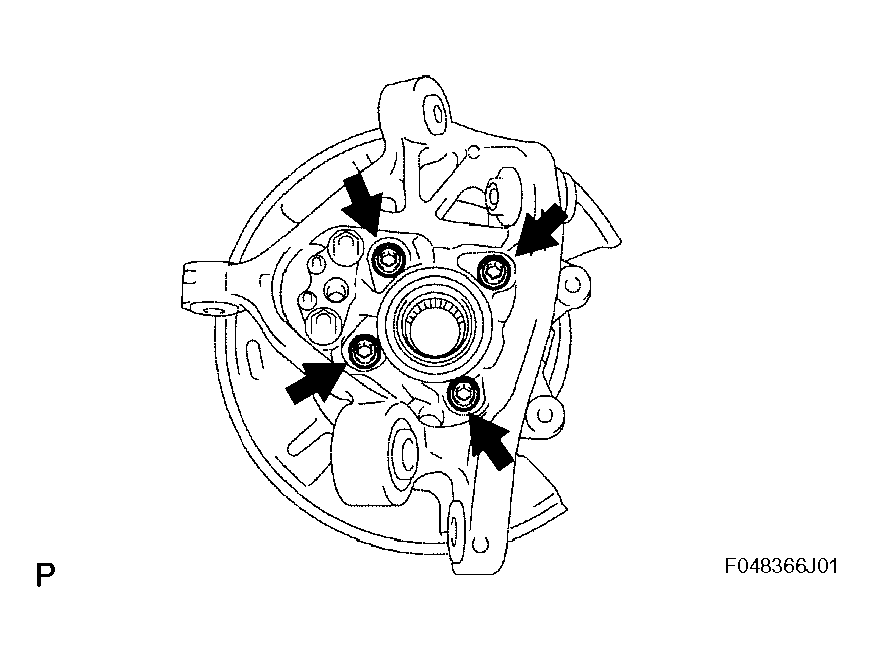

2. Install the axle hub and bearing assembly to the rear axle carrier sub-assembly with the 4 bolts.
  Torque: 70 N*m (714 kgf*cm, 52 ft.*lbf)

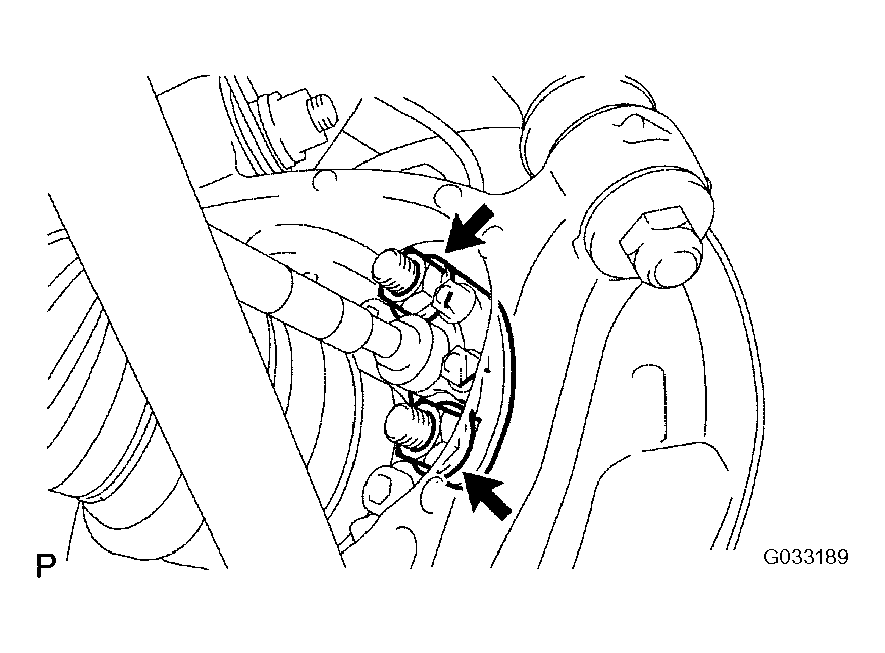

  Fig 1: Identifying Bolts Axle Hub And Bearing Assembly To Rear Axle Carrier Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR WHEEL BEARING DUST DEFLECTOR NO.2
1. Using SST and a hammer, install the bearing dust deflector No.2 to the rear axle carrier sub-assembly.
  SST 09951-01000, 09950-70010 (09951-07150)

  HINT:

  Align the hole for the speed sensor in the bearing dust deflector No.2 with the rear axle carrier subassembly.

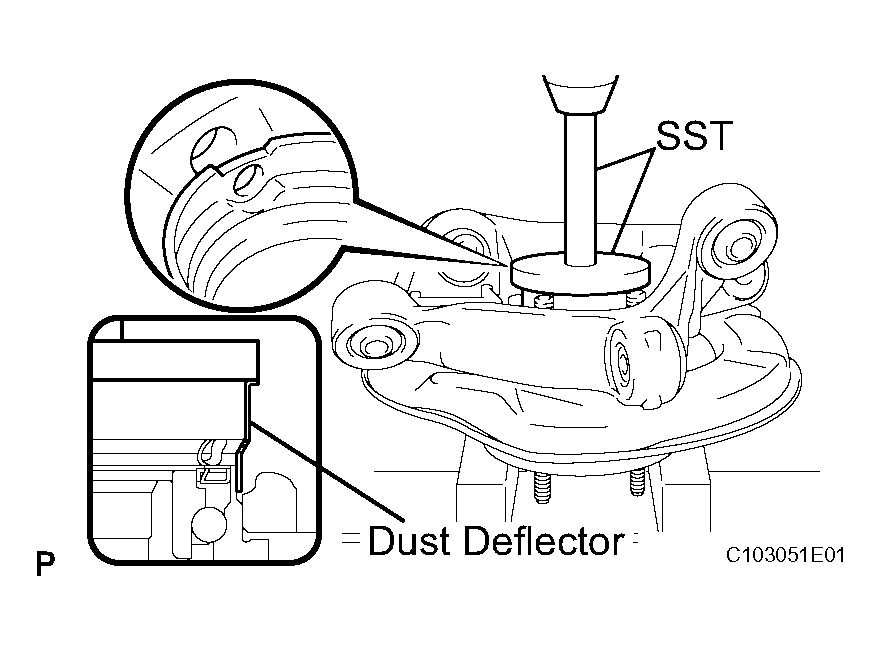

  Fig 2: Identifying Bearing Dust Deflector No.2 To Rear Axle Carrier Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR AXLE ASSEMBLY
1. Install the rear drive shaft assembly and rear axle assembly.

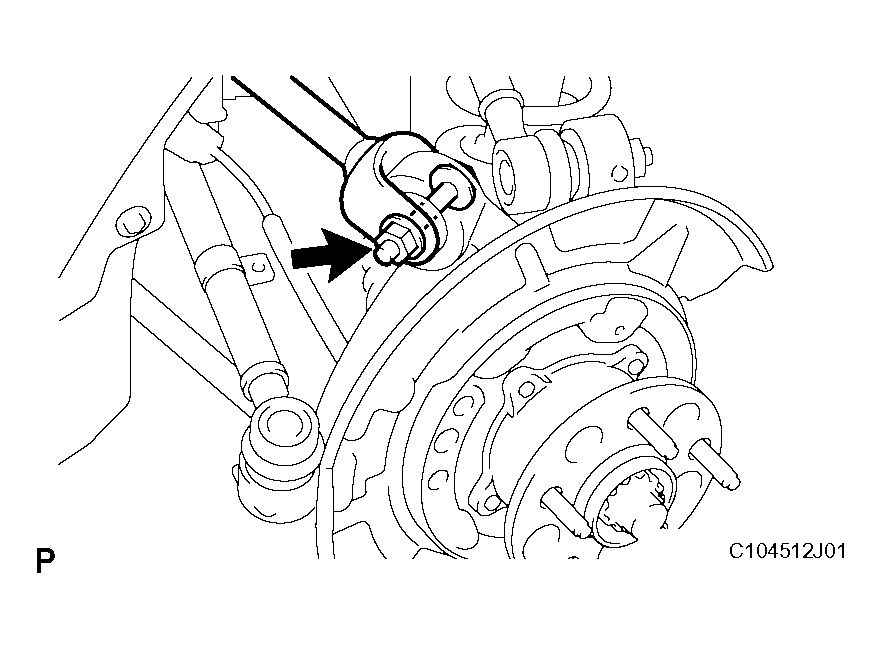

INSTALL UPPER CONTROL ARM ASSEMBLY REAR NO.2
1. Install the upper control arm assembly rear No.2 to the rear axle carrier sub-assembly with a new nut.
  Torque: 70 N*m (714 kgf*cm, 52 ft.*lbf)

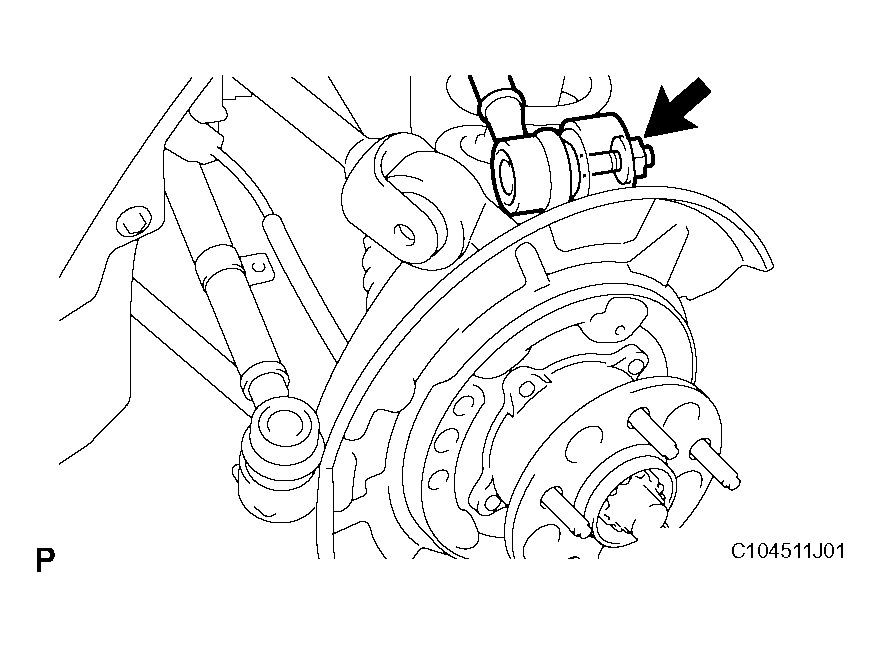

  Fig 3: Identifying Nut To Install Upper Control Arm Assembly Rear No.2 To Rear Axle Carrier Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

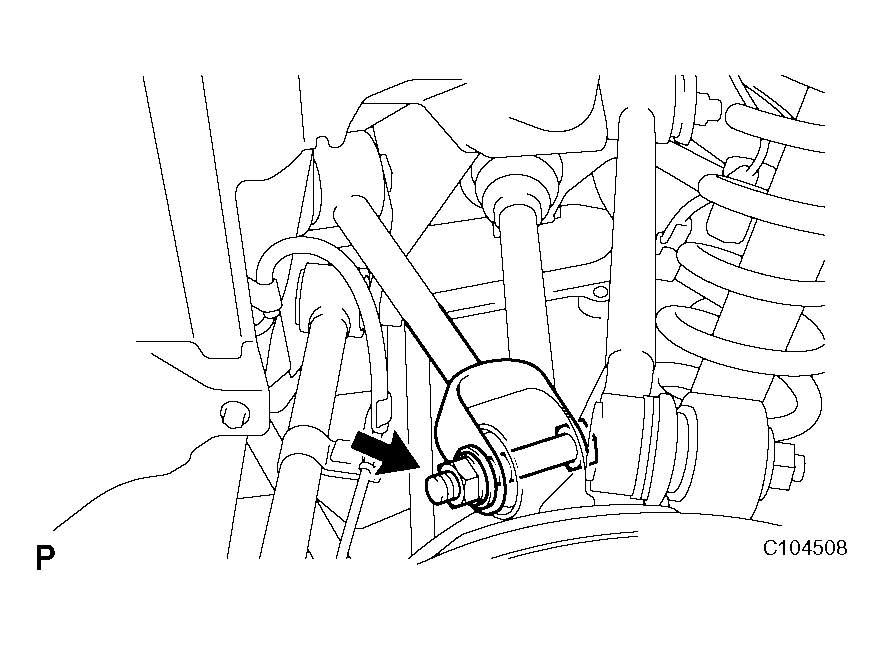

TEMPORARILY TIGHTEN UPPER CONTROL ARM ASSEMBLY REAR NO.1
1. Temporarily tighten the upper control arm assembly rear No.1 to the rear axle carrier sub-assembly with the bolt, washer and nut.
  HINT:

  Install the bolt from the rear side of the vehicle and lightly tighten the bolt.

  Fig 4: Identifying Bolt, Washer And Nut To Tighten Upper Control Arm Assembly Rear No.1 To Rear Axle Carrier Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

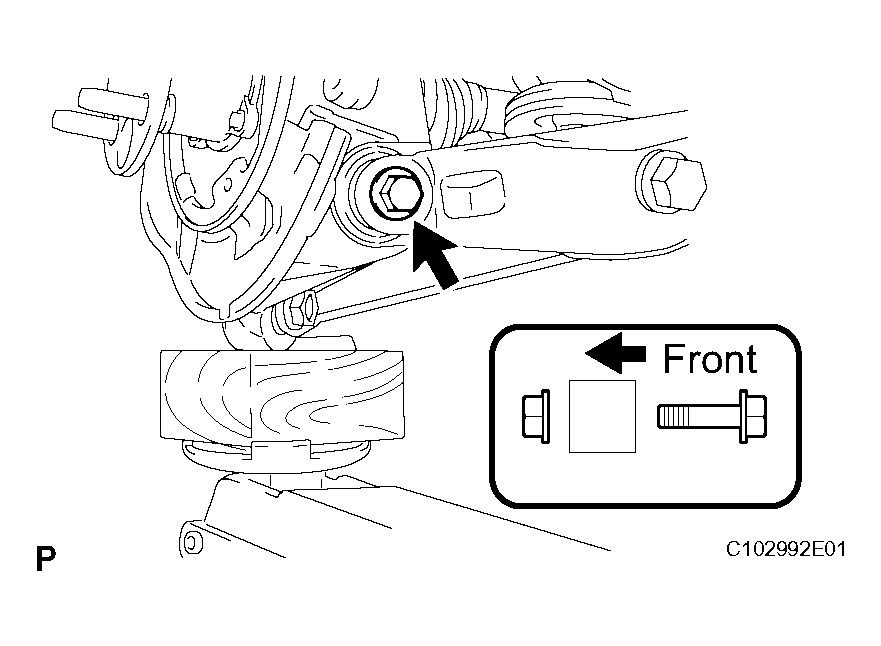

TEMPORARILY TIGHTEN REAR SUSPENSION ARM ASSEMBLY NO.1
1. Temporarily tighten the rear suspension arm assembly No.1 to the rear axle carrier sub-assembly with the bolt and nut.
  HINT:

  Install the bolt from the rear side of the vehicle and lightly tighten the bolt.

  Fig 5: Identifying Bolt From Rear Side Of Vehicle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

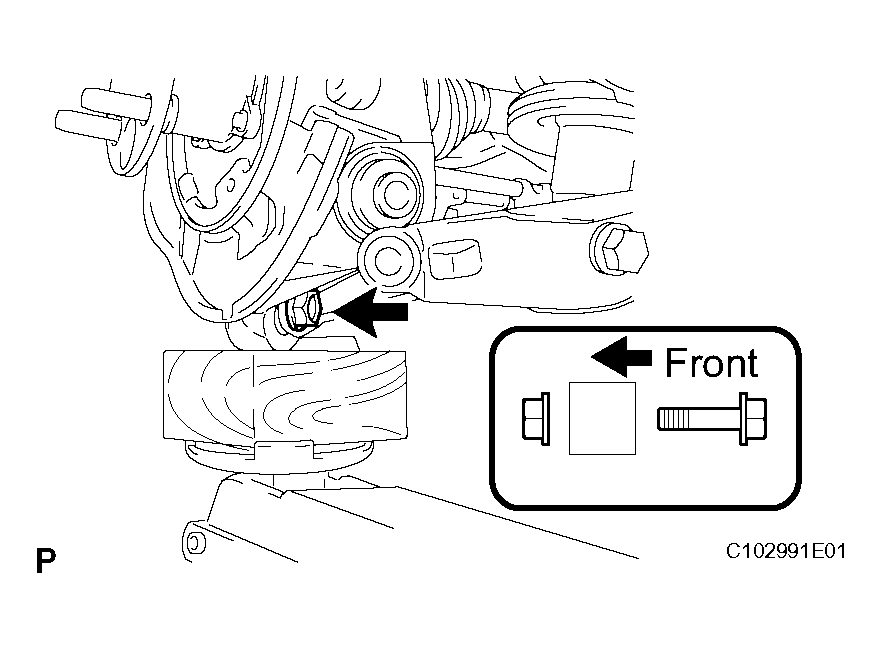

TEMPORARILY TIGHTEN REAR SUSPENSION ARM ASSEMBLY NO.2
1. Temporarily tighten the rear suspension arm assembly No.2 to the rear axle carrier sub-assembly with the bolt and nut.
  HINT:

  Install the bolt from the rear side of the vehicle and lightly tighten the bolt.

  Fig 6: Identifying Bolt From Rear Side Of Vehicle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

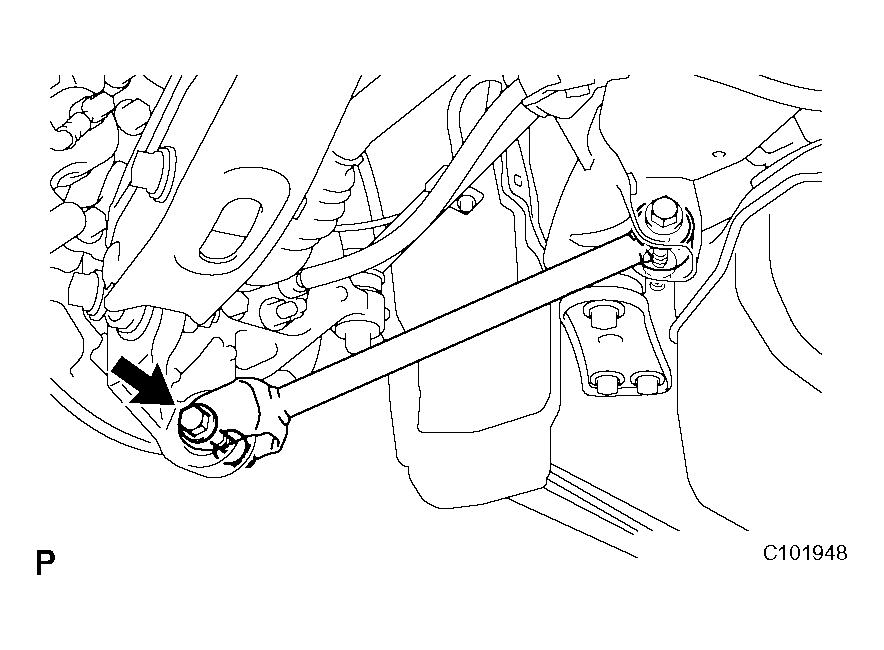

INSTALL TOE CONTROL LINK SUB-ASSEMBLY
1. Install the toe control link sub-assembly to the rear axle carrier sub-assembly with a new nut.
  Torque: 70 N*m (714 kgf*cm, 52 ft.*lbf)

  Fig 7: Identifying Nut To Install Toe Control Link Sub-Assembly To Rear Axle Carrier Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL LOAD SENSING VALVE SENSOR BRACKET (See INSTALLATION )
APPLY HIGH TEMPERATURE GREASE (See REASSEMBLY )
INSTALL PARKING BRAKE ANCHOR BLOCK
1. Install the parking brake anchor block sub-assembly to the rear axle carrier sub-assembly with the 2 nuts.
  Torque: 76 N*m (775 kgf*cm, 56 ft.*lbf)

  Fig 8: Identifying Parking Brake Anchor Block Sub-Assembly & Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL PARKING BRAKE SHOE LEVER (See REASSEMBLY )
INSTALL PARKING BRAKE SHOE ASSEMBLY NO.2 (See REASSEMBLY )
INSTALL PARKING BRAKE SHOE ASSEMBLY NO.1 (See REASSEMBLY )
INSTALL PARKING BRAKE SHOE ADJUSTING SCREW SET (See REASSEMBLY )
INSTALL PARKING BRAKE SHOE RETURN SPRING NO.1 (See REASSEMBLY )
INSTALL PARKING BRAKE SHOE RETURN SPRING NO.2 (See REASSEMBLY )
CHECK PARKING BRAKE INSTALLATION (See REASSEMBLY )
INSTALL SPEED SENSOR REAR (See INSTALLATION )
INSTALL REAR AXLE SHAFT NUT
1. Install a new rear axle shaft nut.
  Torque: 290 N*m (2,957 kgf*cm, 214 ft.*lbf)

  HINT:

  Stake the nut after inspecting for looseness and runout in the following steps.
INSPECT REAR AXLE HUB BEARING LOOSENESS (See ON-VEHICLE INSPECTION )
INSPECT REAR AXLE HUB RUNOUT (See ON-VEHICLE INSPECTION )
INSTALL REAR DISC (See INSTALLATION )
ADJUST PARKING BRAKE SHOE CLEARANCE (See ADJUSTMENT )
INSTALL REAR DISC BRAKE CALIPER ASSEMBLY (See INSTALLATION )
INSTALL REAR AXLE SHAFT NUT

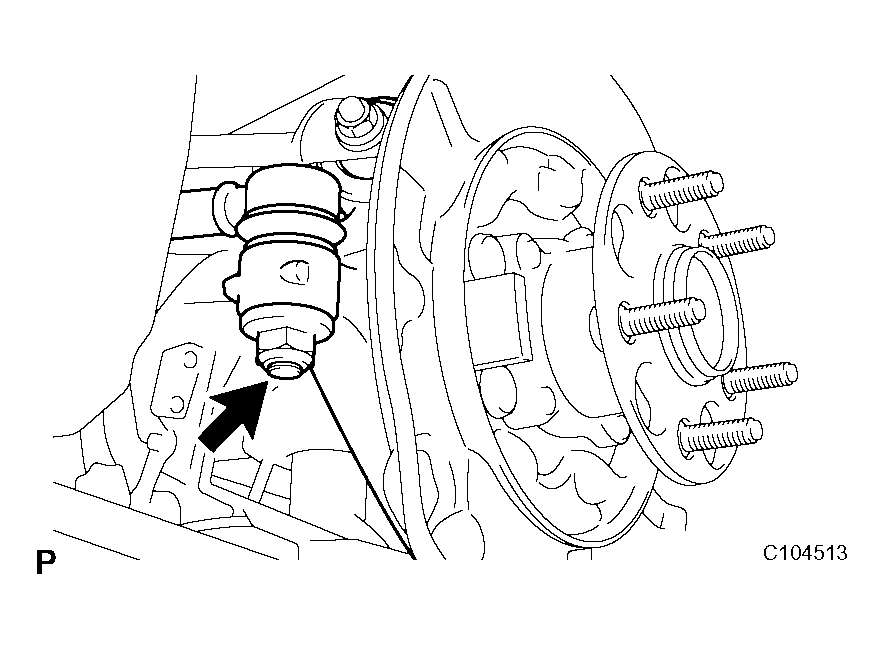

1. Using a chisel and a hammer, stake the axle shaft nut.

  Fig 9: Staking Axle Shaft Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
STABILIZE SUSPENSION (See INSPECTION )
FULLY TIGHTEN UPPER CONTROL ARM ASSEMBLY REAR NO.1
1. Fully tighten the upper control arm assembly rear No.1 with the nut.
  Torque: 161 N*m (1,642 kgf*cm, 119 in.*lbf)

  Fig 10: Identifying Tightening Upper Control Arm Assembly Rear No.1 With Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
FULLY TIGHTEN REAR SUSPENSION ARM ASSEMBLY NO.1
1. Fully tighten the rear suspension arm assembly No.1 with the bolt and nut.
  Torque: 95 N*m (969 kgf*cm, 70 ft.*lbf)

  NOTE: Turn the bolt while holding the nut.
Fig 11: Identifying Tightening Rear Suspension Arm Assembly No.1 With Bolt And Nut
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

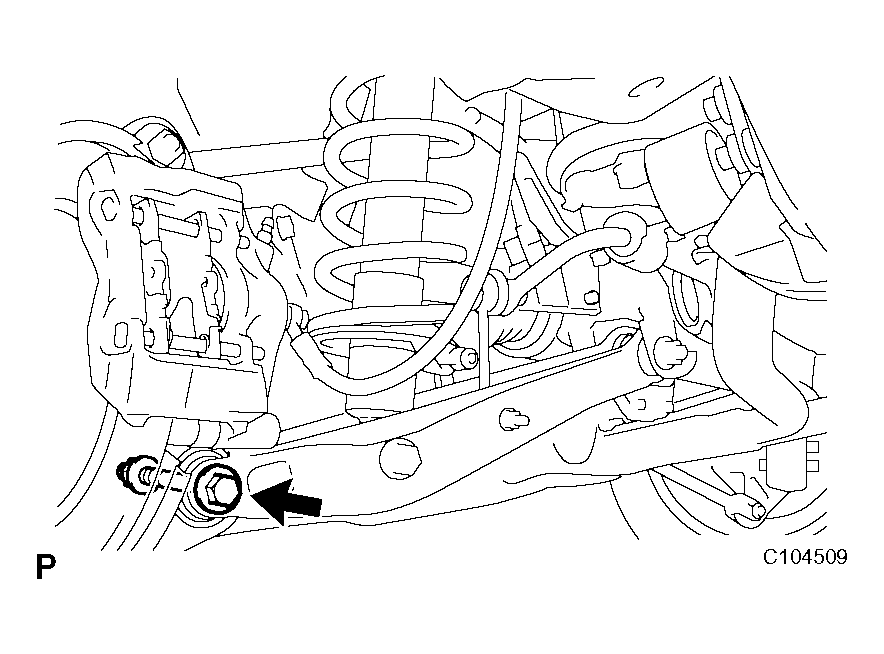

FULLY TIGHTEN REAR SUSPENSION ARM ASSEMBLY NO.2
1. Fully tighten the rear suspension arm assembly No.2 with the bolt and nut.
  Torque: 161 N*m (1,642 kgf*cm, 119 in.*lbf)

  NOTE: Turn the bolt while holding the nut.
Fig 12: Identifying Tightening Rear Suspension Arm Assembly No.2 With Bolt And Nut
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR TIRE
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
INSPECT PARKING BRAKE PEDAL TRAVEL (See ADJUSTMENT )
ADJUST PARKING BRAKE PEDAL TRAVEL (See ADJUSTMENT )
INSPECT AND ADJUST REAR WHEEL ALIGNMENT (See ADJUSTMENT )
CHECK ABS SPEED SENSOR SIGNAL
(w/ ECB: See DTC CHECK / CLEAR )

(w/ o ECB: See DTC CHECK / CLEAR )
