Components
Rear Axle Hub Bolt: Components

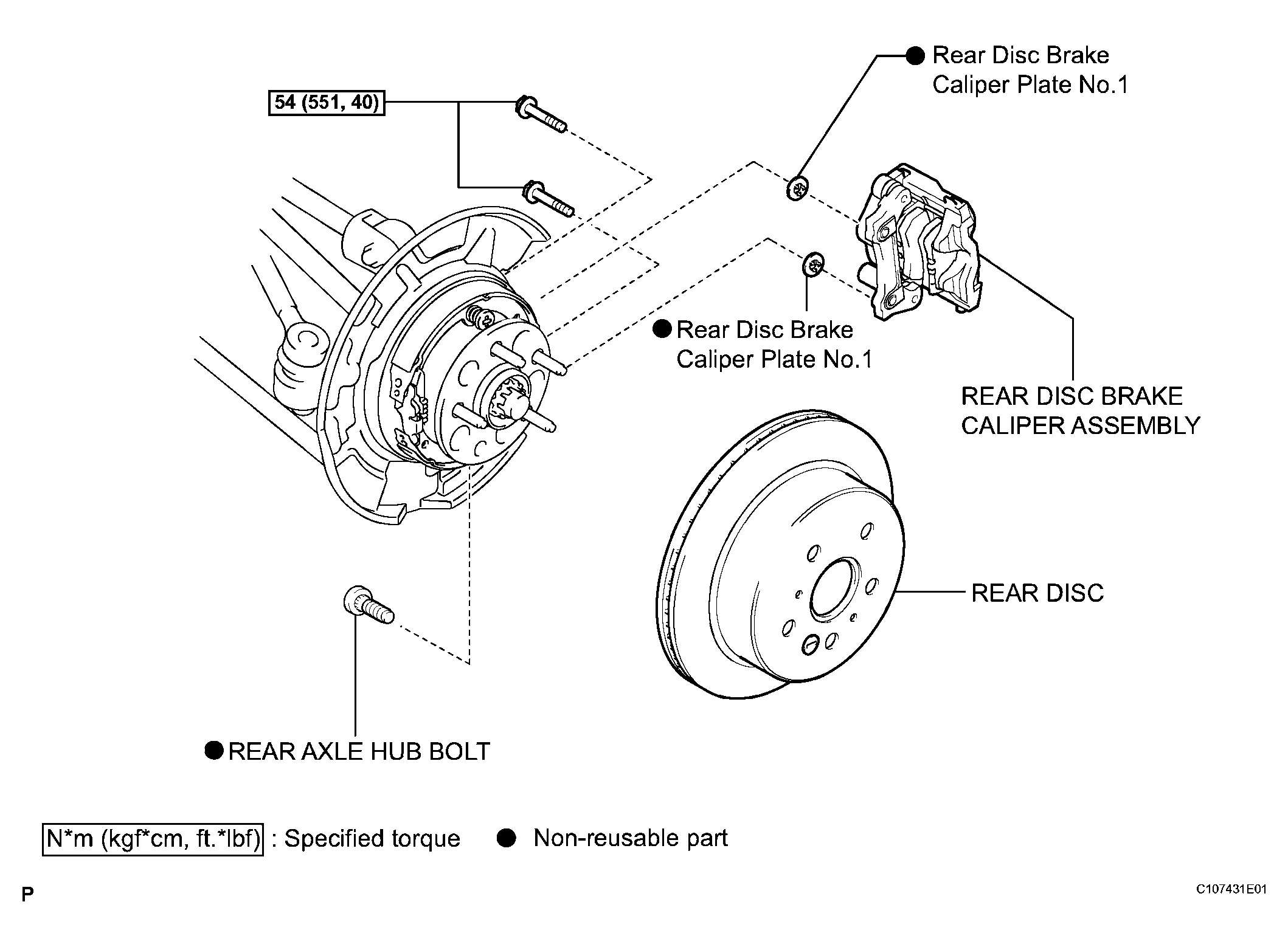

Fig 1: Installing Rear Axle Hub Bolt With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
