Seat Belt Control Ecu: Installation

  1. INSTALL SEAT BELT CONTROL ECU
    1. Attach the claw of the ECU stay to install the junction block.
    2. Install the nut.
    3. Connect the connector.

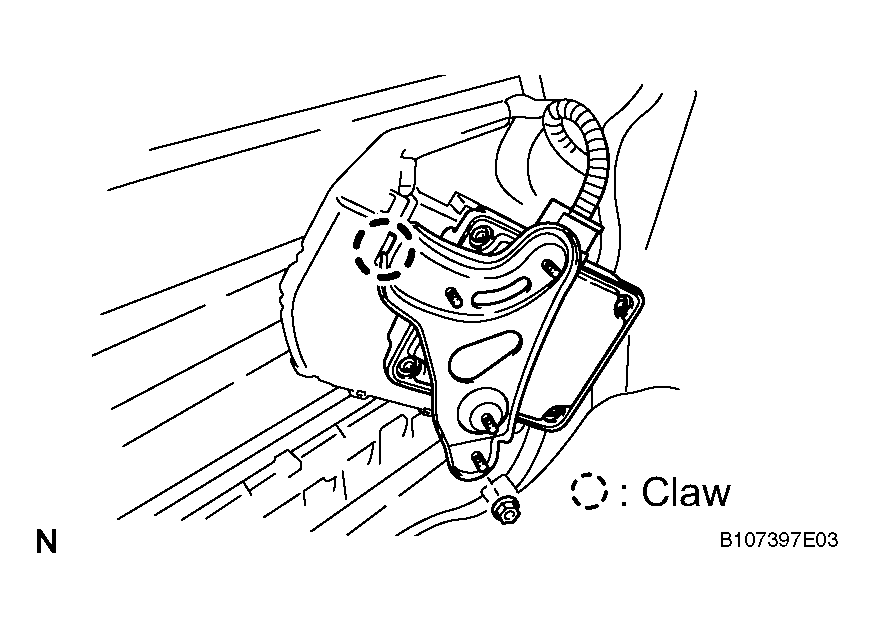

      Fig 1: Identifying ECU
      G04031132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the ECU with the 3 nuts.
  2. INSTALL LUGGAGE COMPARTMENT TRIM SIDE COVER INNER LH (See  INSTALLATION  )
  3. INSTALL LUGGAGE COMPARTMENT TRIM COVER FRONT (See  INSTALLATION  )
  4. INSTALL REAR FLOOR FINISH PLATE (See  INSTALLATION  )
  5. INSTALL TOOL BOX (See  INSTALLATION  )
  6. INSTALL LUGGAGE COMPARTMENT FLOOR MAT (See  INSTALLATION  )
  7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  8. CHECK SRS WARNING LIGHT
    1. Check the SRS warning light (See DIAGNOSIS SYSTEM ).
  9. PERFORM INITIALIZATION

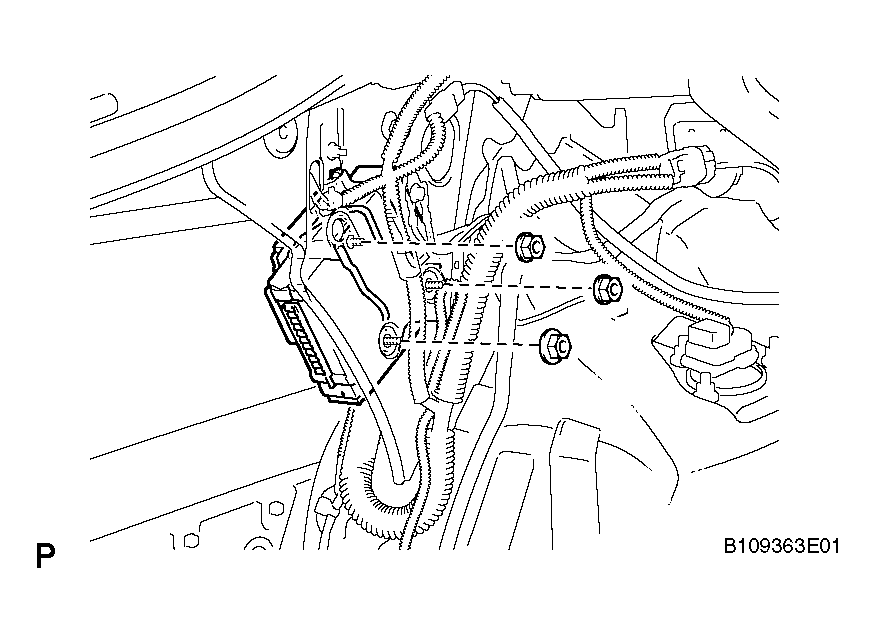

    Fig 2: Identifying ECU Nuts
    G04031133Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
    1. Perform initialization (See INITIALIZATION )
