Rear Seat Inner Belt Assembly: Installation

  1. INSTALL REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH
    NOTE: Do not disassemble the retractor.
    1. Align the seat belt positioning hole with the claw and install the retractor of the seat belt with the bolt as shown in the illustration.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

      Fig 1: Identifying Rear Seat Inner With Center Belt Assembly RH
      G04031085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Sunshade)
    1. Attach the clip and install the package tray trim panel.
    2. Attach the 4 claws and install the belt guide center.

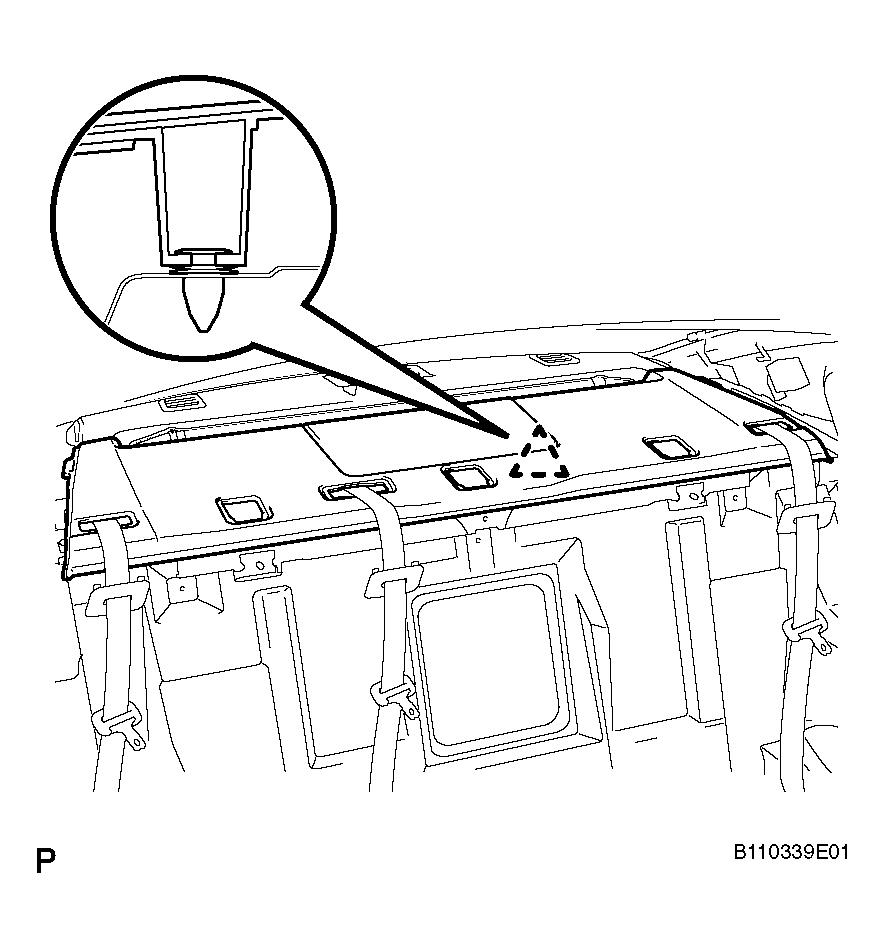

      Fig 2: Identifying Package Tray Trim Panel
      G04031086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Attach the 4 claws and install the belt guide.

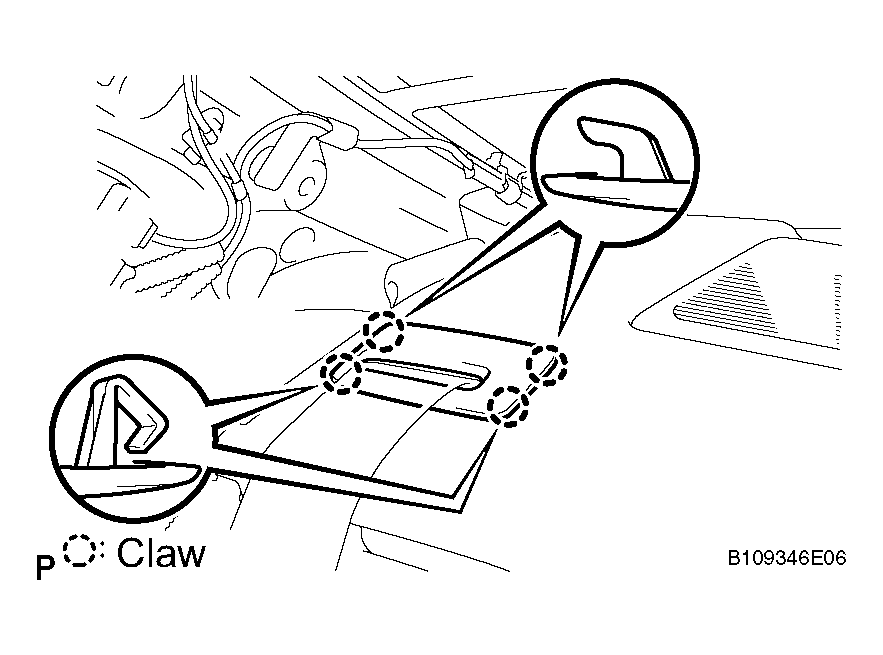

      Fig 3: Identifying Belt Guide
      G04031087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Attach the 4 claws and install the belt guide.
      Fig 4: Identifying Belt Guide
      G04031088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY
    1. Install the package tray trim panel.
      1. Connect the connector.
      2. Attach the 5 claws and clip, and install the panel.

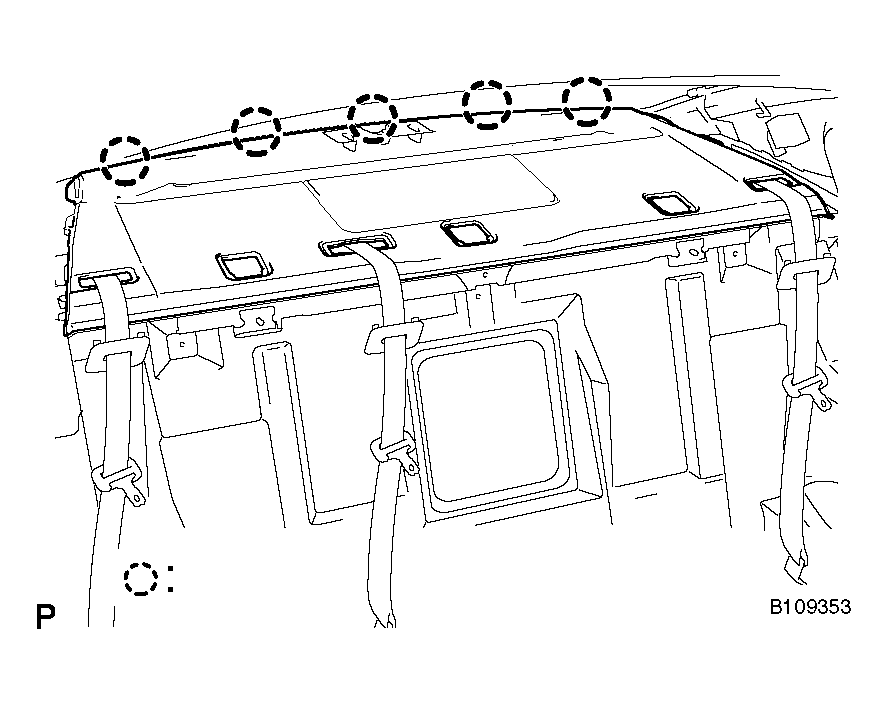

        Fig 5: Identifying Panel
        G04031089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL ROOF SIDE GARNISH INNER (See  INSTALLATION  )
  5. INSTALL REAR SEAT SIDE GARNISH (See  INSTALLATION  )
  6. INSTALL REAR DOOR SCUFF PLATE (See  INSTALLATION  )
  7. INSTALL REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH
    1. Install the seat belt with the bolt as shown in the illustration.
    2. Connect the connector labeled A.

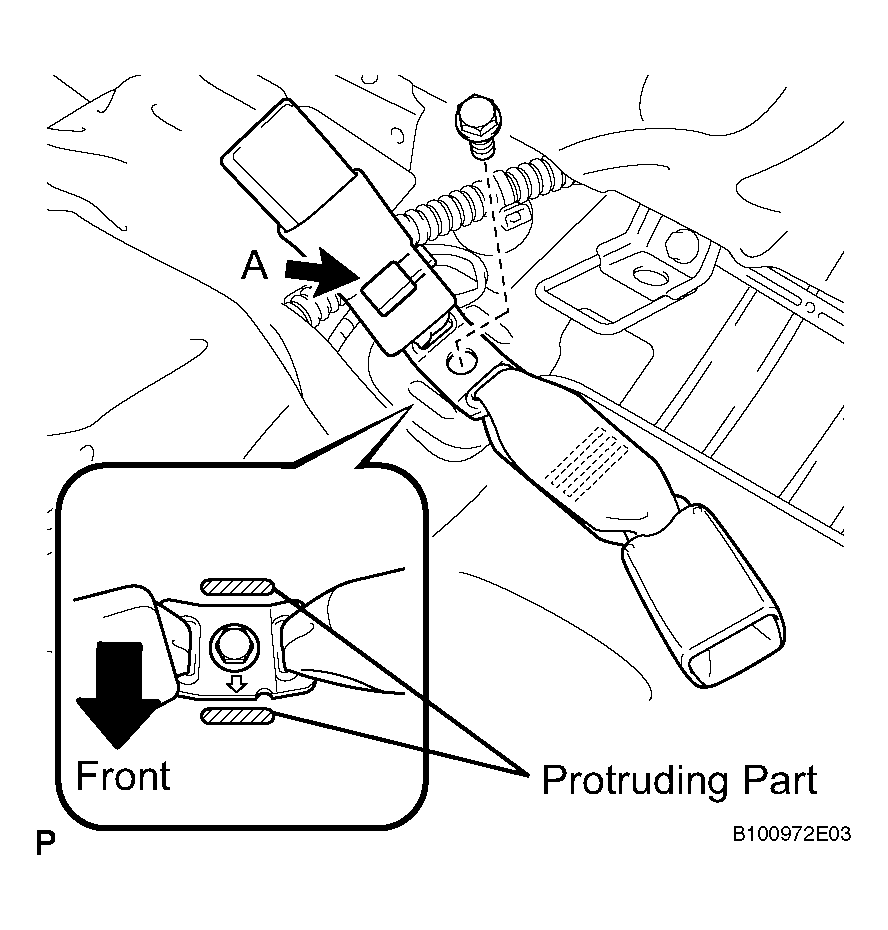

      Fig 6: Identifying Seat Belt With Bolt
      G04031090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: Do not overlap the anchor part of the seat belt and protruding parts of the vehicle body.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

  8. INSTALL REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH
    1. Install the anchor part of the rear seat inner with center belt assembly RH seat belt with the bolt as shown in the illustration.
    2. Connect the connector labeled A.

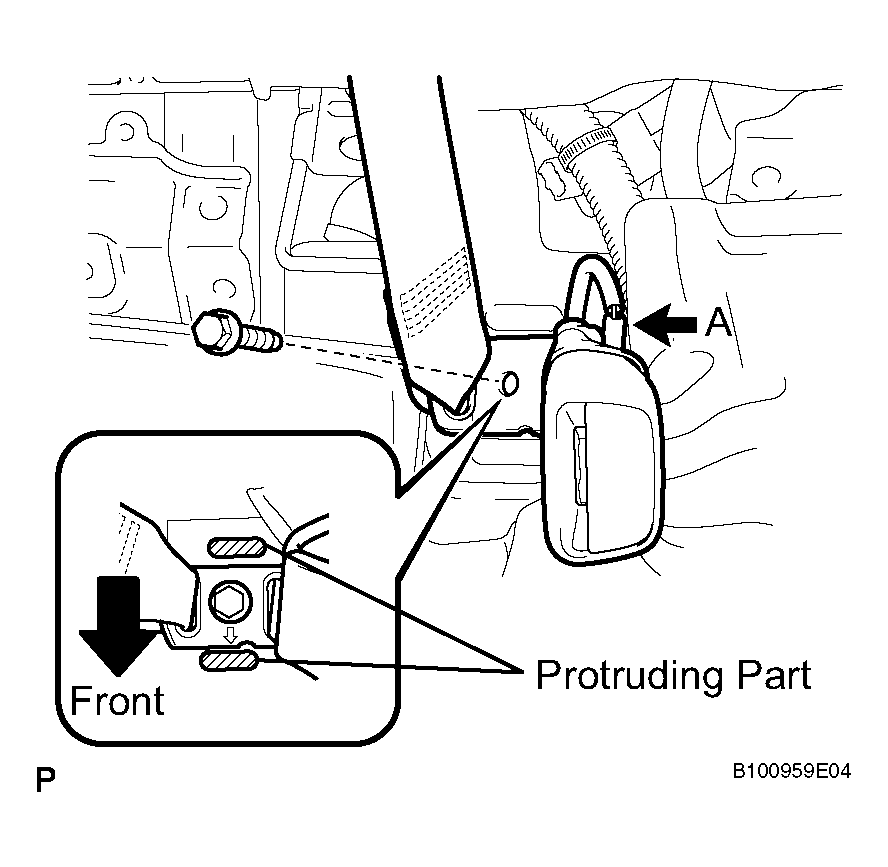

      Fig 7: Identifying Rear Seat Inner With Center Belt Assembly RH
      G04031091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: Do not overlap the anchor part of the seat belt and protruding parts of the vehicle body.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

  9. INSTALL REAR SEAT BELT OUTER ANCHOR
    1. Install the anchor part of the rear seat outer belt assembly with the bolt.
      NOTE: Do not overlap the anchor part of the seat belt and protruding parts of the vehicle body.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

  10. INSTALL REAR SEATBACK ASSEMBLY (See  INSTALLATION  )
  11. INSTALL REAR SEAT HEADREST ASSEMBLY RH AND LH
    1. Install the 2 headrests.
  12. INSTALL REAR SEAT CUSHION ASSEMBLY (See  INSTALLATION  )
  13. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  14. PERFORM INITIALIZATION

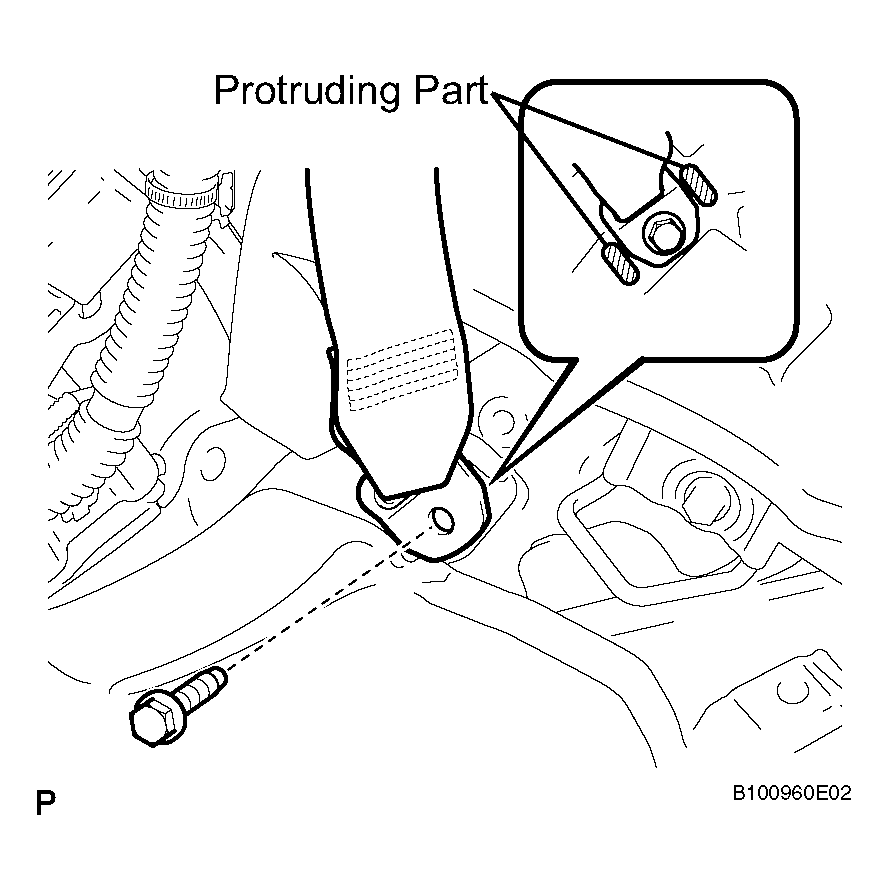

    Fig 8: Identifying Anchor Part Of Rear Seat Outer Belt Assembly With Bolt
    G04031092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
    1. Perform initialization (See INITIALIZATION ).
