Front Seat Inner Belt Assembly: Removal

HINT:

Use the same procedures for the RH side and LH side.
The procedures listed below are for the RH side.
A bolt without a torque specification is shown in the standard bolt chart (see SPECIFIED TORQUE FOR STANDARD BOLTS ).

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY
1. Using a screwdriver, detach the 2 claws and remove the front seat belt hole cover.

  Fig 1: Identifying Front Seat Belt Hole Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Tape the screwdriver tip before use.
2. Apply protective tape around the seat belt anchor cover cap to the cushion shield.
3. Using a screwdriver, detach the 2 claws and remove the seat belt anchor cover cap.

  Fig 2: Identifying Seat Belt Anchor Cover Cap
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Tape the screwdriver tip before use.
4. Move the seat using the power seat switch knob so that the seat belt anchor bolt is revealed.
5. Remove the bolt and front seat outer belt anchor.

  Fig 3: Identifying Front Seat Outer Belt Anchor Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT SEAT ASSEMBLY
1. Operate the power seat switch knob and move the seat to the rearmost position.
2. Using a screwdriver, detach the 4 claws and remove the seat track bracket cover front inner and outer.

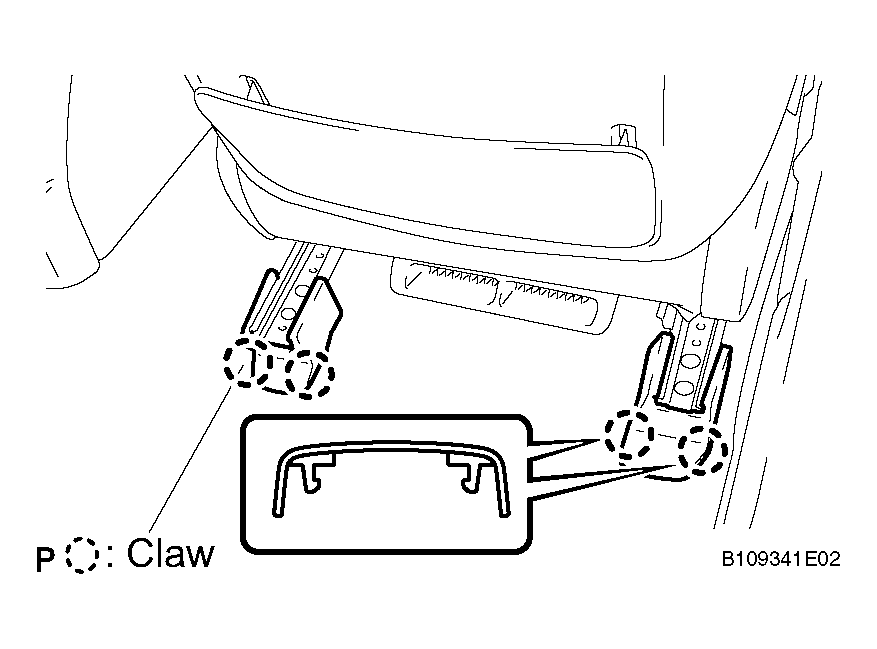

  Fig 4: Identifying Seat Track Bracket Cover Front Inner And Outer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Tape the screwdriver tip before use.
3. Remove the 2 bolts on the front side of the seat.
4. Operate the power seat switch knob and move the seat to the foremost position.
5. Using a screwdriver, detach the 4 claws and remove the seat track bracket cover rear inner and outer.
6. Remove the 2 bolts on the rear side of the seat.
7. Disconnect the connectors under the seat. Then remove the seat.

  Fig 5: Identifying Seat Track Bracket Cover Rear Inner And Outer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT SEAT INNER BELT ASSEMBLY
1. Disconnect the connector.
2. Remove the seat belt's wire harness clamp.
3. Remove the nut and seat belt.

  Fig 6: Identifying Front Seat Inner Belt Assembly Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
