Child Restraint Seat Anchor Bracket: Components

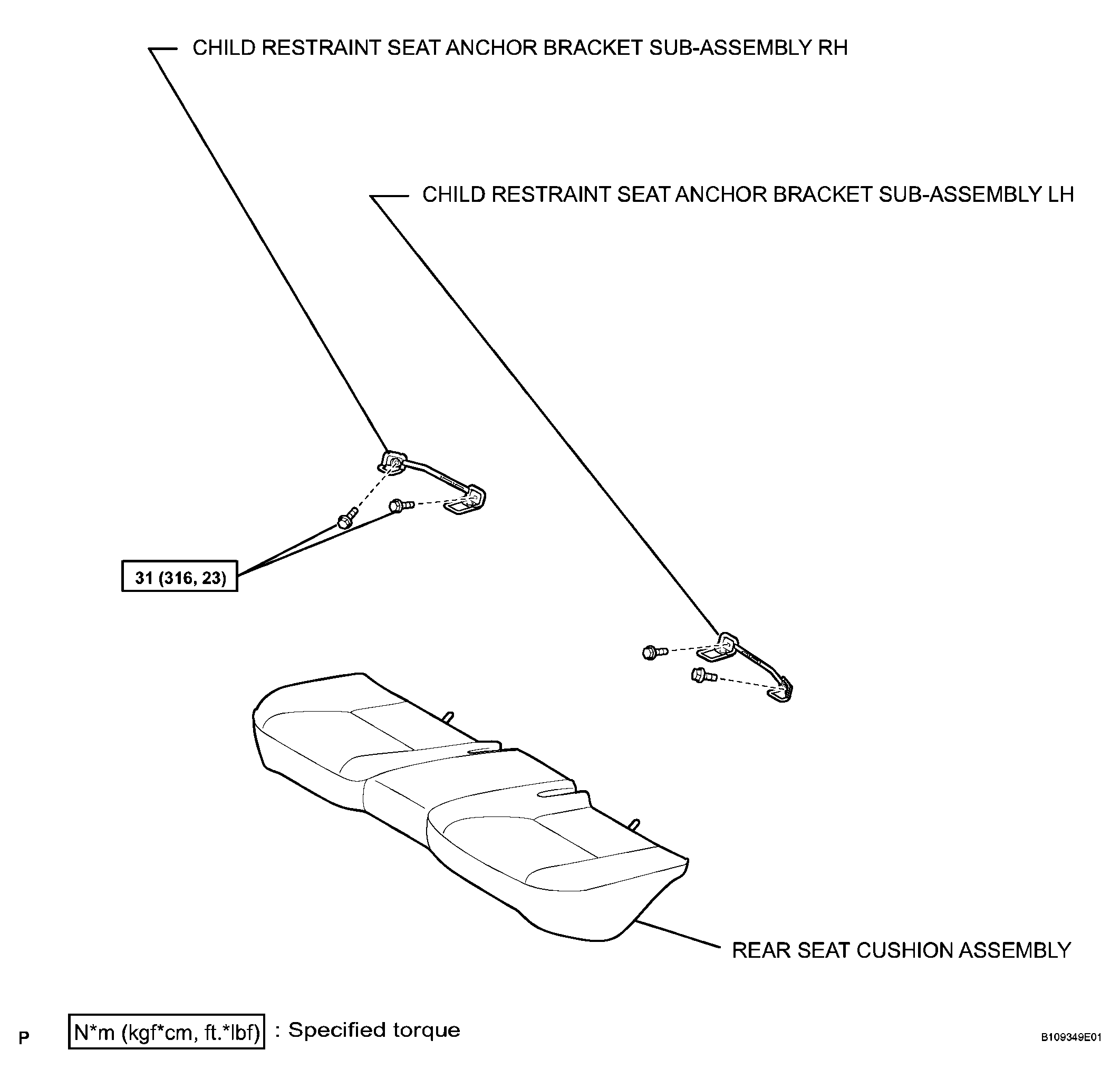

Fig 1: Exploded View Of Child Restraint Seat Anchor Bracket With Torque Specifications

G04031126

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
