Refrigerant Line: Components

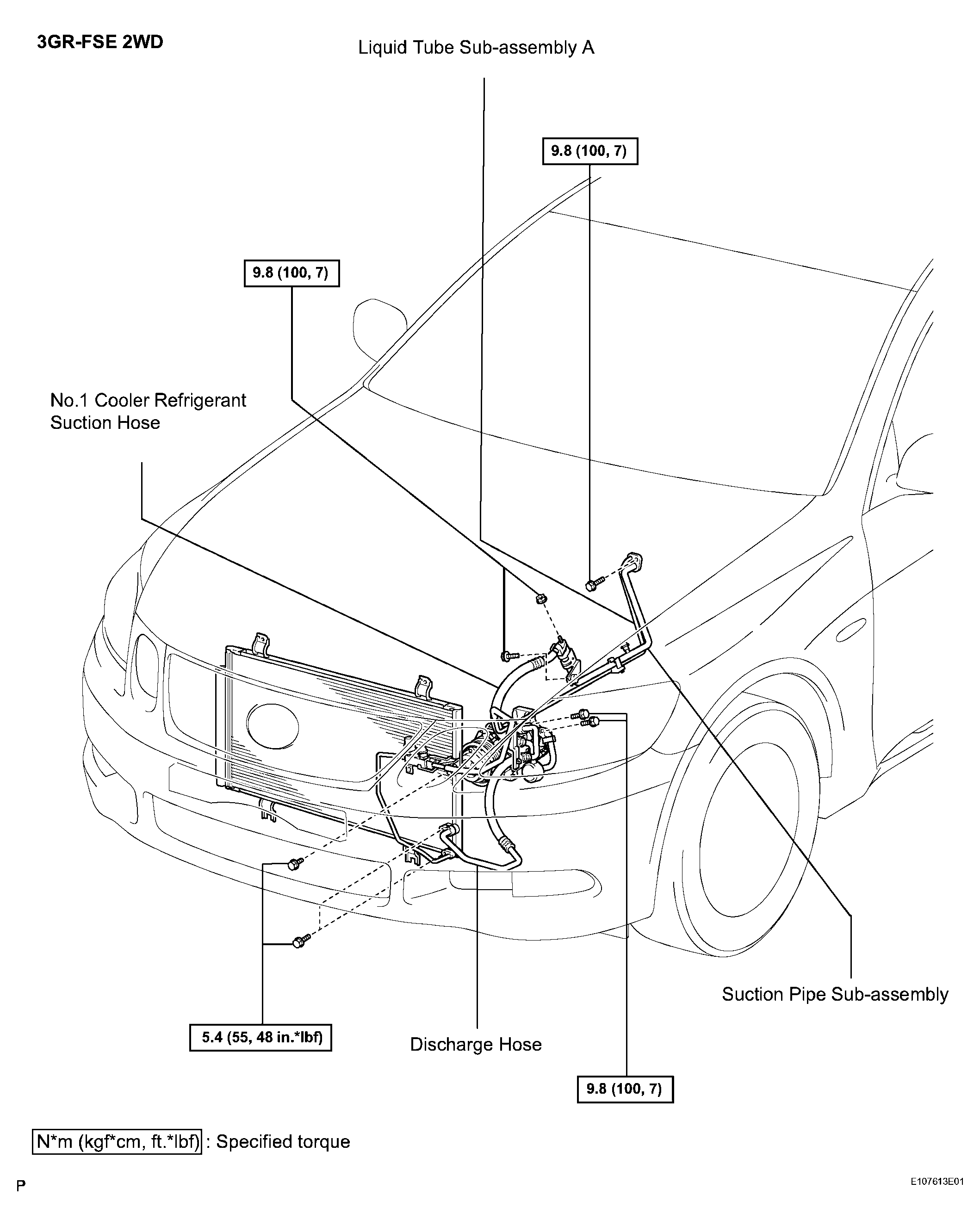

Fig 1: Refrigerant Line And Replacement Components With Torque Specifications (1 Of 2)
G04020699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

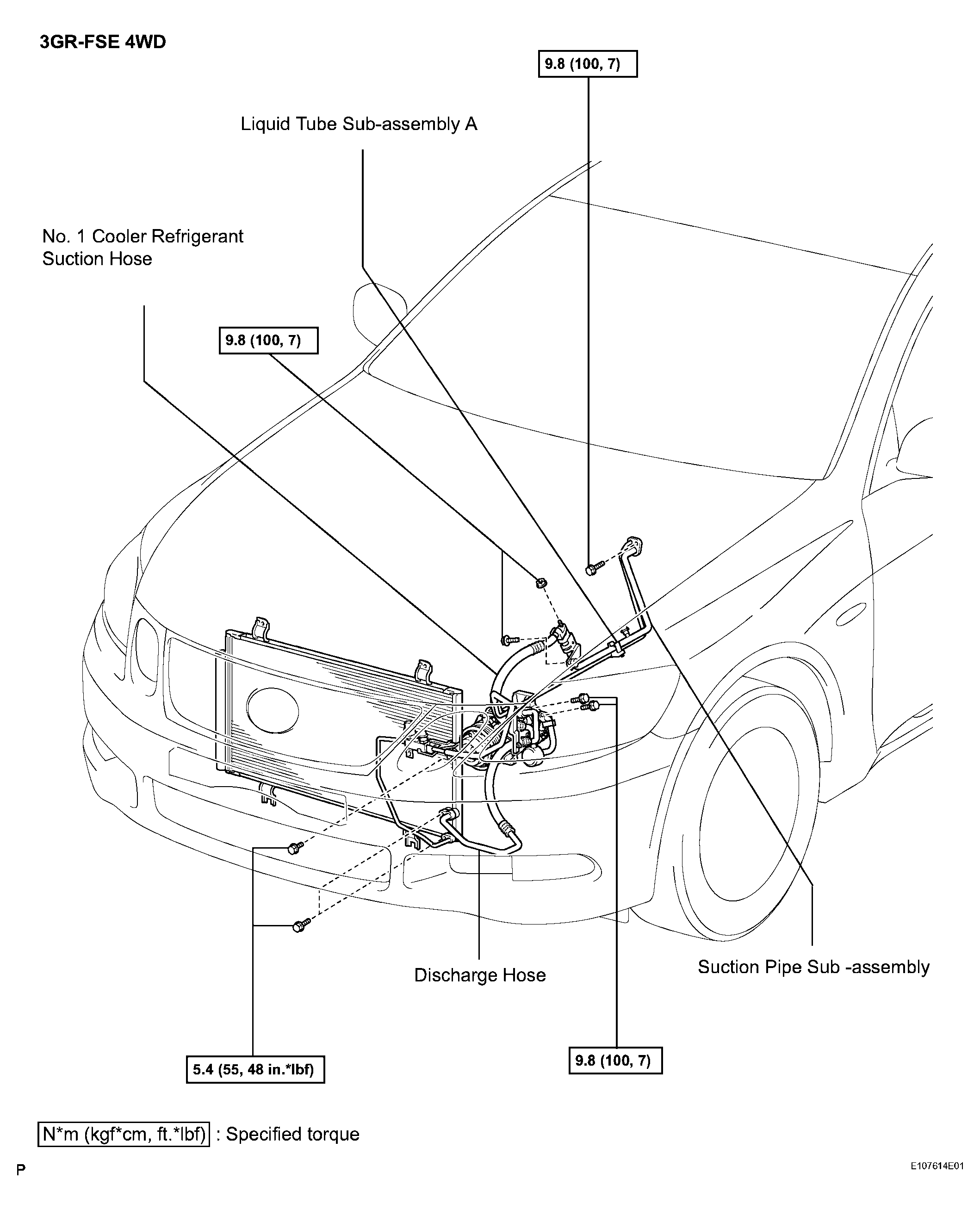

Fig 2: Refrigerant Line And Replacement Components With Torque Specifications (2 Of 3)
G04020700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

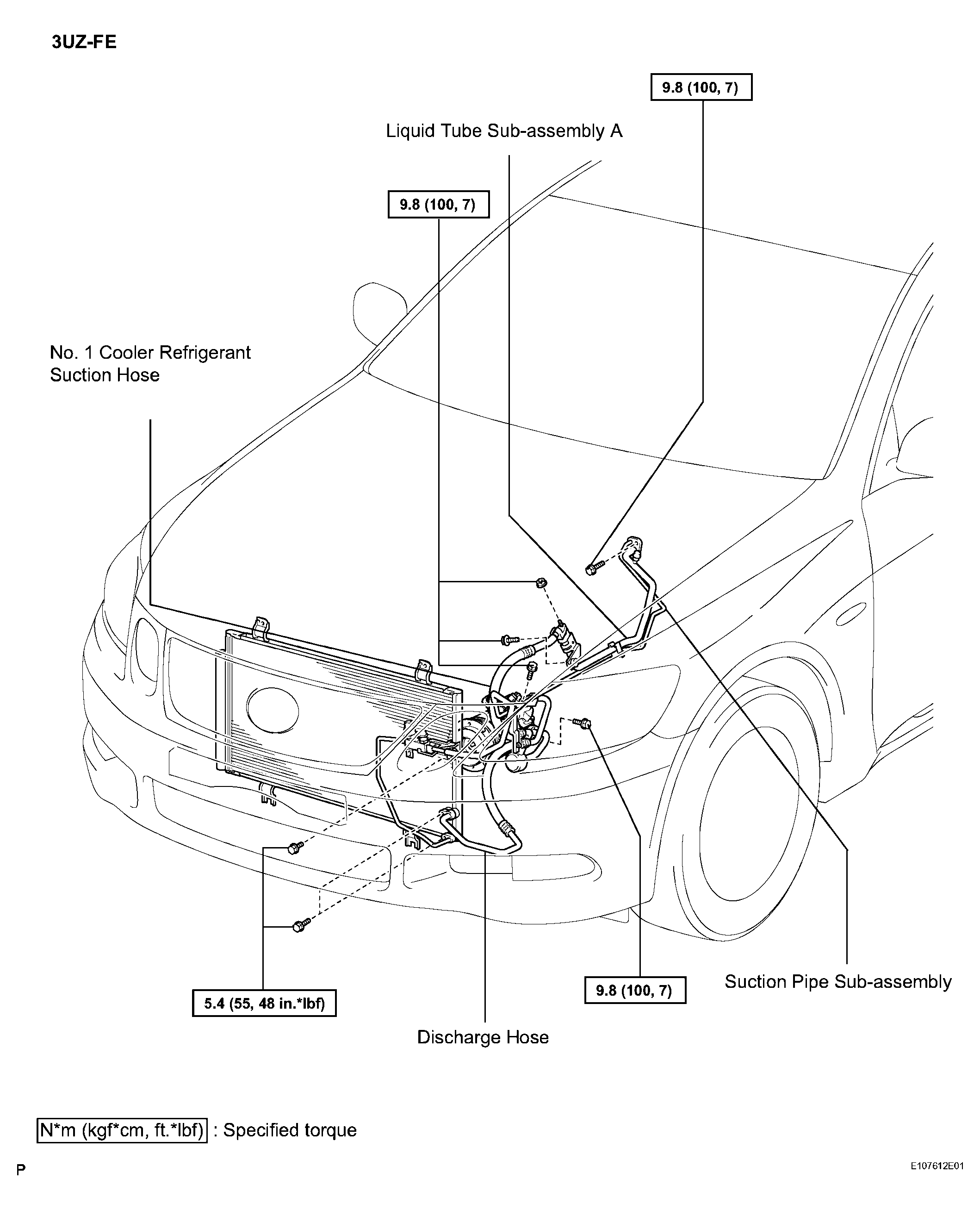

Fig 3: Refrigerant Line And Replacement Components With Torque Specifications (3 Of 3)
G04020701Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
