Ambient Temperature Sensor: Installation

  1. INSTALL AMBIENT TEMPERATURE SENSOR
    1. Install the sensor with the clamp.
    2. Connect the connector.
  2. INSTALL FRONT BUMPER COVER (See  INSTALLATION  )
  3. INSTALL COOL AIR INTAKE DUCT SEAL (See  INSTALLATION  )

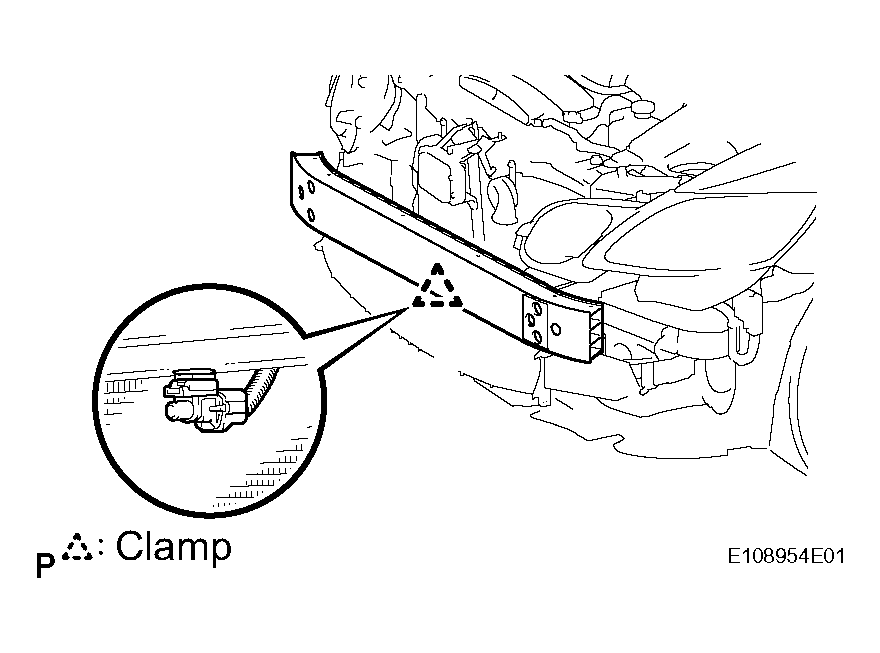

    Fig 1: Identifying Sensor With Clamp
    G04020836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  5. PERFORM INITIALIZATION
    1. Perform initialization (see INITIALIZATION ).
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
