Air Conditioning Unit: Inspection

  1. INSPECT DAMPER SERVOMOTOR (AIR MIX AND AIR OUTLET)
    1. Connect the battery's positive (+) lead to terminal 5 of each servomotor and the battery's negative (-) lead to terminal 4. Check that the damper operates smoothly.

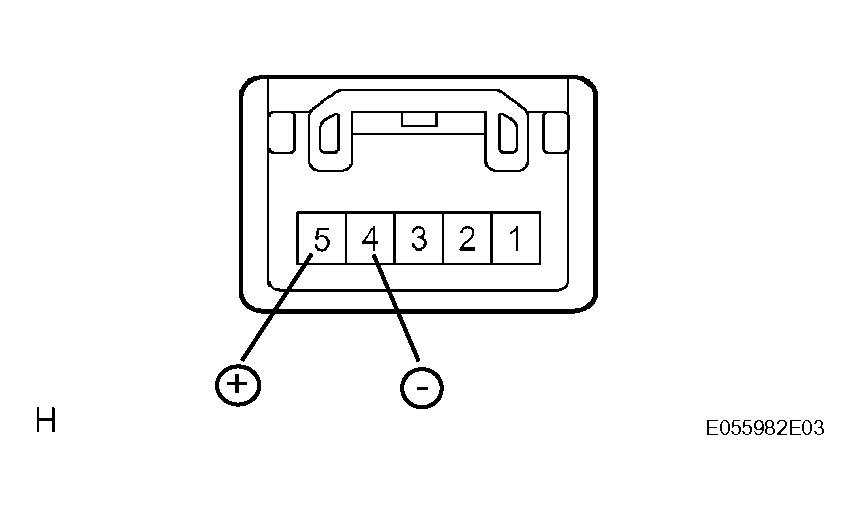

      Fig 1: Identifying Damper Servomotor (Air Mix And Air Outlet)
      G04020740Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the battery's positive (+) lead to terminal 4 of each servomotor and the battery's negative (-) lead to terminal 5. Check that the damper operates smoothly.

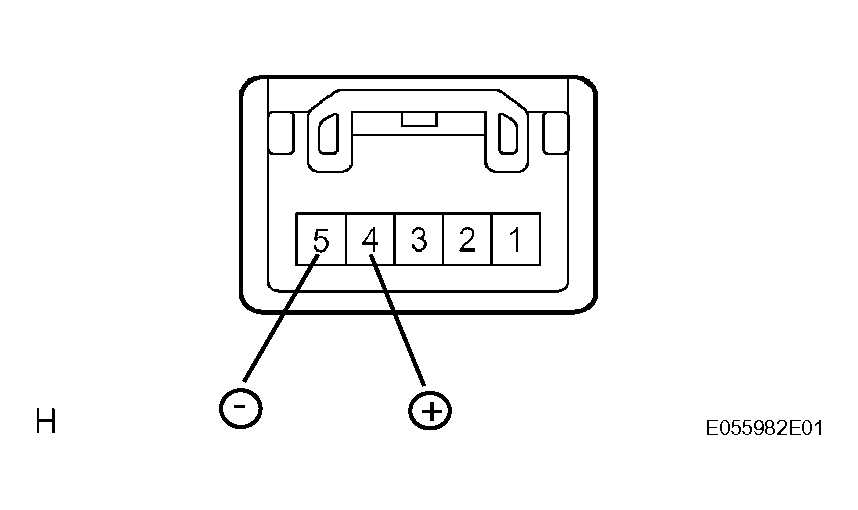

      Fig 2: Identifying Damper Connector Terminal
      G04020741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
