Front Airbag Sensor: Installation

WARNING: This page is about a different car, the 2006 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL FRONT AIRBAG SENSOR
    1. Check that the engine switch is off.
    2. Check that the battery negative (-) terminal is disconnected.
      CAUTION: After disconnecting the negative battery terminal, wait for at least 90 seconds before starting the operation.
    3. Connect the connector.
    4. Install the front airbag sensor with the 2 bolts.

      Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)

      NOTE:
      • If the front airbag sensor has been dropped, or there are any cracks, dents or other defects in the case, bracket or connector, replace it with a new one.
      • When installing the front airbag sensor, be careful that the SRS wiring does not interfere with other parts and that it is not pinched between other parts.

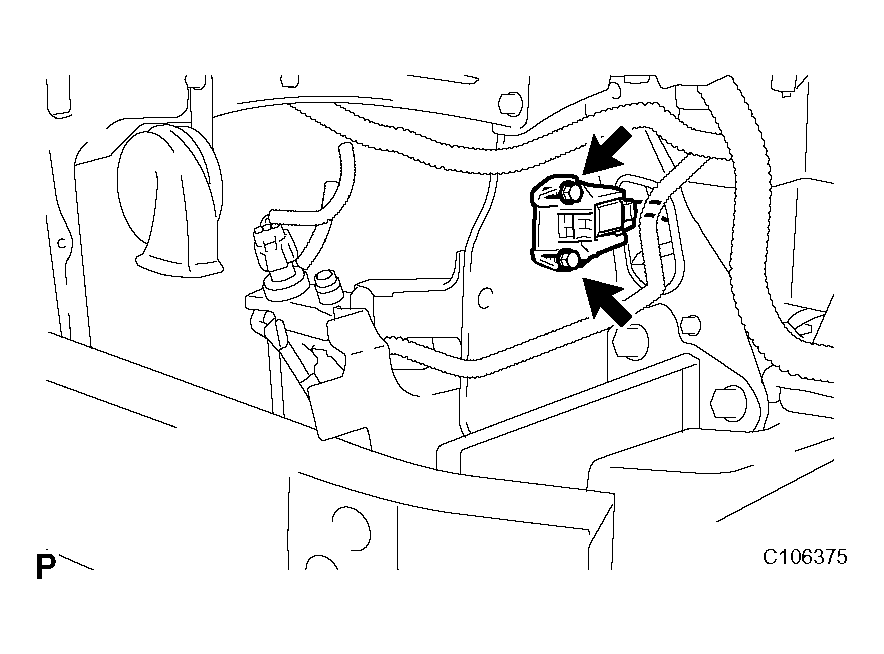

        Fig 1: Identifying Front Airbag Sensor
        G04021256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Check that there is no looseness in the installation parts of the front airbag sensor.
  2. INSTALL HEADLIGHT ASSEMBLY (See  INSTALLATION  )
  3. INSTALL FRONT BUMPER COVER (See  INSTALLATION  )
  4. INSTALL COOL AIR INTAKE DUCT SEAL (See  INSTALLATION  )
  5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  6. PERFORM INITIALIZATION
  7. INSPECT SRS WARNING LIGHT
  8. VEHICLE PREPARATION FOR HEADLIGHT AIM ADJUSTMENT (See  ADJUSTMENT  )
  9. PREPARATION FOR HEADLIGHT AIMING (See  ADJUSTMENT  )
  10. HEADLIGHT AIMING INSPECTION (See  ADJUSTMENT  )
  11. HEADLIGHT AIMING ADJUSTMENT (See  ADJUSTMENT  )
  12. ADJUST FOG LIGHT AIMING (See  ADJUSTMENT  )
