Front Airbag Sensor: Components

WARNING: This page is about a different car, the 2006 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

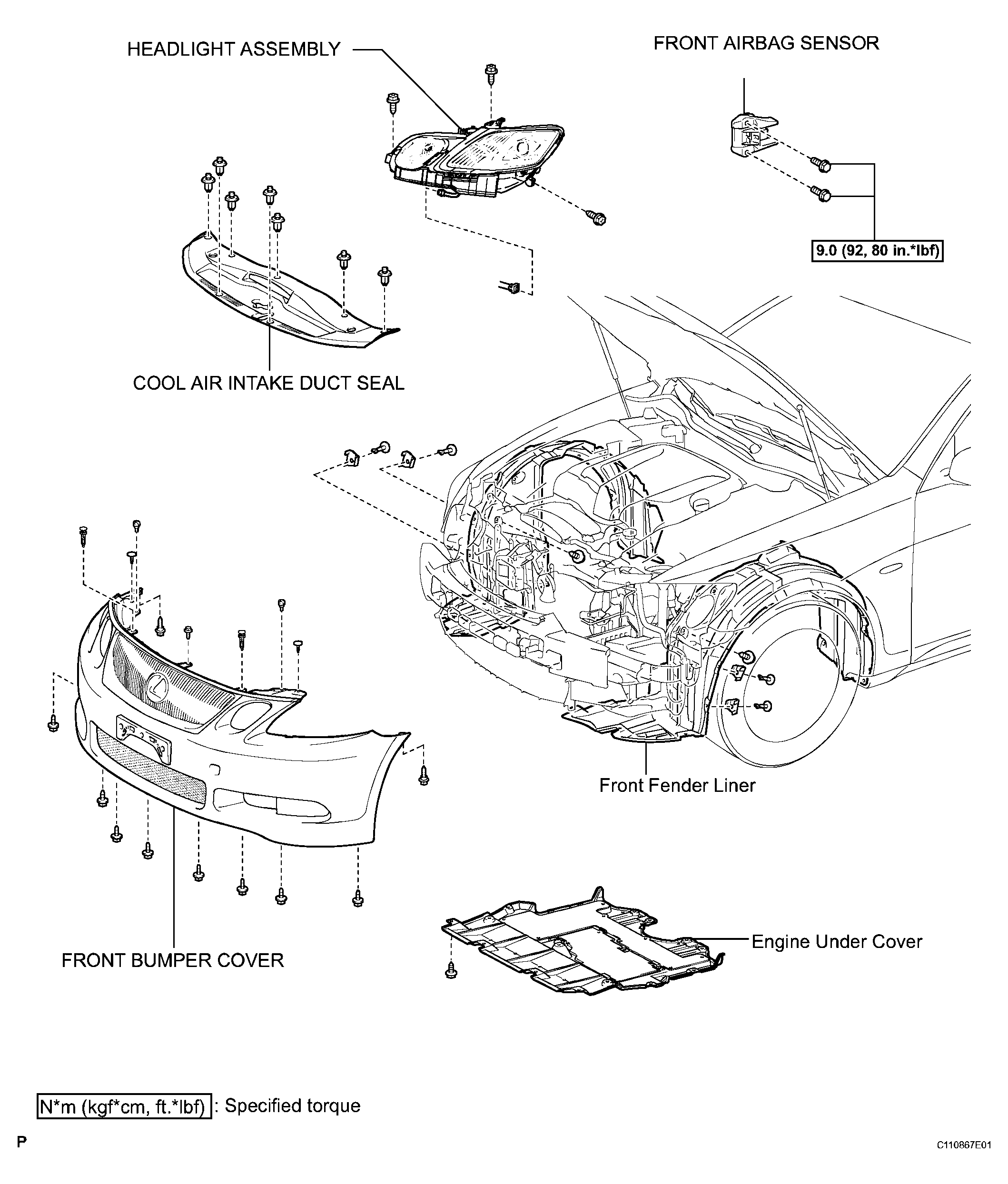

Fig 1: Front Airbag Sensor Replacement Components With Torque Specifications
G04021254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
