Rear Stabilizer Bar: Components

WARNING: This page is about a different car, the 2006 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

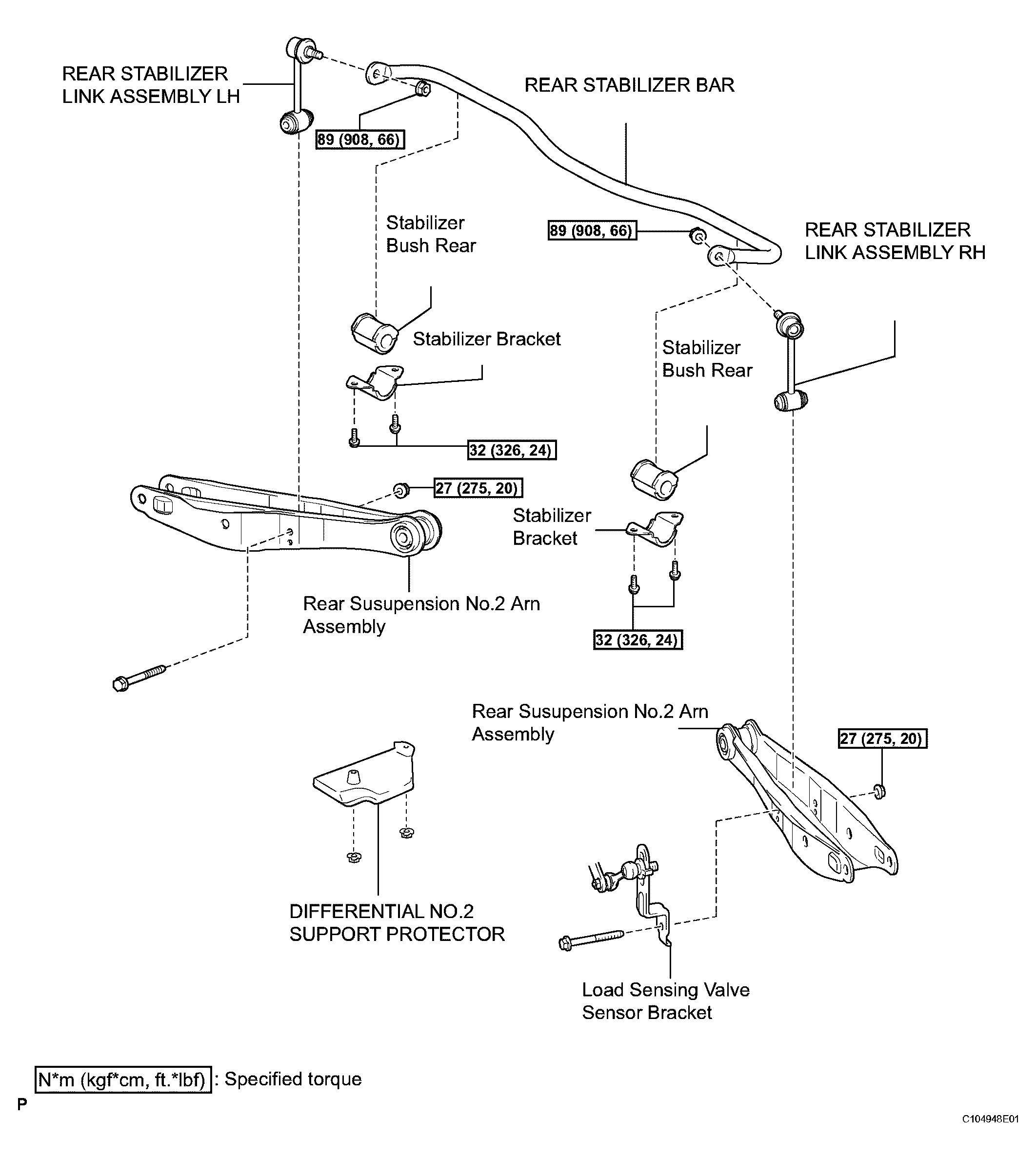

Fig 1: Rear Stabilizer Bar Replacement Components With Torque Specifications
G04024813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
