Front Lower Ball Joint: Components

WARNING: This page is about a different car, the 2006 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

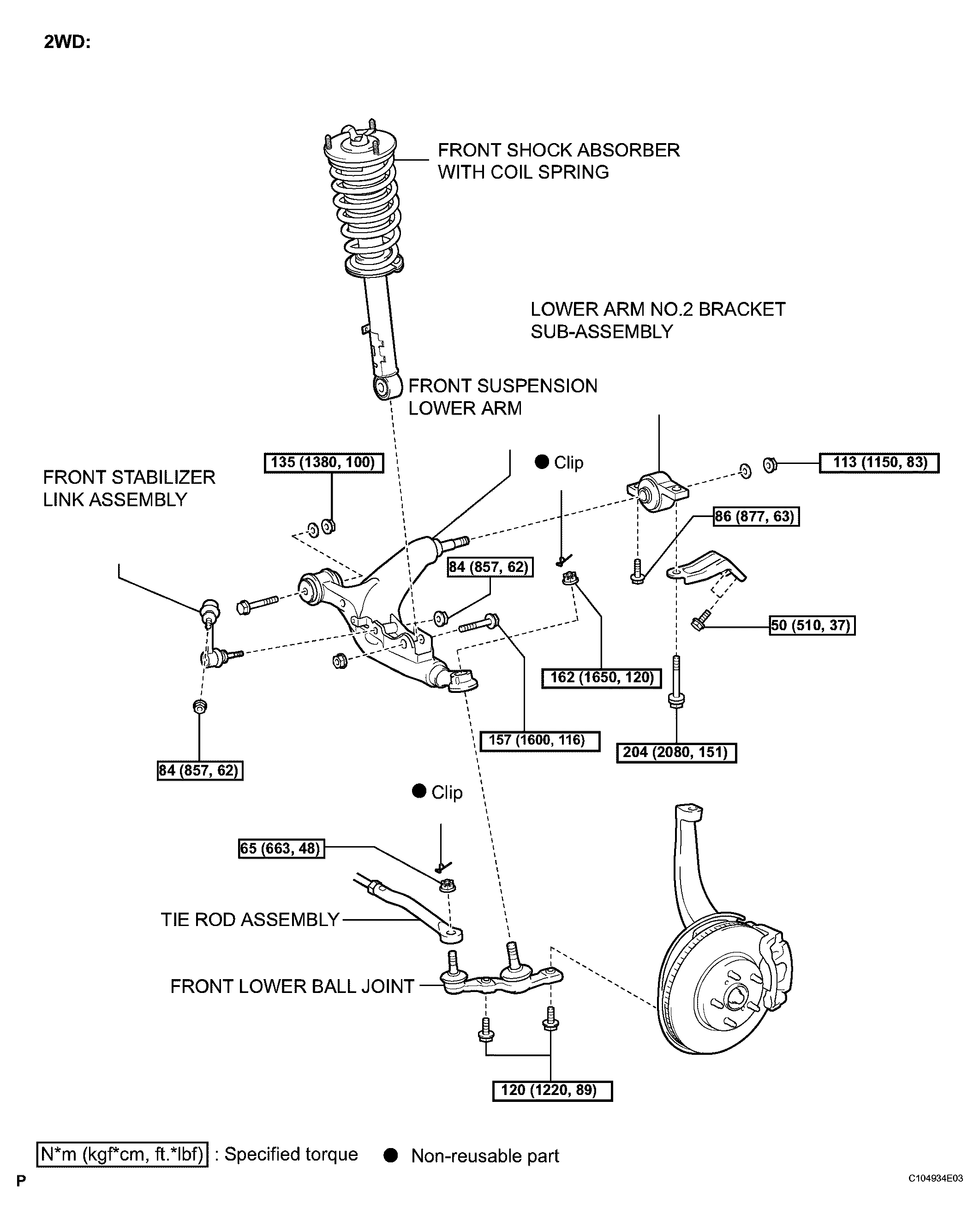

Fig 1: Front Lower Ball Joint Replacement Components With Torque Specifications (2WD)
G04024722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

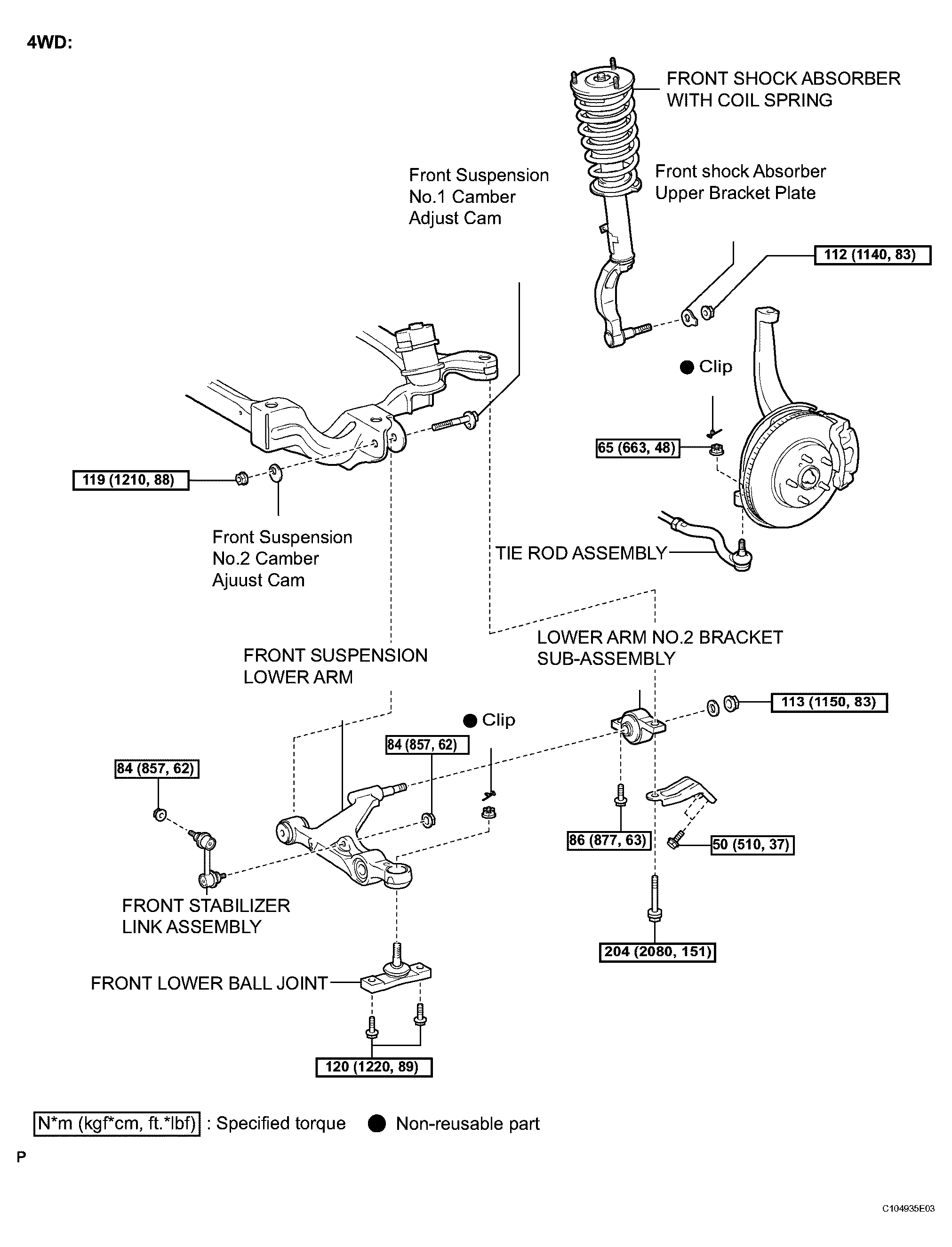

Fig 2: Front Lower Ball Joint Replacement Components With Torque Specifications (4WD)
G04024723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
