DTC P2118 Throttle Actuator Control Motor Current Range / Performance: Wiring Diagram

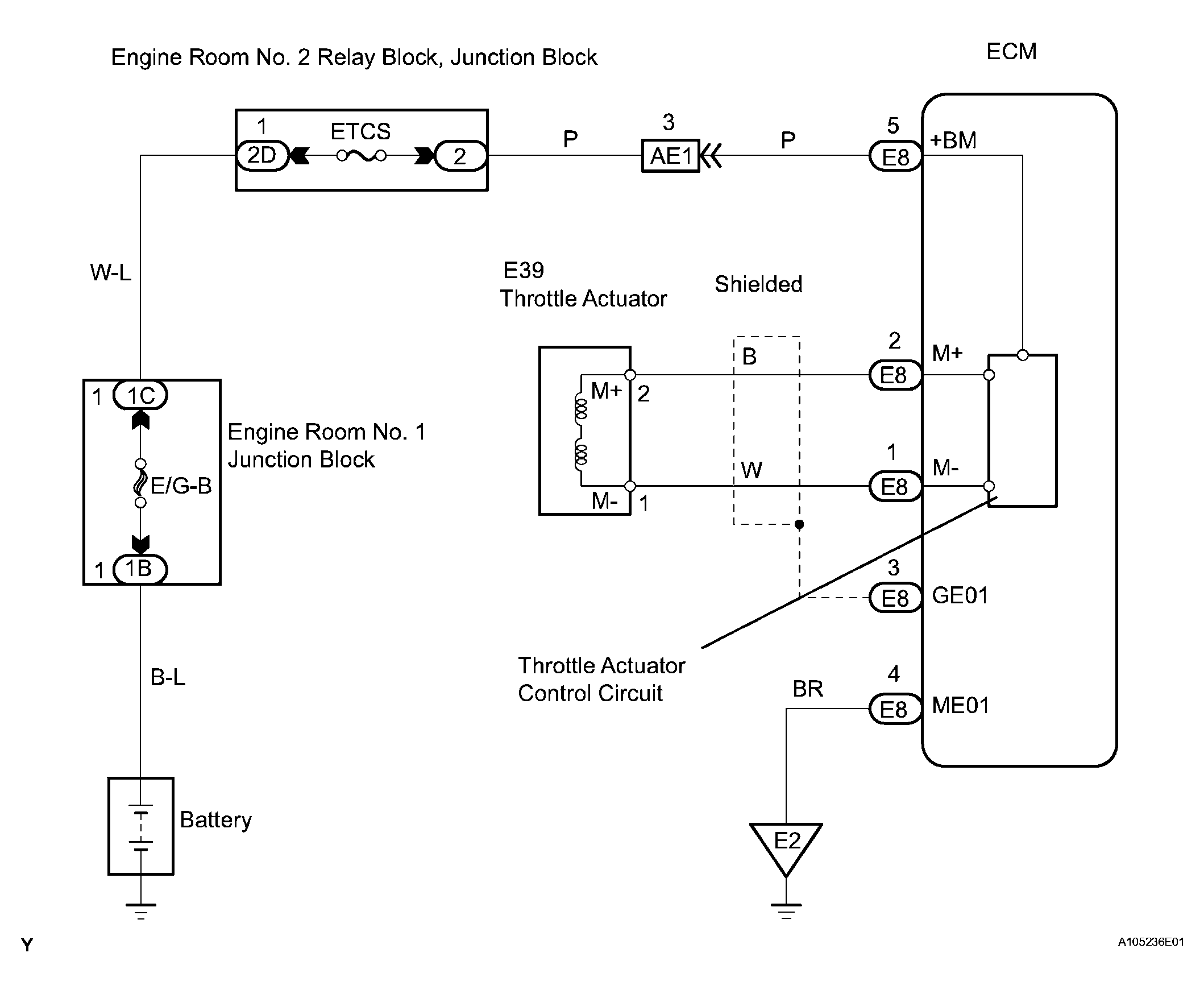

Fig 1: Identifying Throttle Actuator System Wiring Diagram
G04027083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Read freeze frame data using the intelligent tester. Freeze frame data records the engine conditions when a malfunction is detected. When troubleshooting, freeze frame data can help determine if the vehicle was running or stopped, if the engine was warmed up or not, if the air-fuel ratio was LEAN or RICH, and other data from the time the malfunction occurred.

  1. INSPECT FUSE (ETCS)
    1. Remove the ETCS fuse from the engine room No. 2 relay block.
    2. Measure the resistance of the fuse.

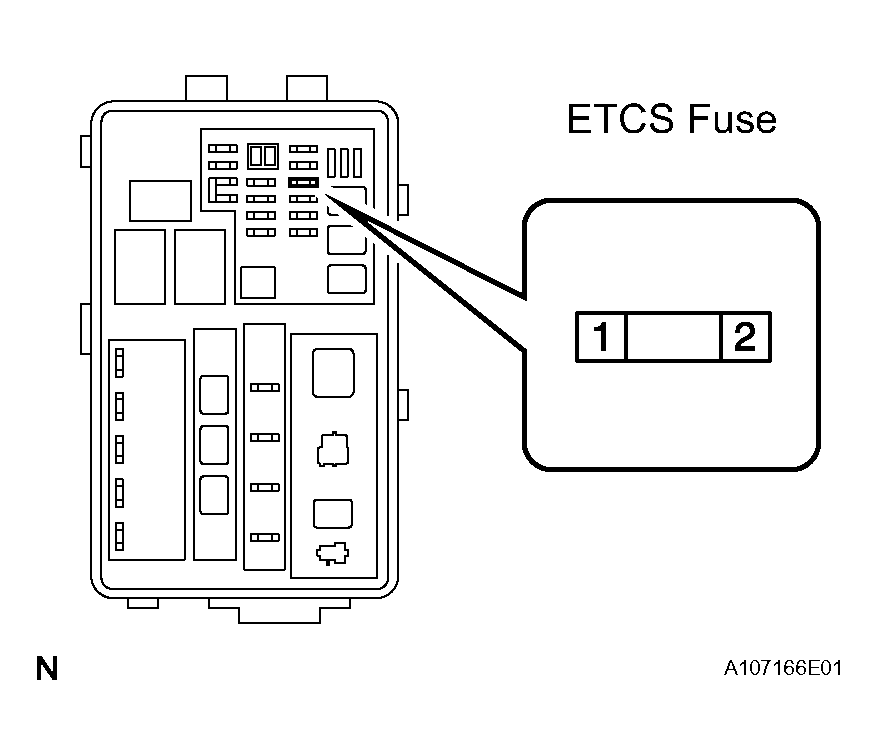

      Fig 2: Identifying ETCs Fuse From Engine Room Relay Block
      G04027084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance:

      Below 1 Ω

    NG : REPLACE FUSE

    OK : GO TO NEXT STEP.

  2. READ DATA LIST (+BM VOLTAGE)
    1. Connect the intelligent tester to the CAN VIM. Then connect the CAN VIM to the DLC3.
    2. Turn the engine switch on (IG).
    3. Enter the following menus: DIAGNOSIS / ENHANCED OBD II / DATA LIST / ALL / +BM.
      Fig 3: Identifying Intelligent Tester To CAN VIM
      G04027085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard voltage:

      9 to 14 V

    OK : CHECK FOR INTERMITTENT PROBLEM

    NG : GO TO NEXT STEP.

  3. CHECK WIRE HARNESS (ECM - ETCS FUSE, ETCS FUSE - BATTERY)
    1. Remove the ETCS fuse from the engine room No. 2 relay block.
    2. Disconnect the E8 ECM connector.
    3. Measure the resistance of the wire harness side connectors.

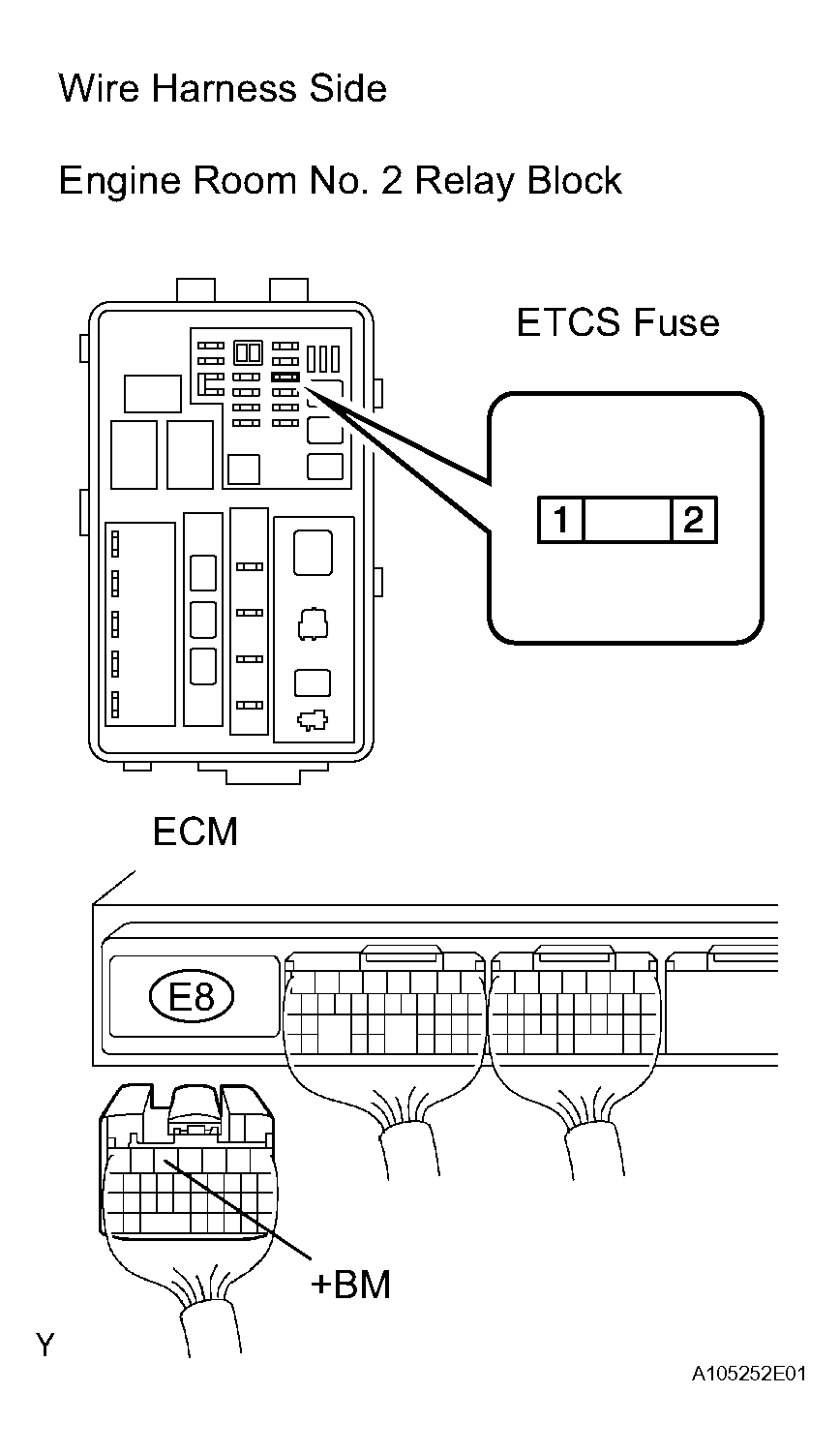

      Fig 4: Identifying ETCS Fuse From Engine Room Relay Block
      G04027086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance

      TESTER CONNECTION AND SPECIFIED CONDITION CHART

      Tester Connection Specified Condition
      Relay block ETCS fuse terminal 1 - Battery positive (+) terminal Below 1 Ω
      Relay block ETCS fuse terminal 2 - E8-5 (+BM) Below 1 Ω
      Relay block ETCS fuse terminal 1 or Battery positive (+) terminal - Body ground 10 kΩ or higher
      Relay block ETCS fuse terminal 2 or E8-5 (+BM) - Body ground 10 kΩ or higher

    NG : REPAIR OR REPLACE HARNESS AND CONNECTOR

    OK : REPLACE ECM
