Intake Manifold: Removal

  1. DISCHARGE FUEL SYSTEM PRESSURE ( REMOVAL  )
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  3. DRAIN ENGINE COOLANT ( ON-VEHICLE INSPECTION  )
  4. REMOVE V-BANK COVER ASSEMBLY
    1. Remove the 2 nuts and cover.
  5. REMOVE COOL AIR INTAKE DUCT SEAL ( REMOVAL  )
  6. REMOVE AIR CLEANER INLET
    1. Remove the bolt and inlet.
  7. REMOVE ENGINE ROOM SIDE COVER RH ( REMOVAL  )
  8. REMOVE ENGINE ROOM SIDE COVER LH ( REMOVAL  )
  9. REMOVE INTAKE AIR CONNECTOR PIPE ( REMOVAL  )
  10. REMOVE THROTTLE BODY ASSEMBLY ( REMOVAL  )
  11. REMOVE NO. 4 V-BANK COVER BRACKET
    1. Disconnect the connector as shown in A in the illustration below.
    2. Remove the bolt and bracket.
  12. REMOVE V-BANK COVER BRACKET
    1. Remove the bolt and bracket as shown in B in the illustration below.
  13. REMOVE VACUUM SWITCHING VALVE ASSEMBLY (for EVAP)
    1. Disconnect the connector from the VSV, as shown in C in the illustration below.
    2. Disconnect the vacuum hose from the VSV, as shown in C in the illustration below.
    3. Remove the bolt and VSV as shown in C in the illustration below.
  14. REMOVE NO. 2 V-BANK COVER BRACKET
    1. Remove the bolt and bracket from the intake manifold, as shown in D in the illustration below.
  15. REMOVE NO. 3 V-BANK COVER BRACKET
    1. Disconnect the connector as shown in E in the illustration below.
    2. Remove the bolt and bracket as shown in E in the illustration below.

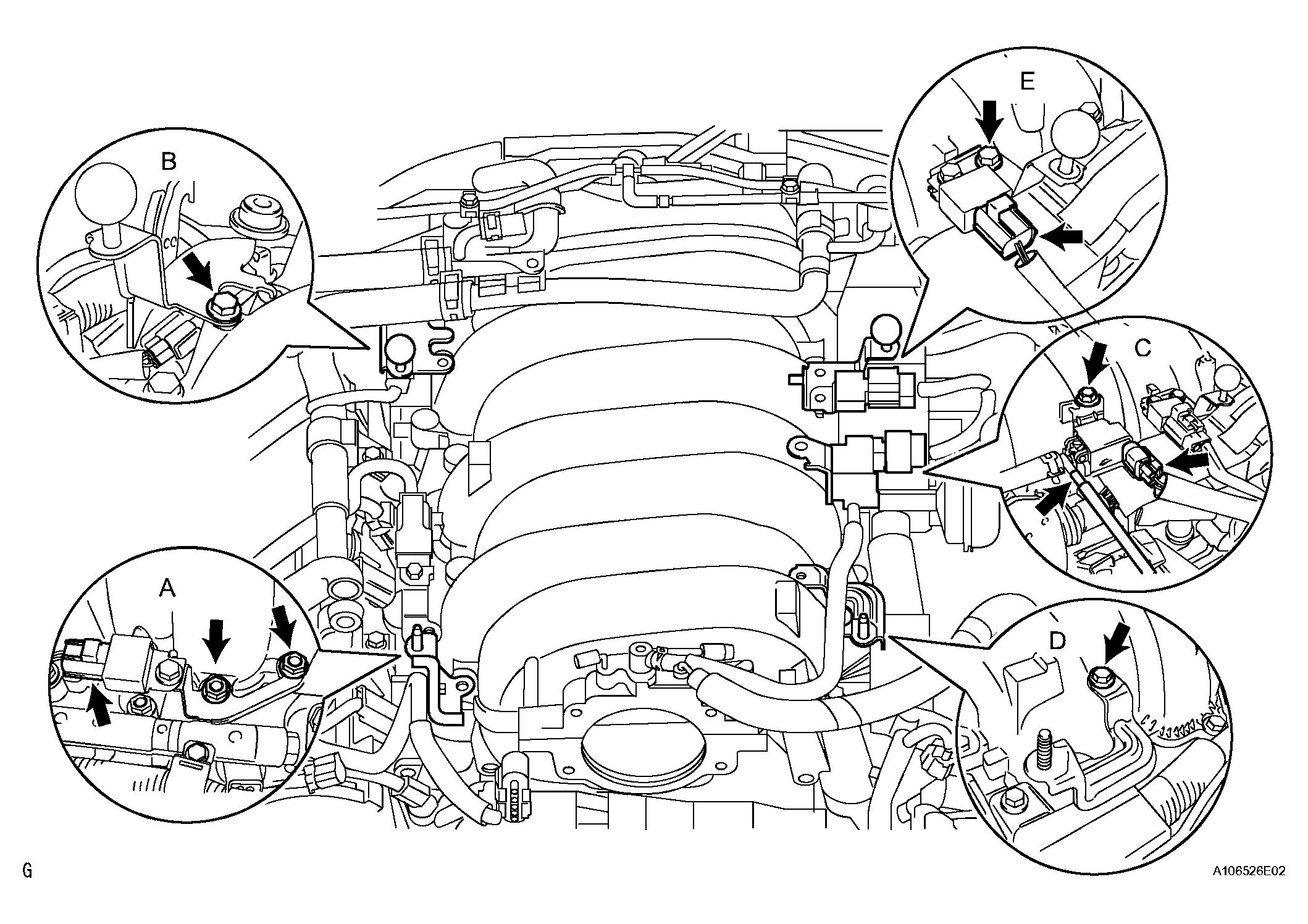

      Fig 1: Identifying Bolt And Bracket
      G04027958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. DISCONNECT ENGINE WIRE
    1. Remove the 3 bolts and disconnect the engine wire protector (LH side) from the intake manifold upper and camshaft bearing cap.
    2. Disconnect the 2 wire clamps on the engine wire (RH side) from the brackets on the RH delivery pipe.

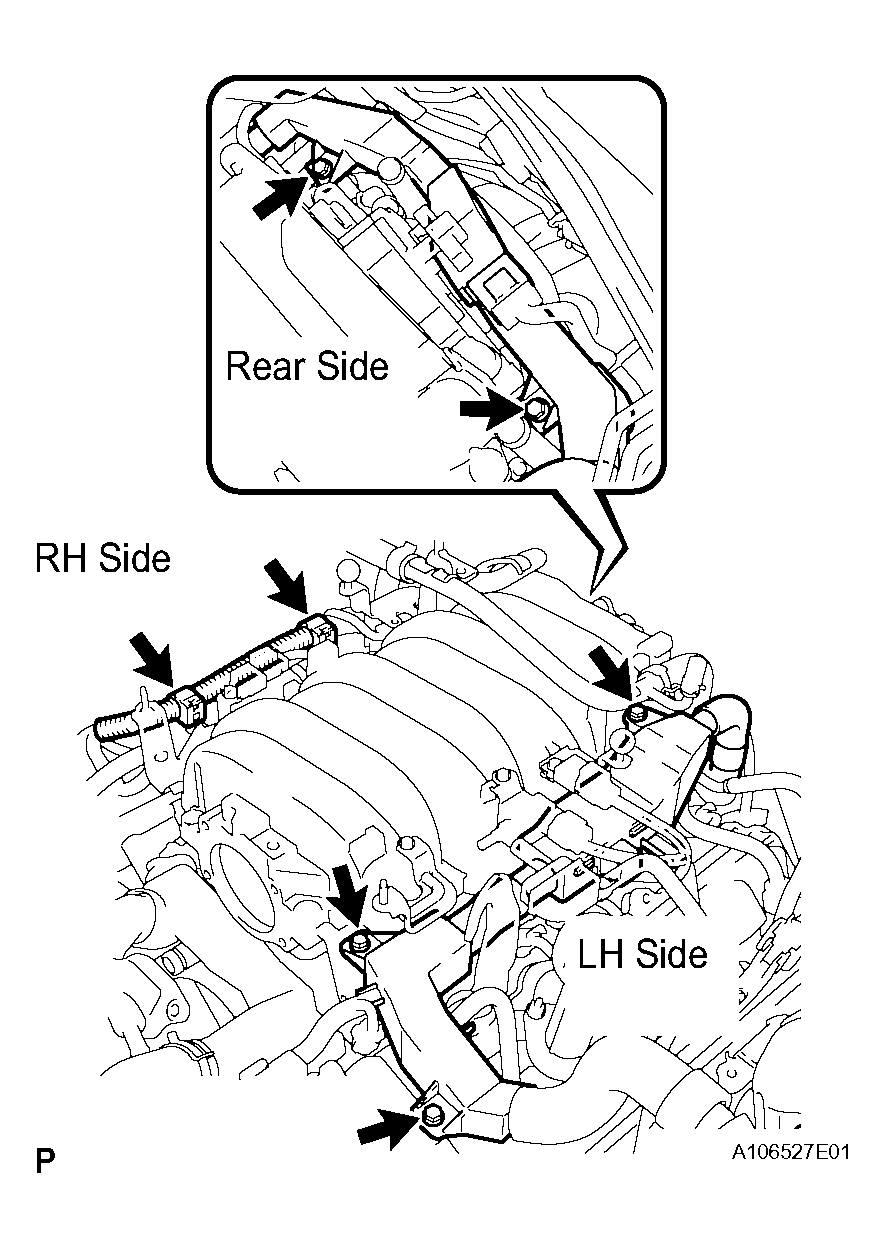

      Fig 2: Identifying 2 Wire Clamps On Engine Wire
      G04027959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 bolts and disconnect the engine wire protector (rear side) from the rear water bypass joint and RH cylinder head.
  17. DISCONNECT NO. 2 FUEL PIPE SUB-ASSEMBLY

    ON-VEHICLE INSPECTION

  18. REMOVE INTAKE MANIFOLD SUB-ASSEMBLY
    1. Disconnect the 8 injector connectors.
    2. Remove the 6 bolts, 4 nuts, intake manifold and 2 gaskets.

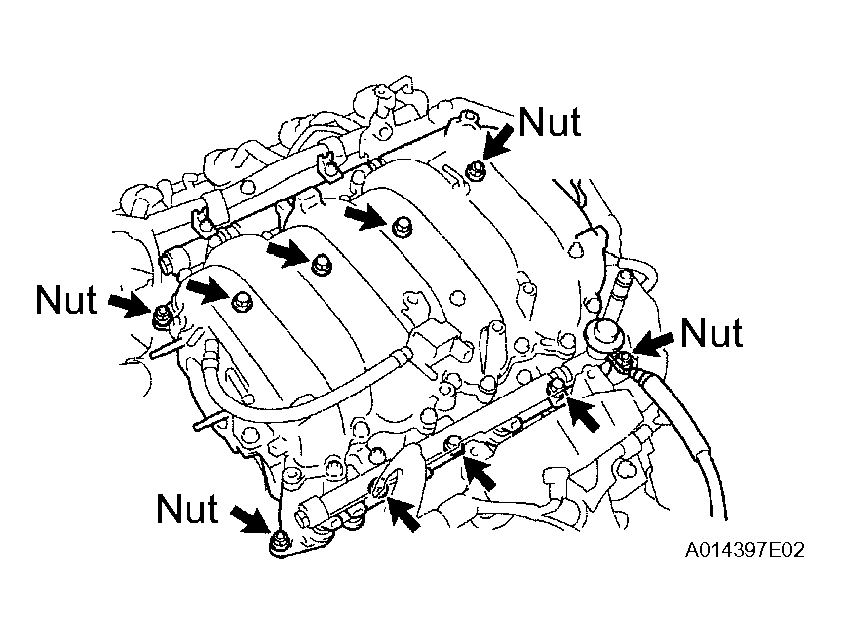

      Fig 3: Identifying 8 Injector Connectors
      G04027960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
