System Diagram

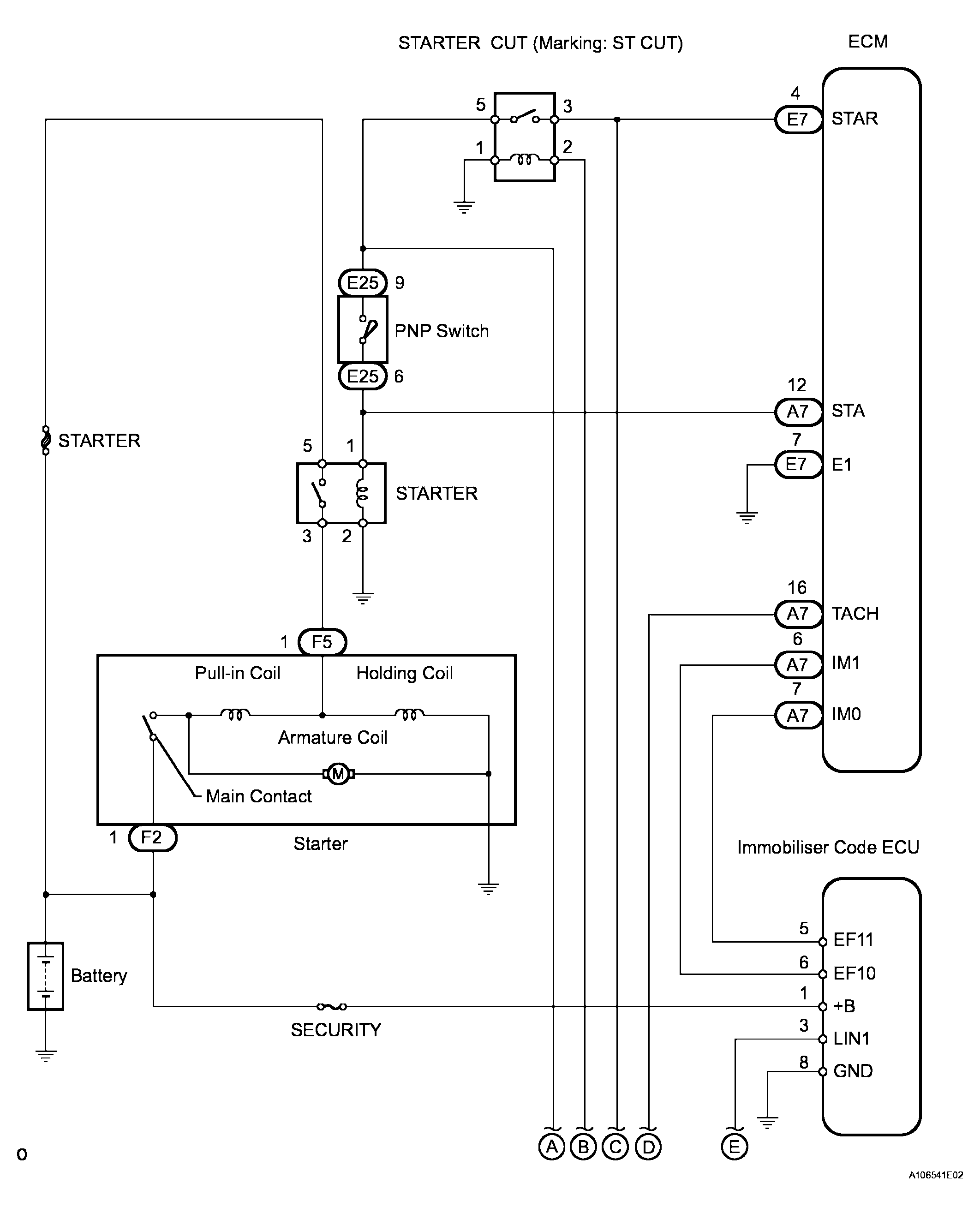

Fig 1: System Diagram - Starting System (1 Of 2)
G04028123Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

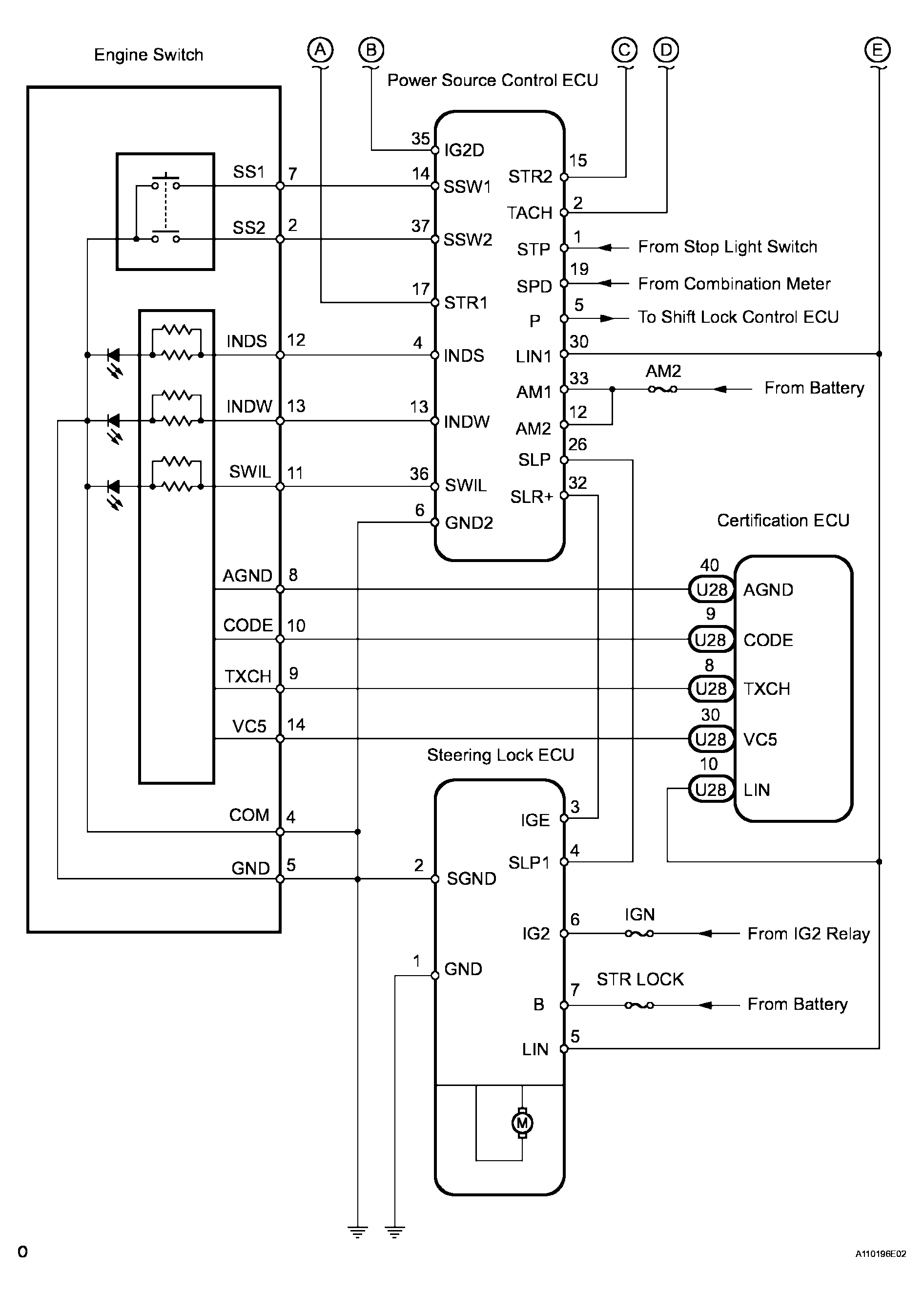

Fig 2: System Diagram - Starting System (2 Of 2)
G04028124Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
