Charging (3UZ-FE): Generator: Components

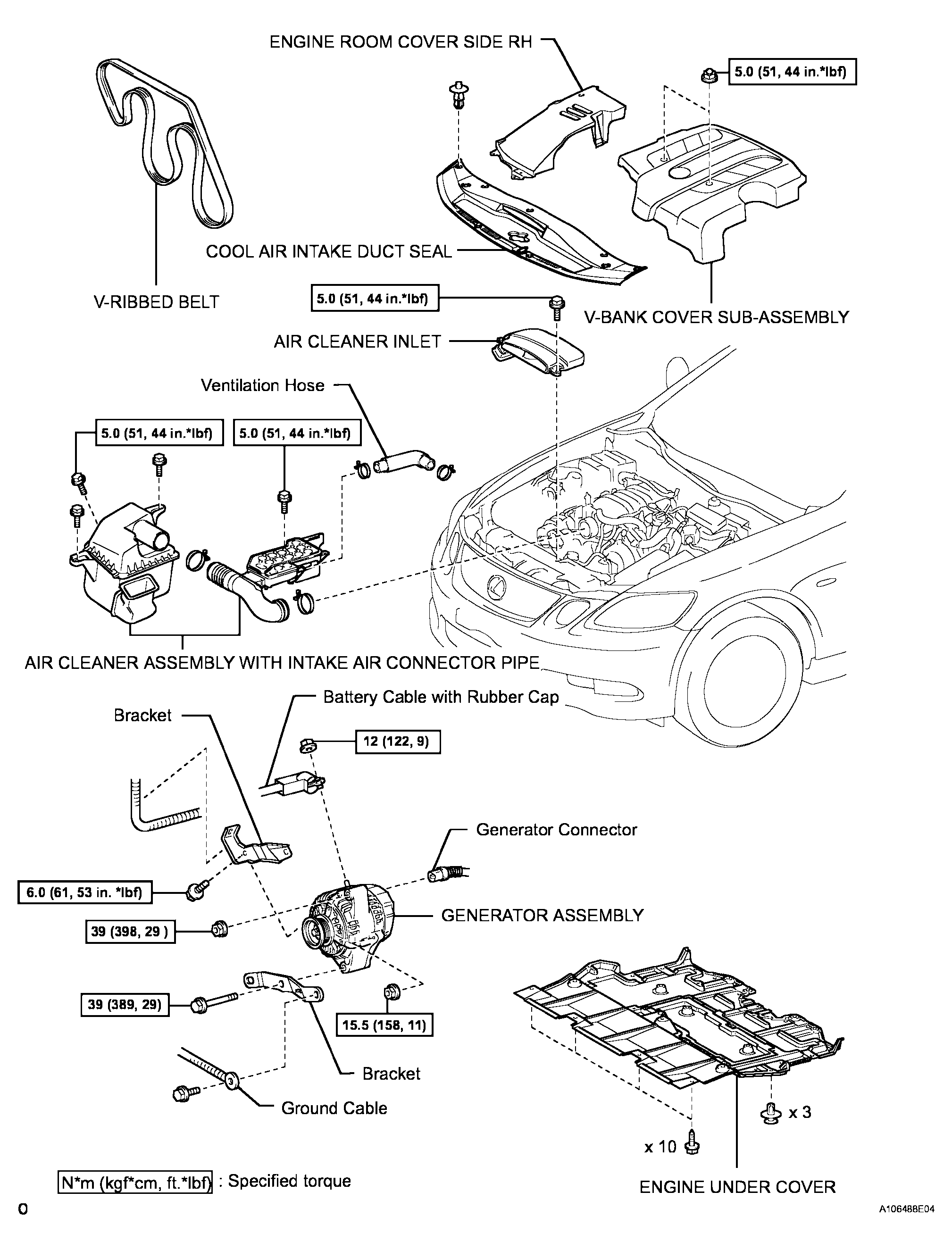

Fig 1: Generator Replacement Components With Torque Specifications

G04028209

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
