Lexus
>>
2006
>>
GS 430
>>
Repair and Diagnosis
>>
Electrical
>>
Charging Systems
>>
Charging (3UZ-FE)
>>
Charging System
>>
System Diagram
System Diagram

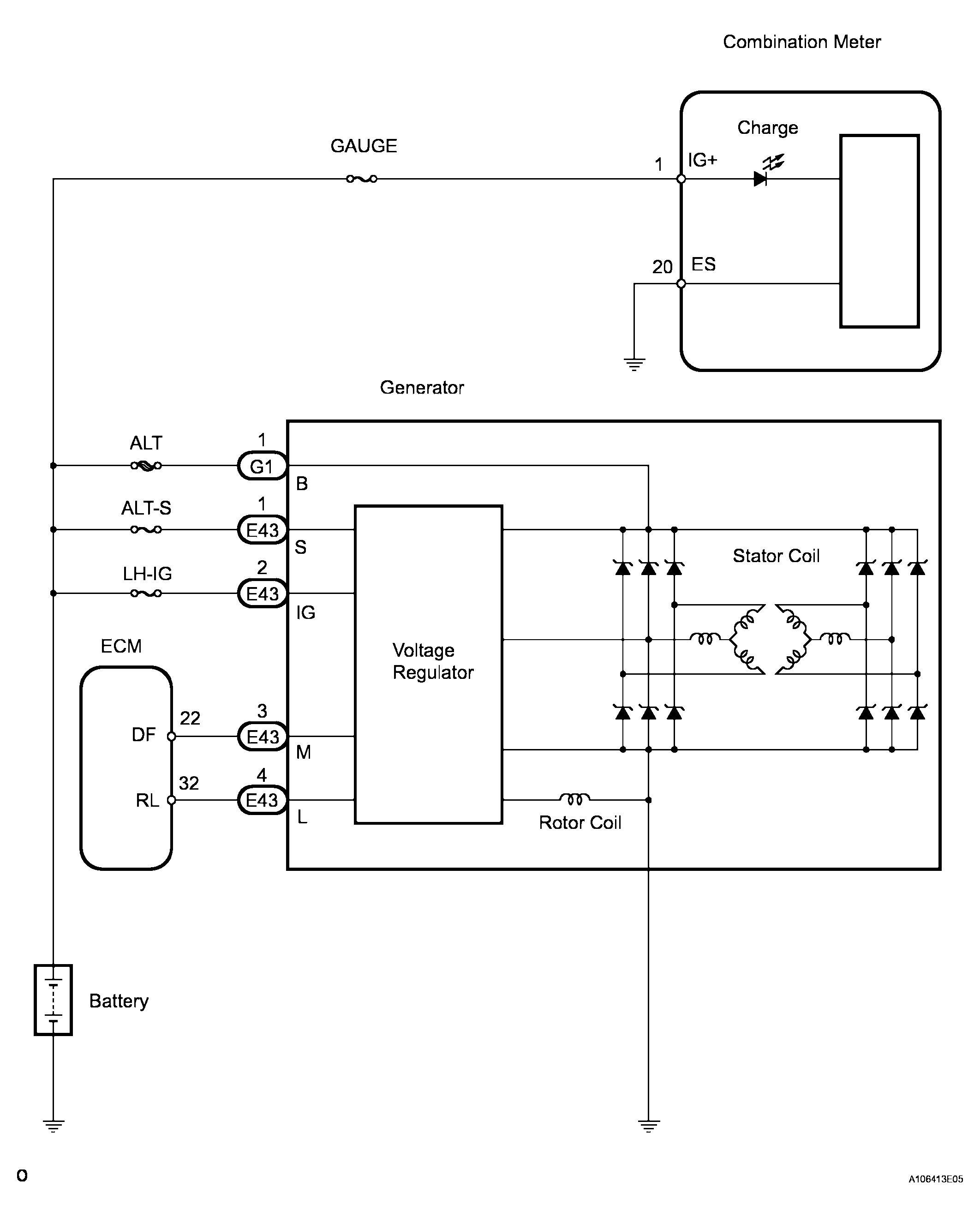

Fig 1: System Diagram - Charging System
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
