ECT and A/T Indicator for 3GR-FSE: Notes

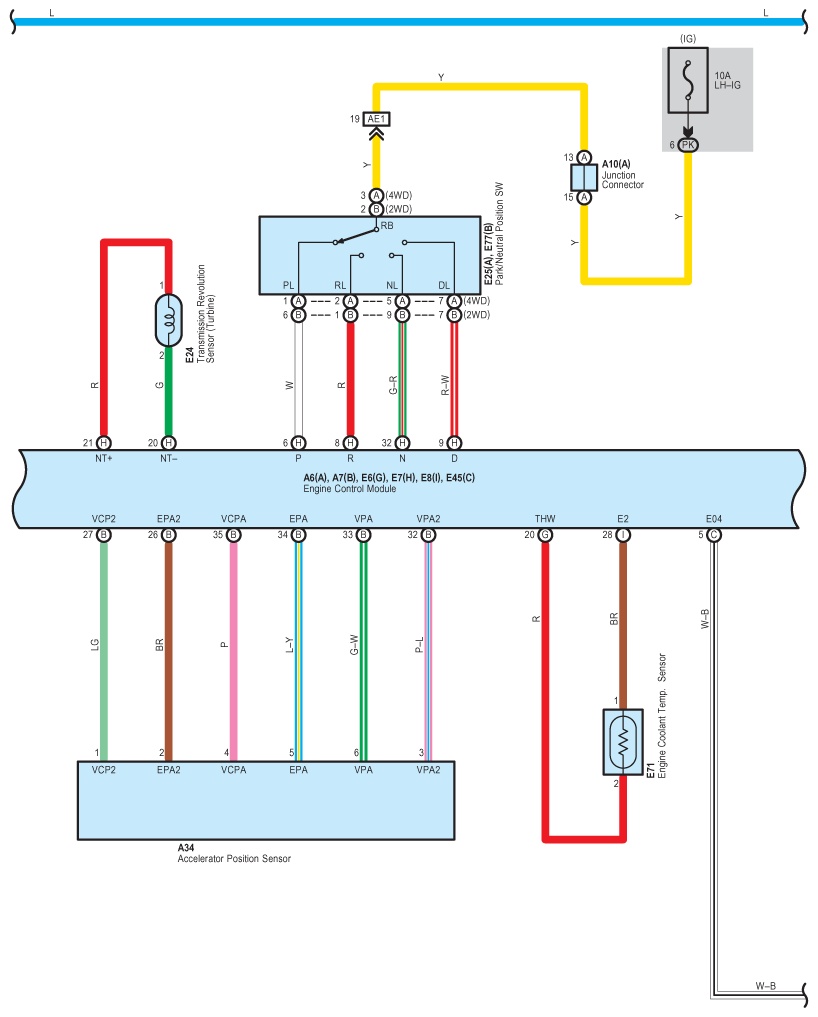

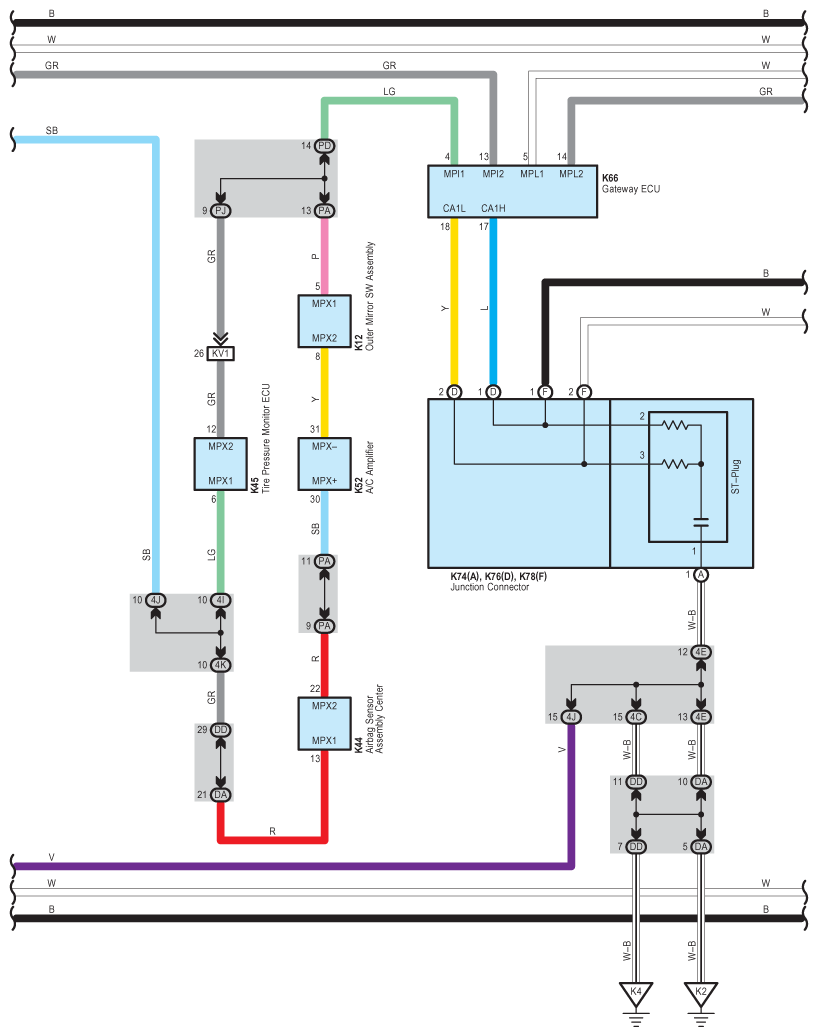

Fig 1: ECT And A/T Indicator For 3GR-FSE System Wiring Diagram (1 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

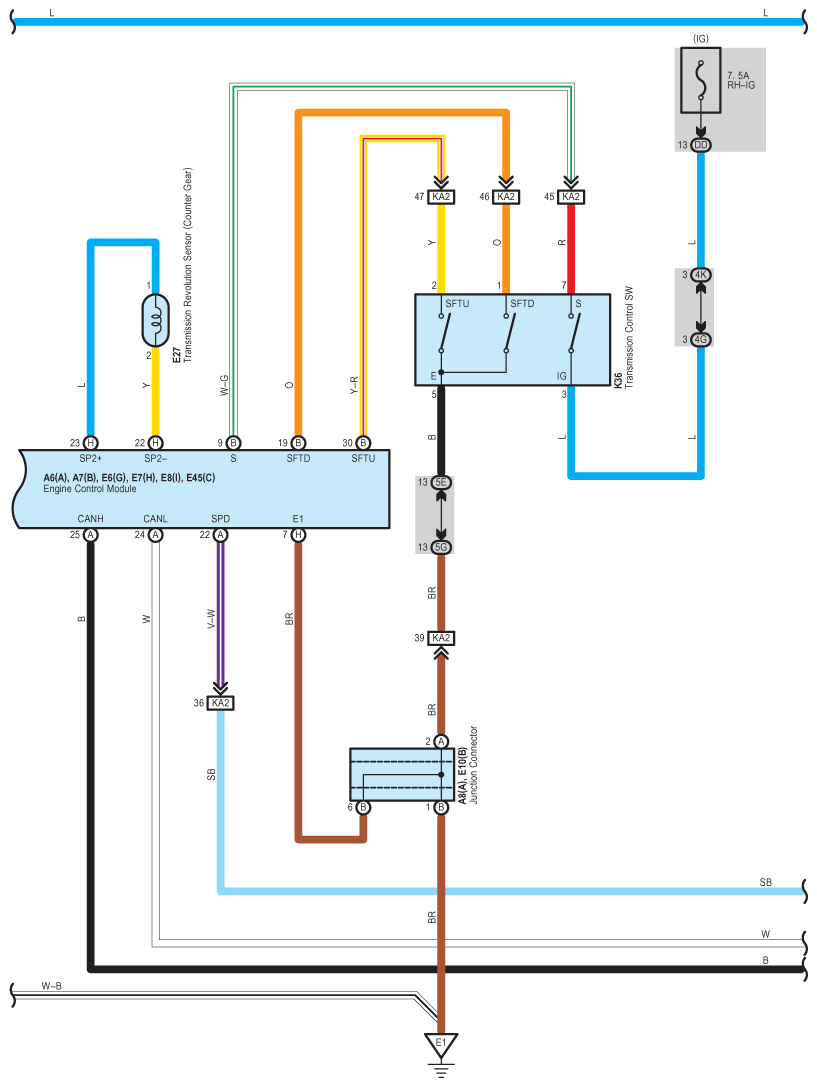

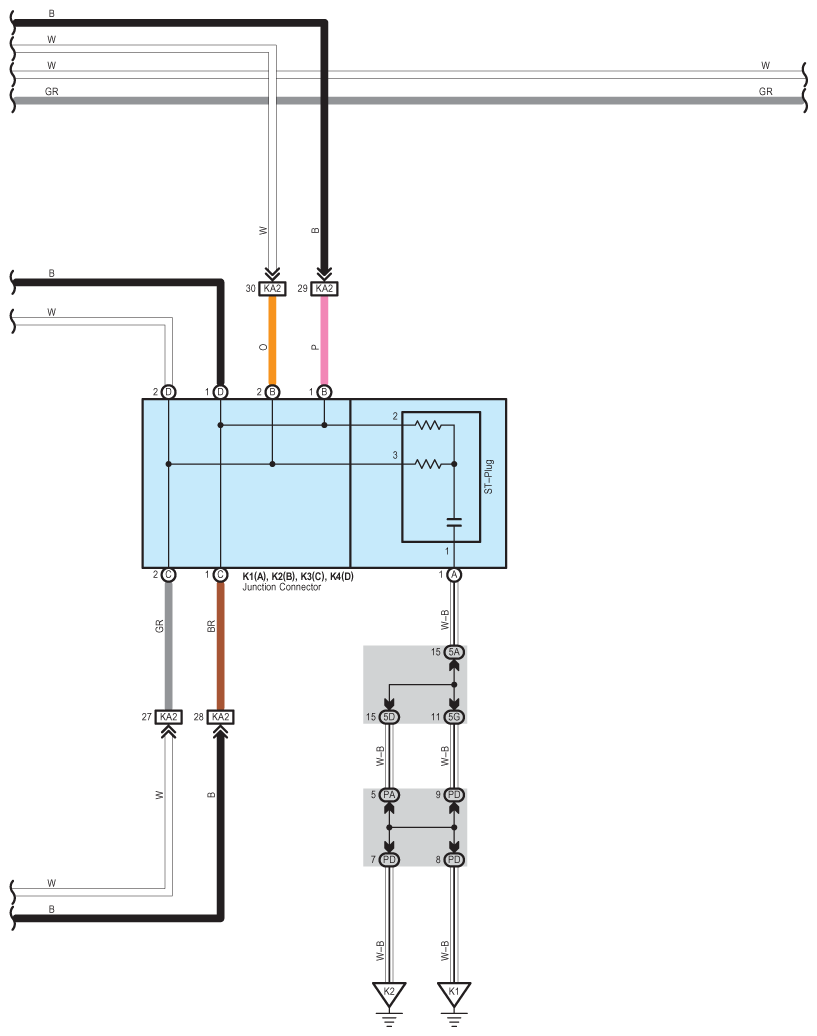

Fig 2: ECT And A/T Indicator For 3GR-FSE System Wiring Diagram (2 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

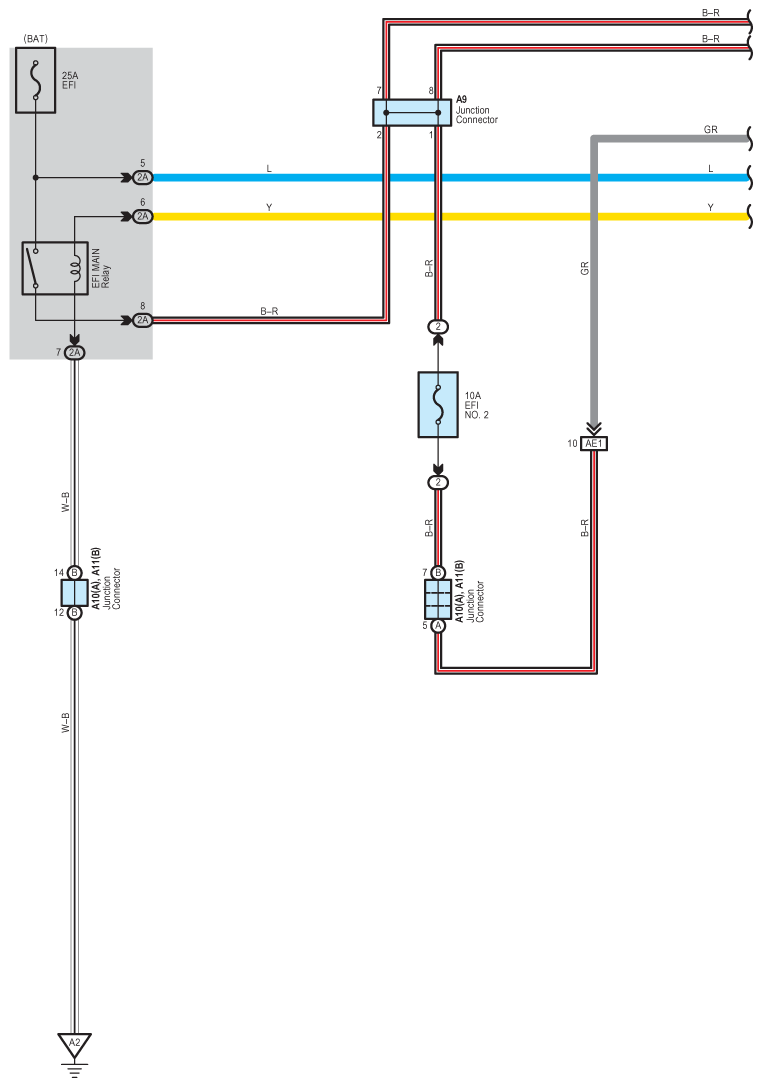

Fig 3: ECT And A/T Indicator For 3GR-FSE System Wiring Diagram (3 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

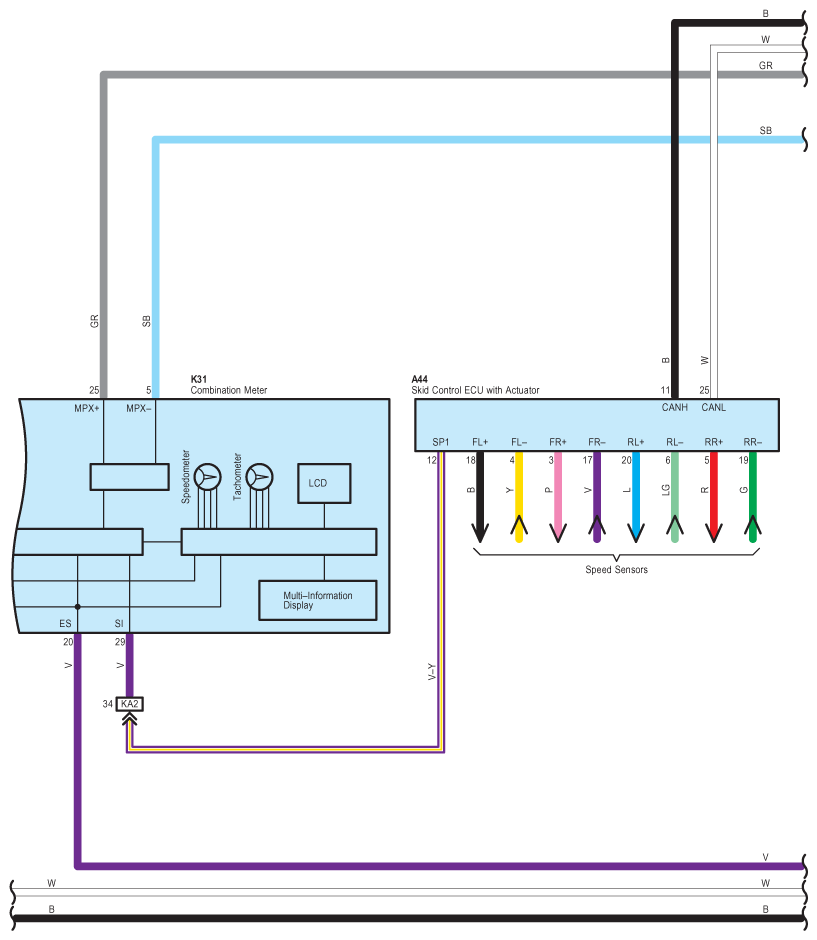

Fig 4: ECT And A/T Indicator For 3GR-FSE System Wiring Diagram (4 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

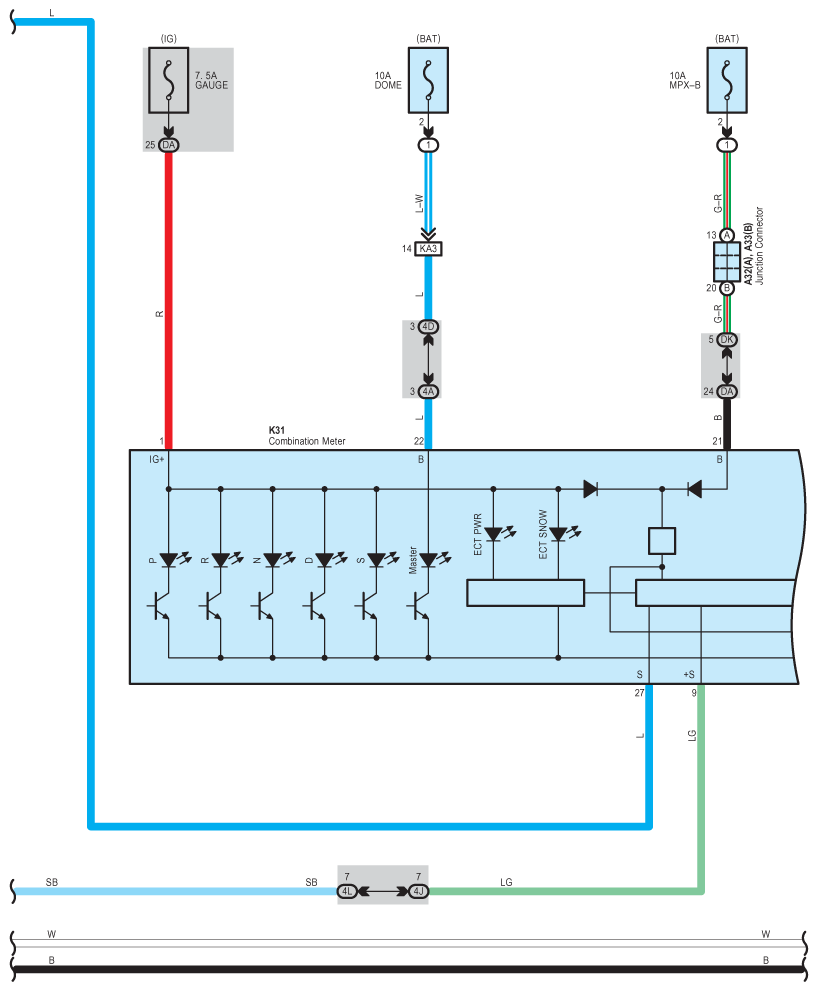

Fig 5: ECT And A/T Indicator For 3GR-FSE System Wiring Diagram (5 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

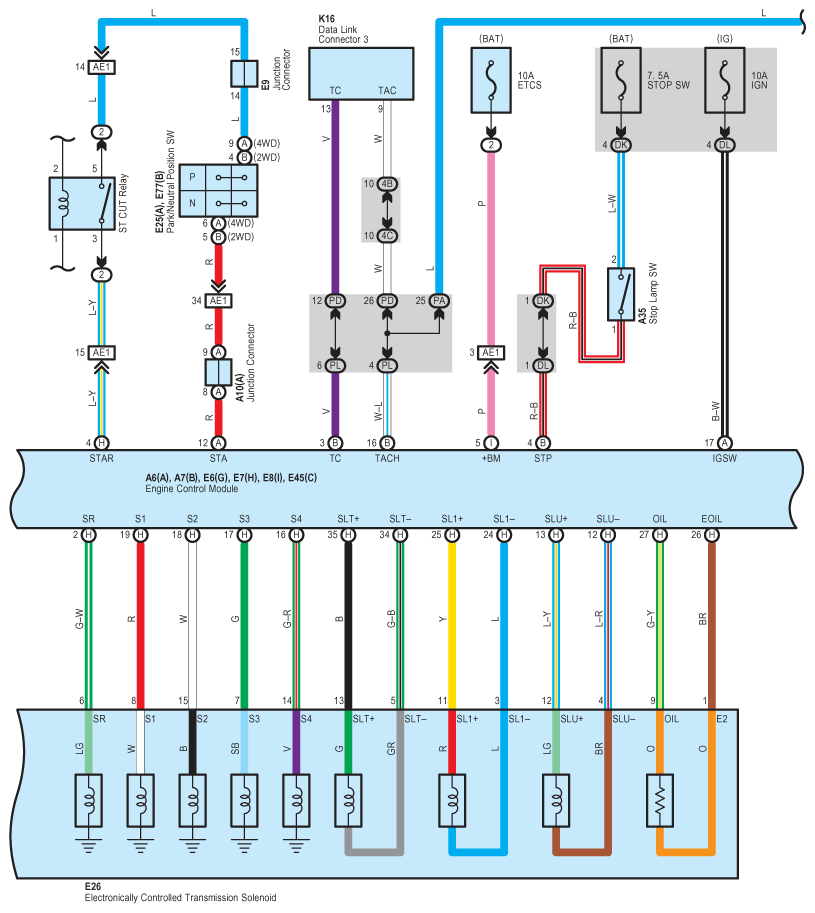

Fig 6: ECT And A/T Indicator For 3GR-FSE System Wiring Diagram (6 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

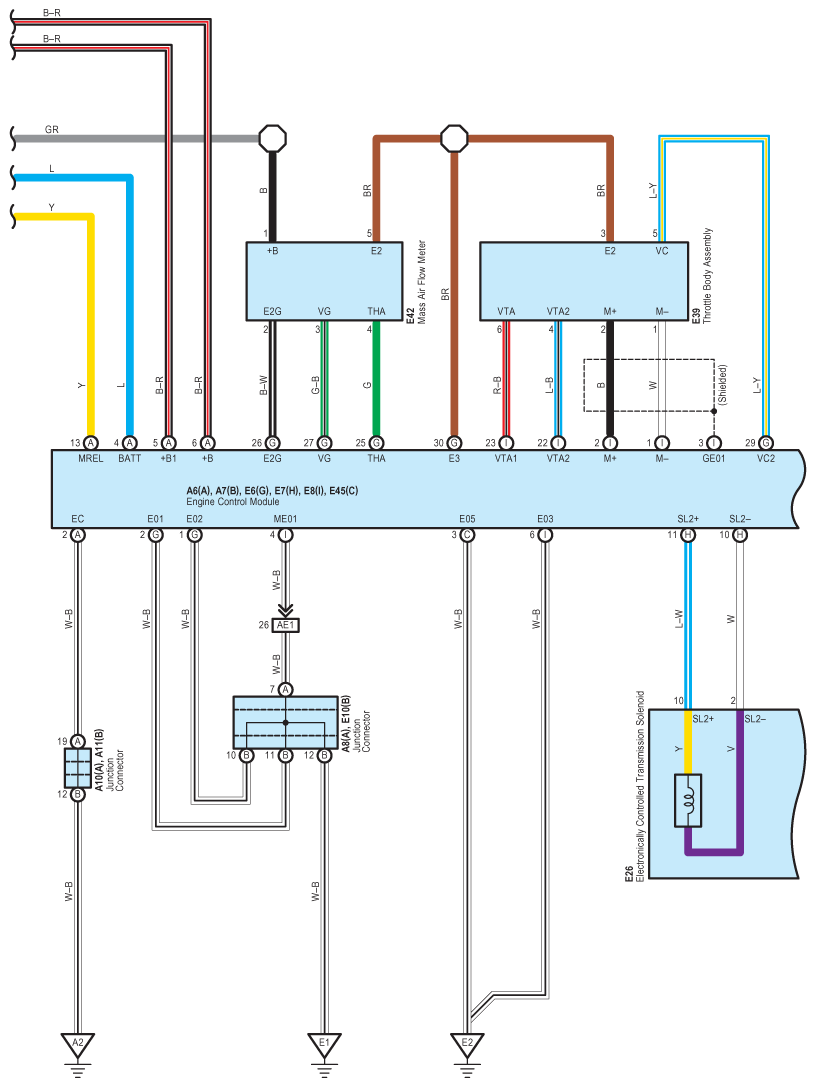

Fig 7: ECT And A/T Indicator For 3GR-FSE System Wiring Diagram (7 Of 10)

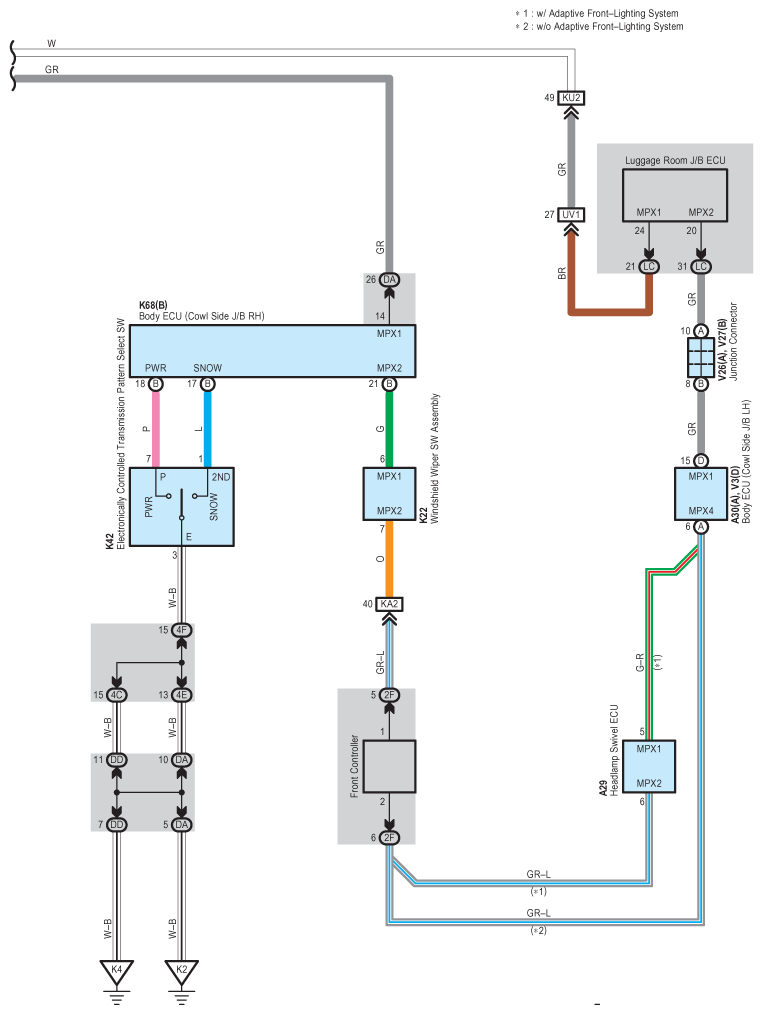

Fig 8: ECT And A/T Indicator For 3GR-FSE System Wiring Diagram (8 Of 10)

Fig 9: ECT And A/T Indicator For 3GR-FSE System Wiring Diagram (9 Of 10)

Fig 10: ECT And A/T Indicator For 3GR-FSE System Wiring Diagram (10 Of 10)
