Seat Memory Switch: Removal

HINT:

Use the same procedures for the RH and LH side.

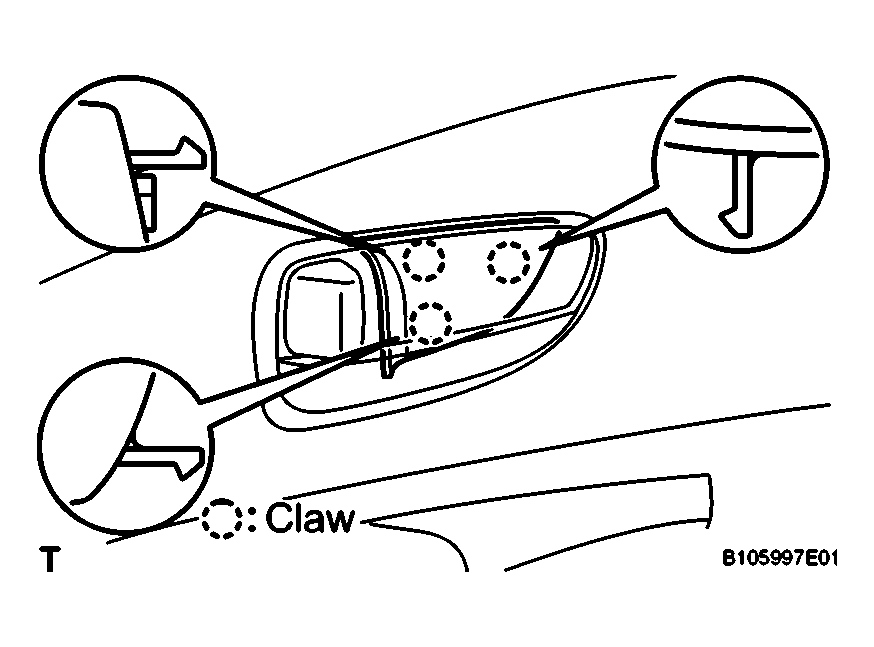

1. REMOVE DOOR INSIDE HANDLE BEZEL
   1. Using a screwdriver, detach the 3 claws and remove the bezel.

      HINT:

      Tape the screwdriver tip before use.

      Fig 1: Identifying Door Inside Handle Bezel

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. REMOVE FRONT DOOR TRIM PANEL ASSEMBLY

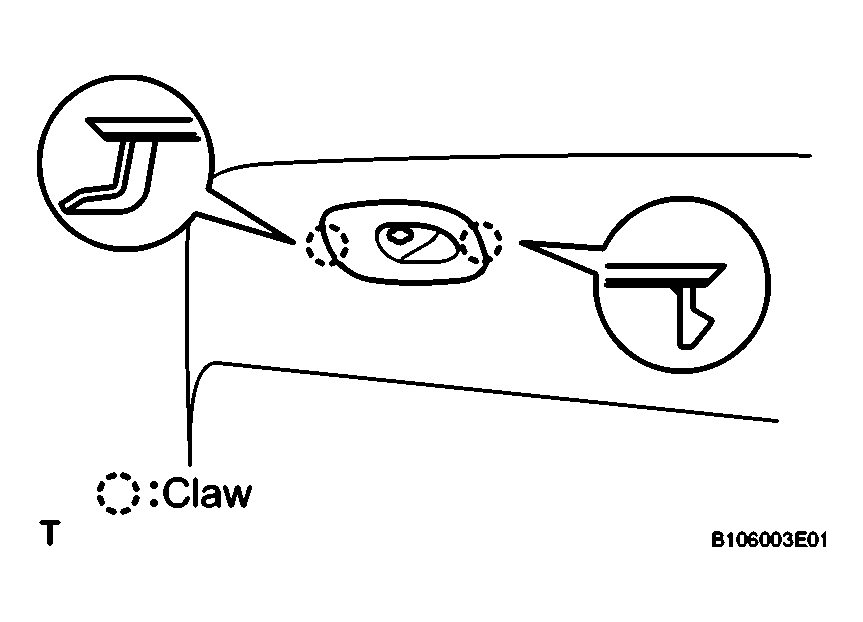

   1. Detach the 2 claws and remove the trim lower cover.
      Fig 2: Identifying Front Door Trim Panel Assembly

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

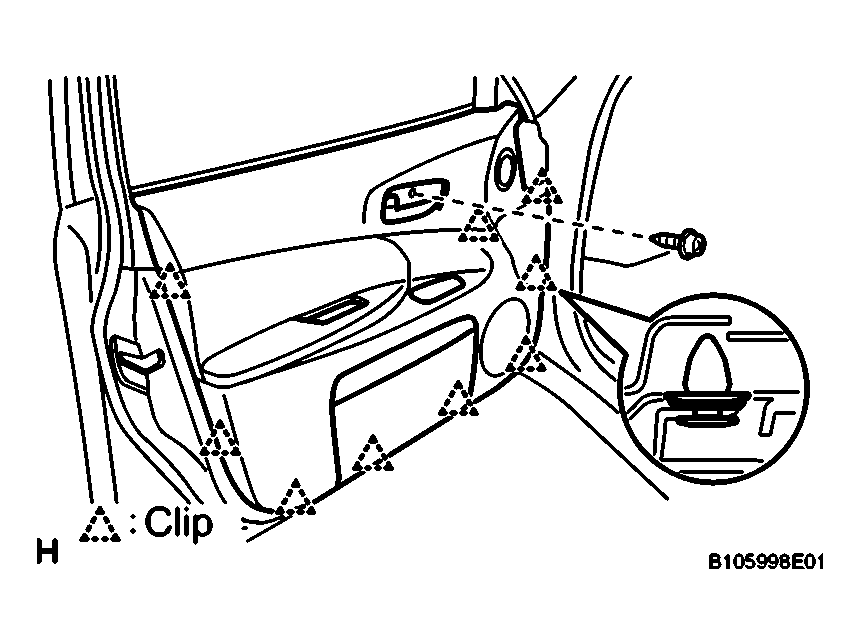

   2. Remove the screw.
   3. Using a clip remover, detach the 9 clips and remove the trim cover.
      Fig 3: Identifying Trim Cover

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

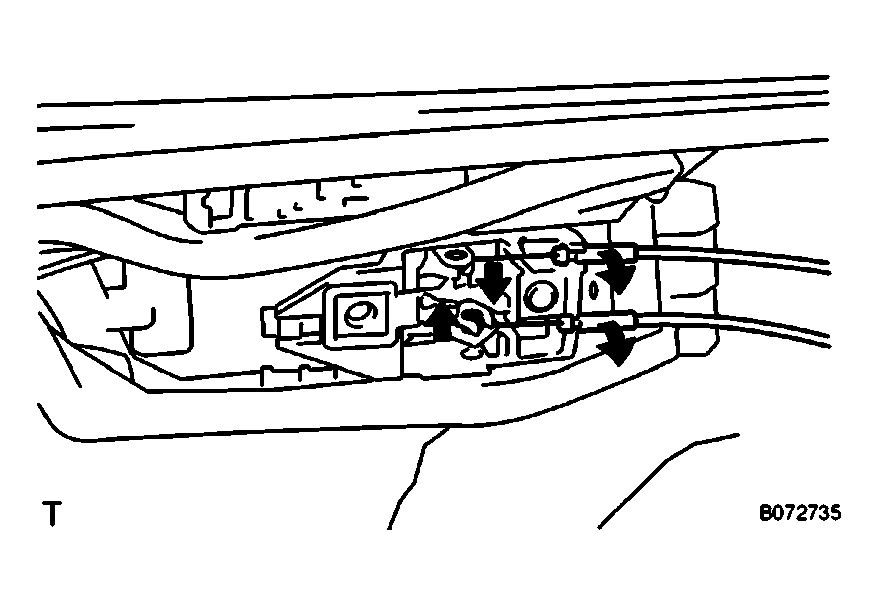

   4. Disconnect the 2 cables from the inside handle.
      Fig 4: Identifying Cables From Inside Handle

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. REMOVE SEAT MEMORY SWITCH LH
   1. Disconnect the connector.
   2. Remove the 2 screws and memory switch.
      Fig 5: View Of Screws And Memory Switch

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
