Seat Memory Switch: Inspection

  1. INSPECT SEAT MEMORY SWITCH LH
    1. Measure the resistance of the switch.

      Standard resistance

      TESTER CONNECTION AND SPECIFIED CONDITION

      Tester Connection Switch Condition Specified Condition
      2 (M1) - 5 (E) M1 switch pressed Below 1 Ω
      3 (M2) - 5 (E) M2 switch pressed Below 1 Ω
      4 (M3) - 5 (E) M3 switch pressed Below 1 Ω
      1 (MRY) - 5 (E) SET switch pressed Below 1 Ω

      If the result is not as specified, replace the switch.

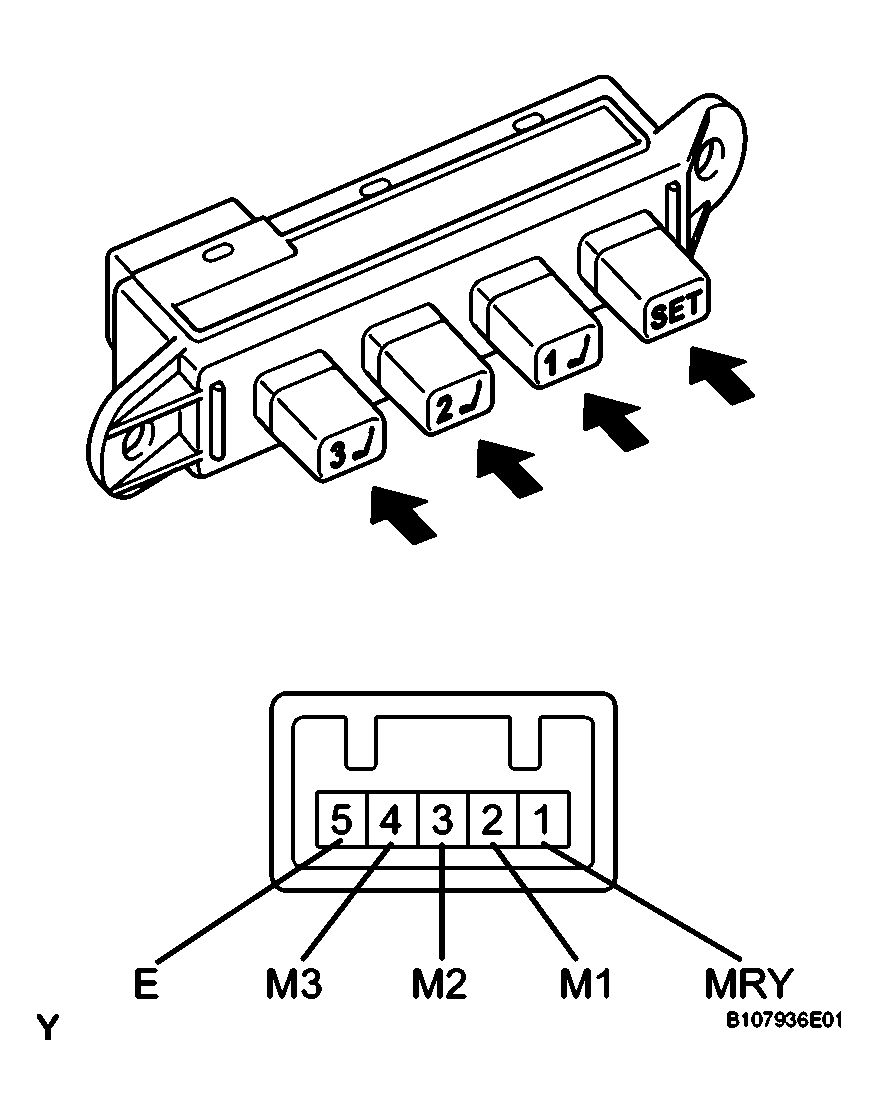

      Fig 1: Identifying Seat Memory Switch LH And Connector Terminals (1 Of 2)
      G04023430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSPECT SEAT MEMORY SWITCH RH
    1. Measure the resistance of the switch.

      Standard resistance

      TESTER CONNECTION AND SPECIFIED CONDITION

      Tester Connection Switch Condition Specified Condition
      2 (1) - 5 (E) M1 switch pressed Below 1 Ω
      3 (2) - 5 (E) M2 switch pressed Below 1 Ω
      4 (3) - 5 (E) M3 switch pressed Below 1 Ω
      1 (MMRY) - 5 (E) SET switch pressed Below 1 Ω

      If the result is not as specified, replace the switch.

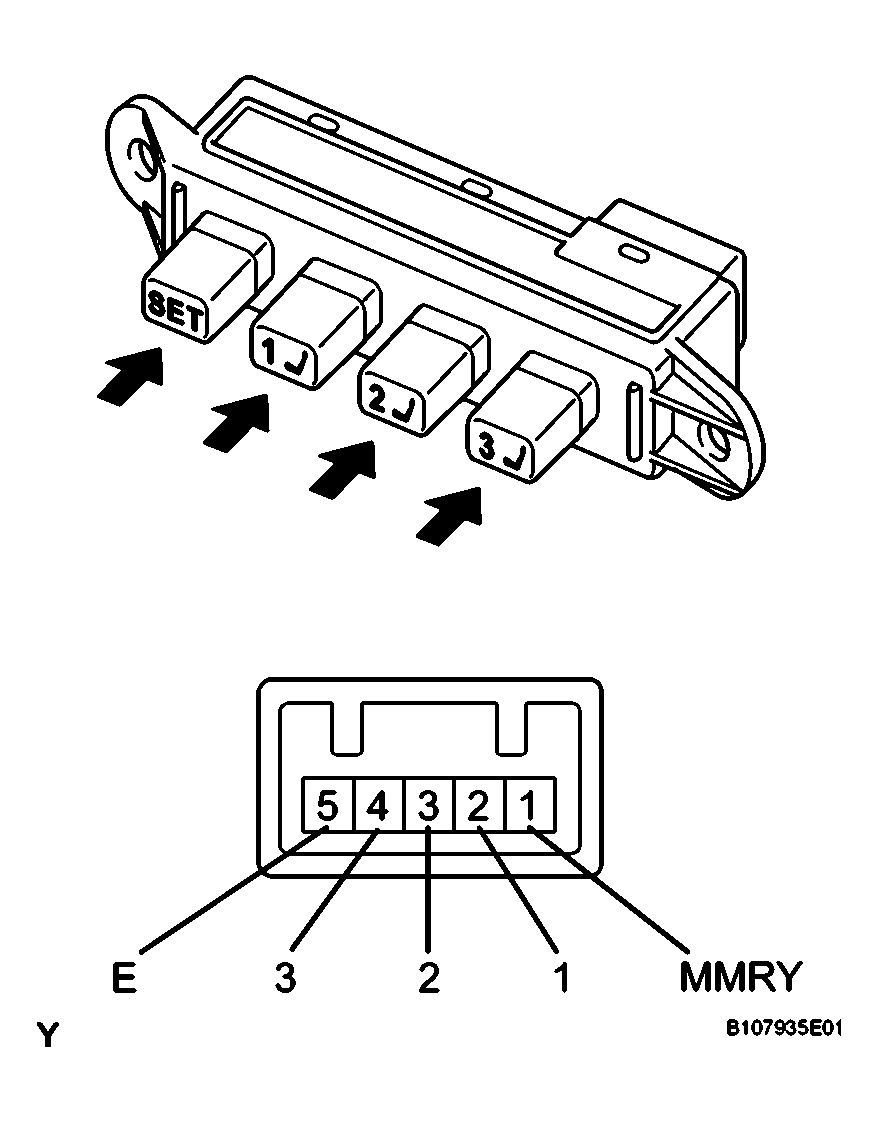

      Fig 2: Identifying Seat Memory Switch LH And Connector Terminals (2 Of 2)
      G04023431Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
